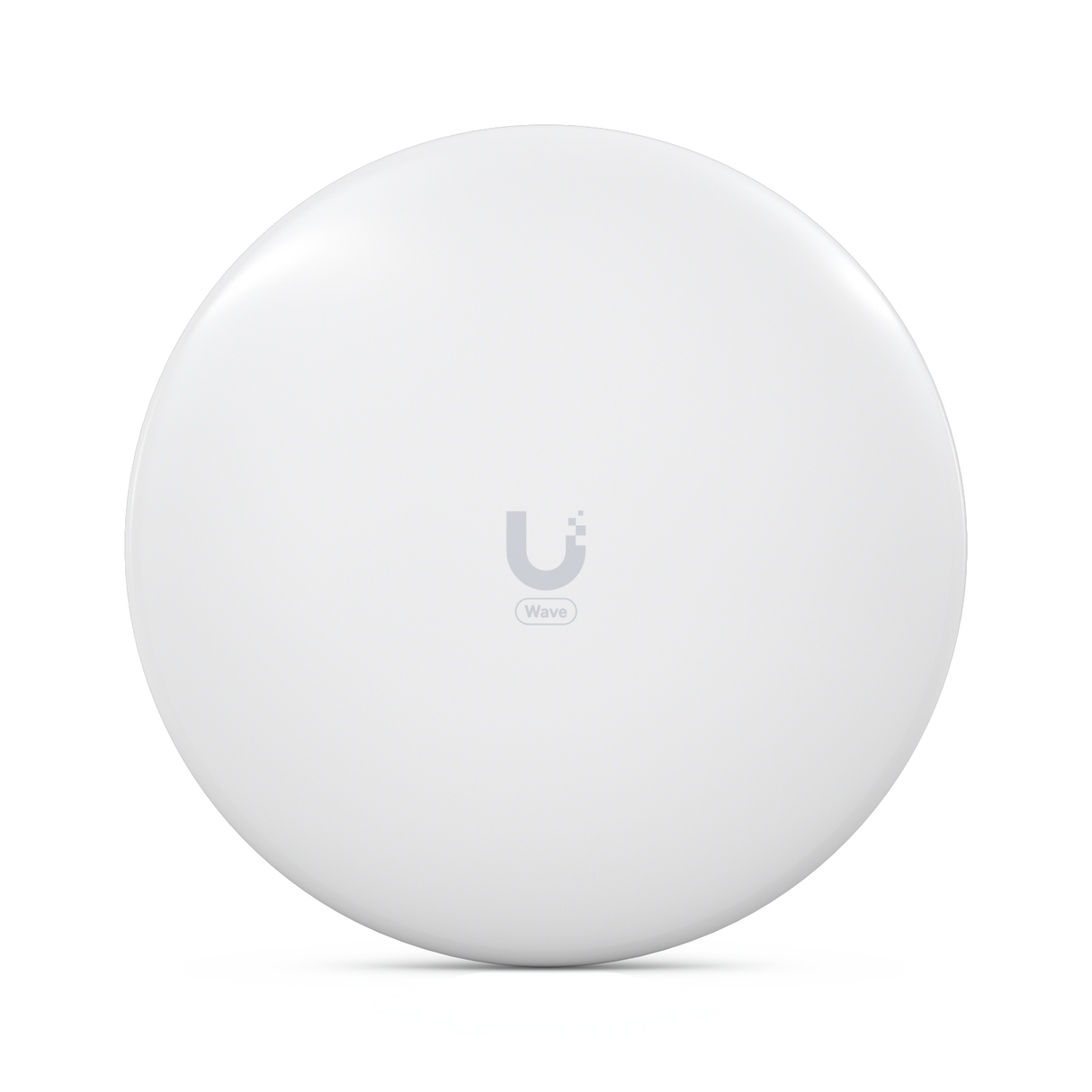

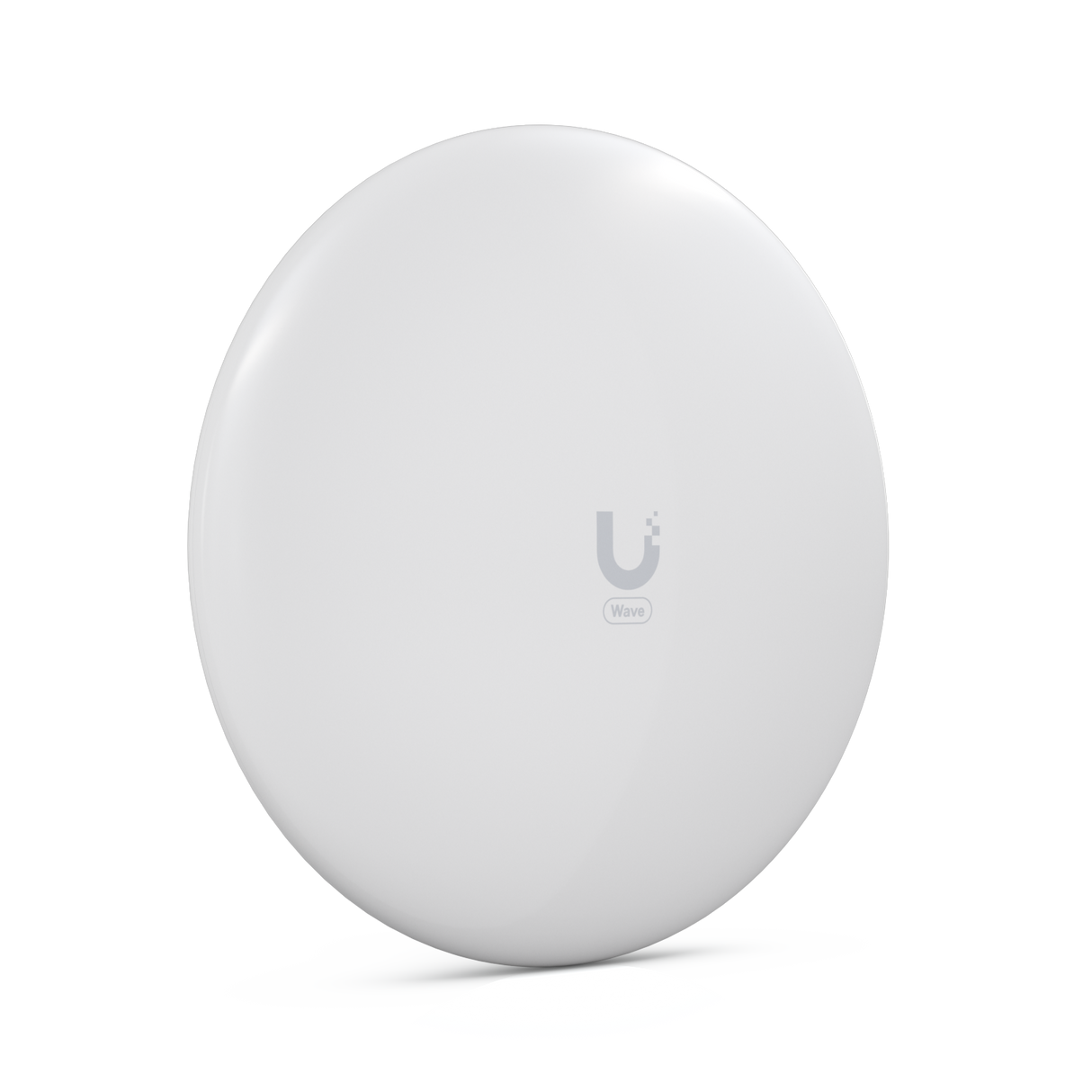

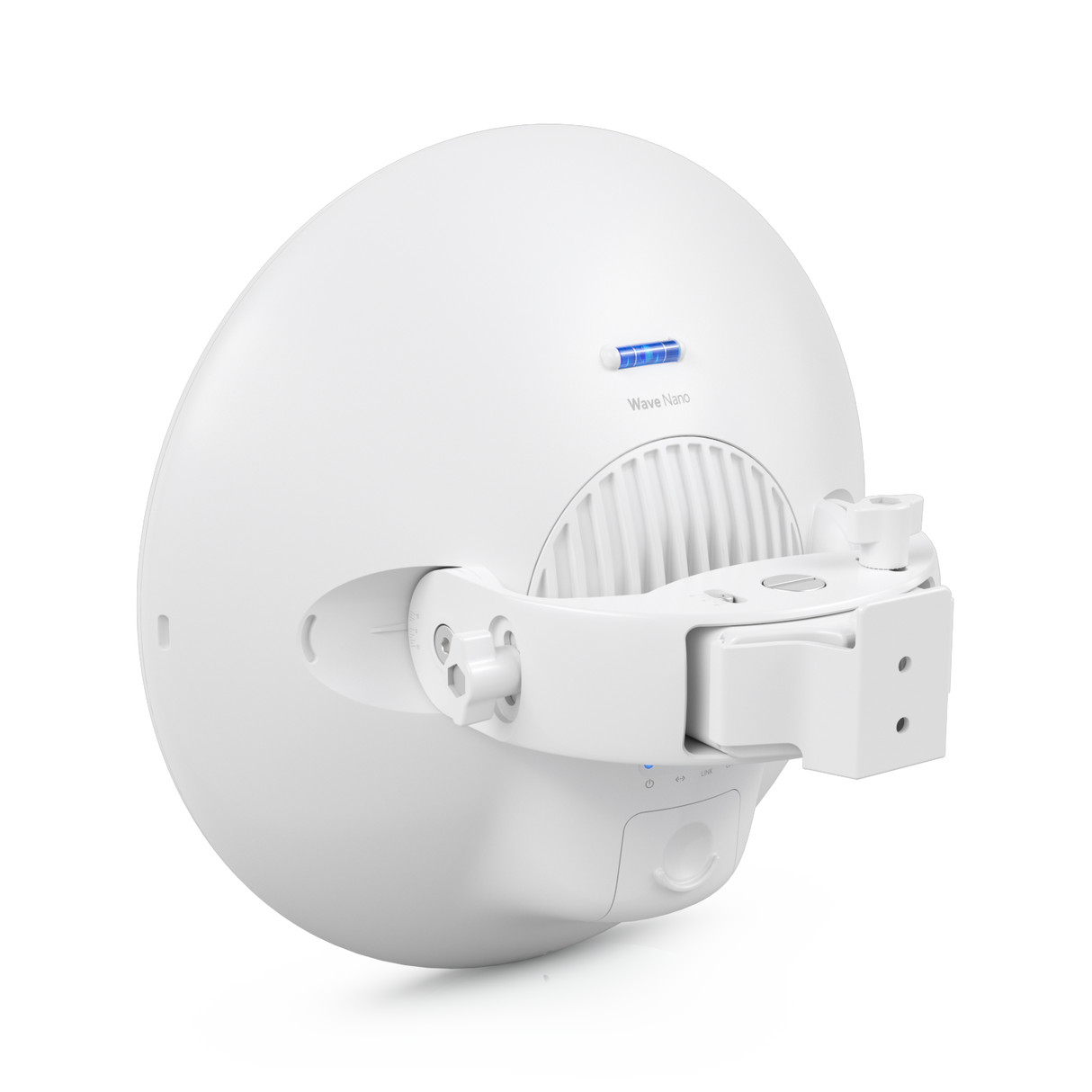

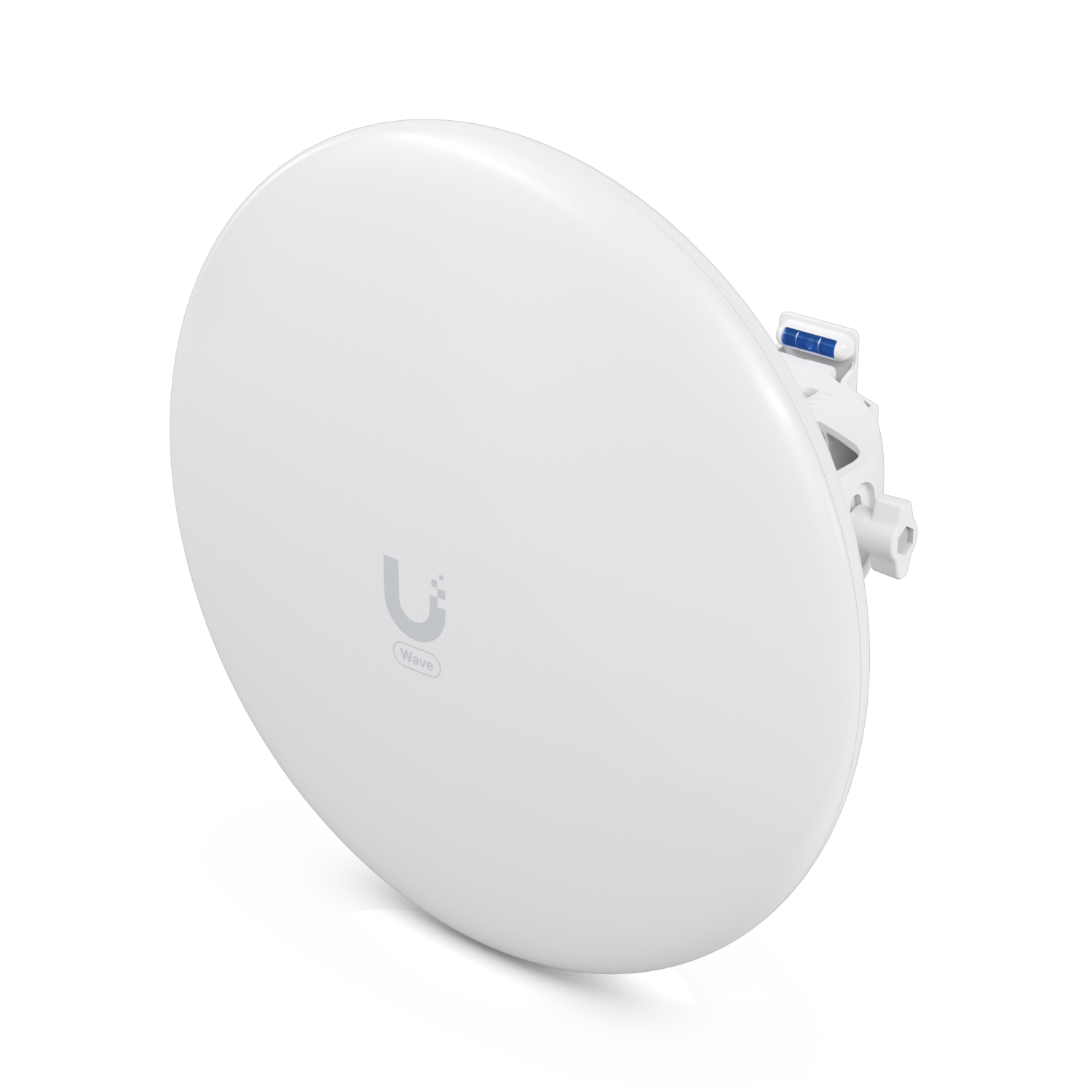

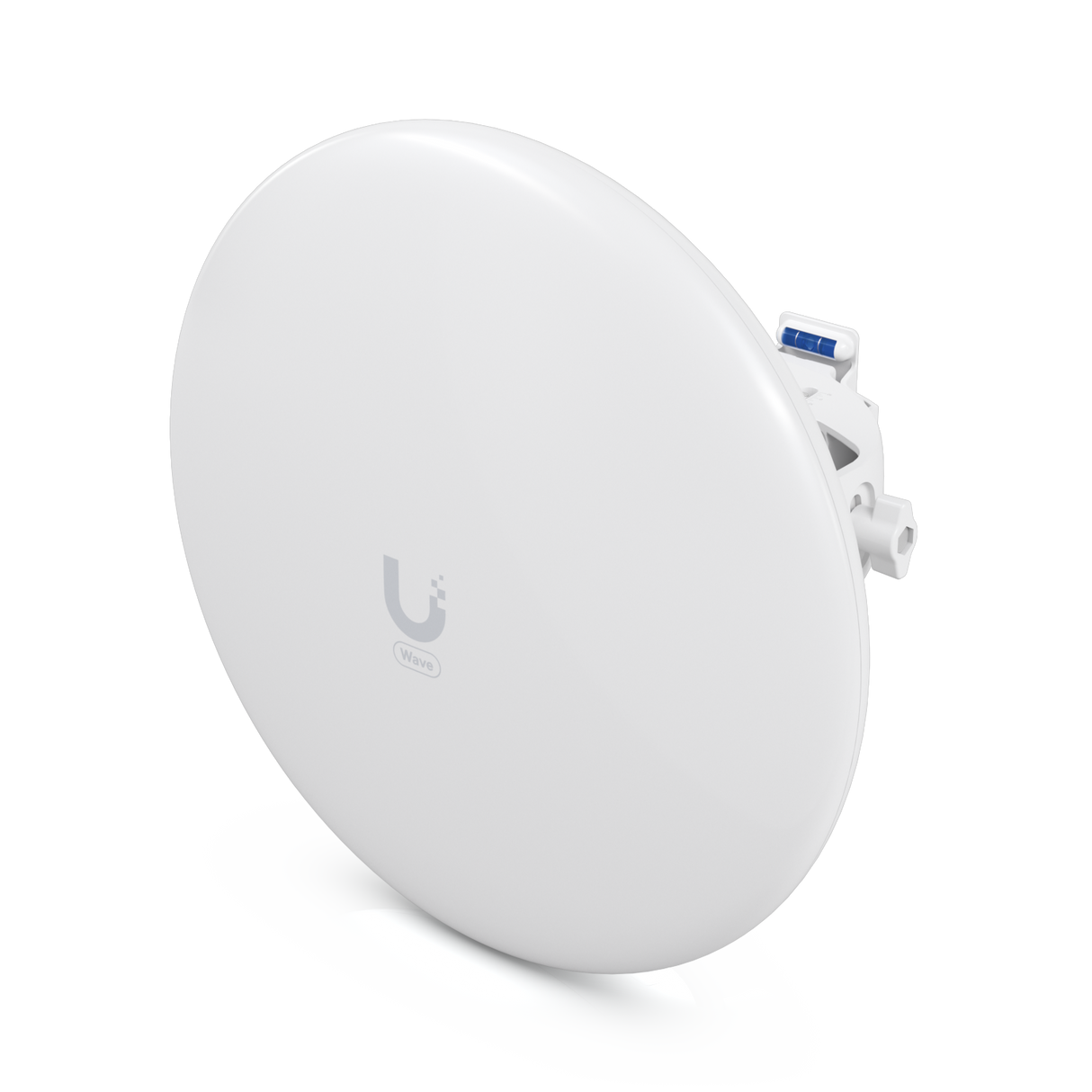

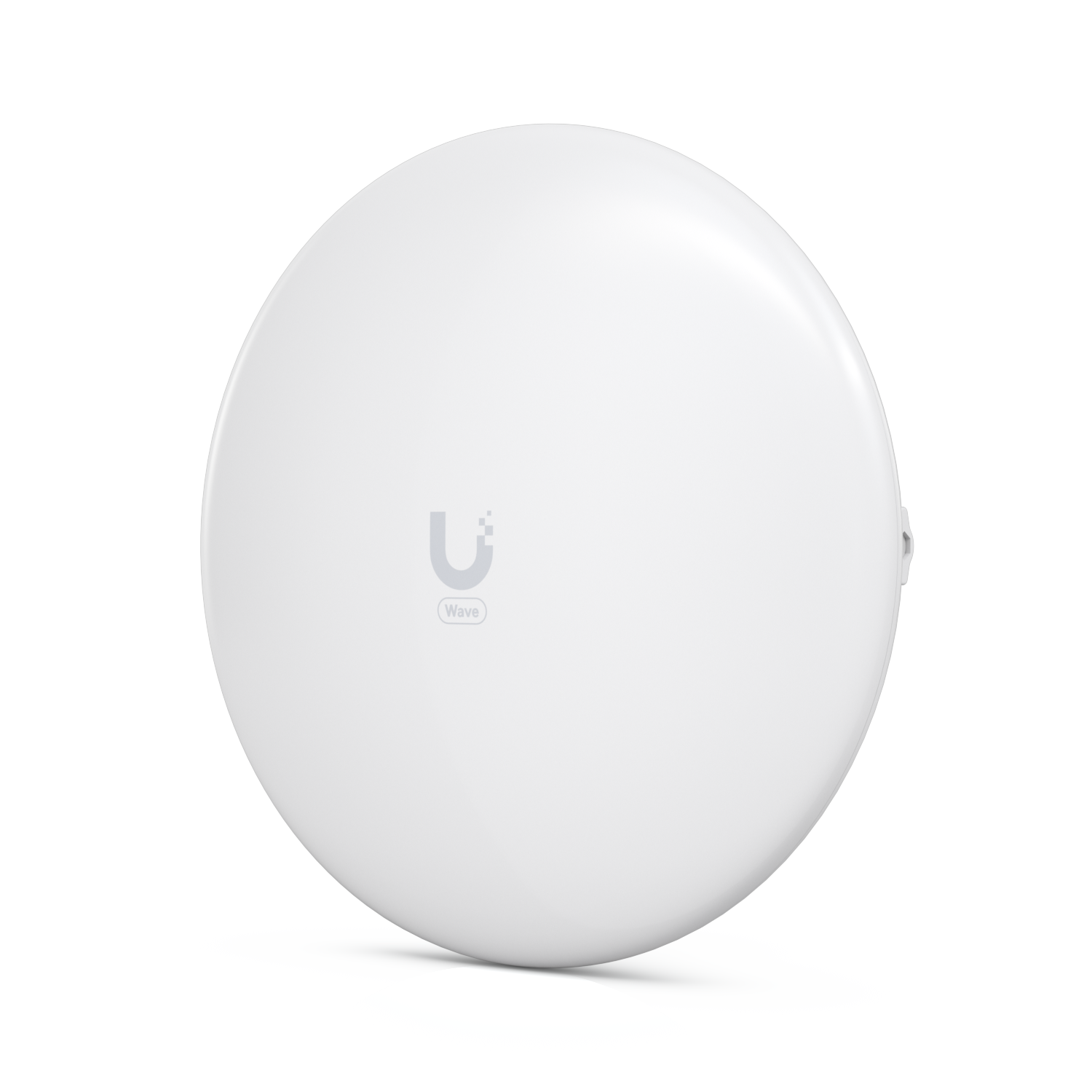

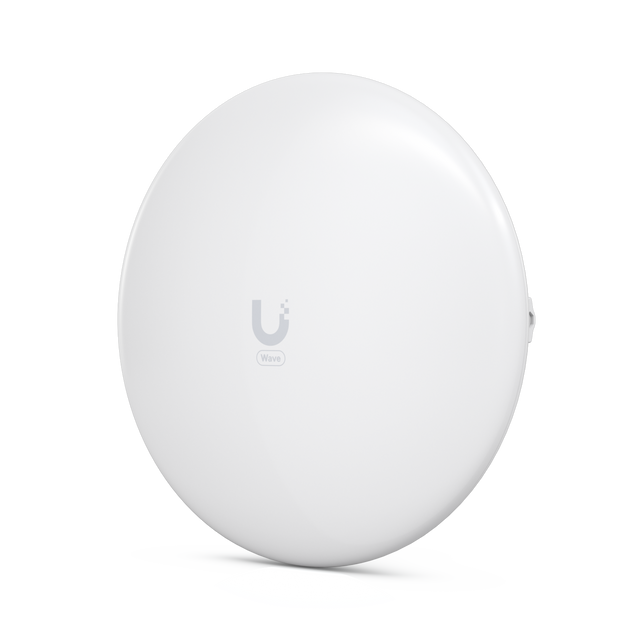

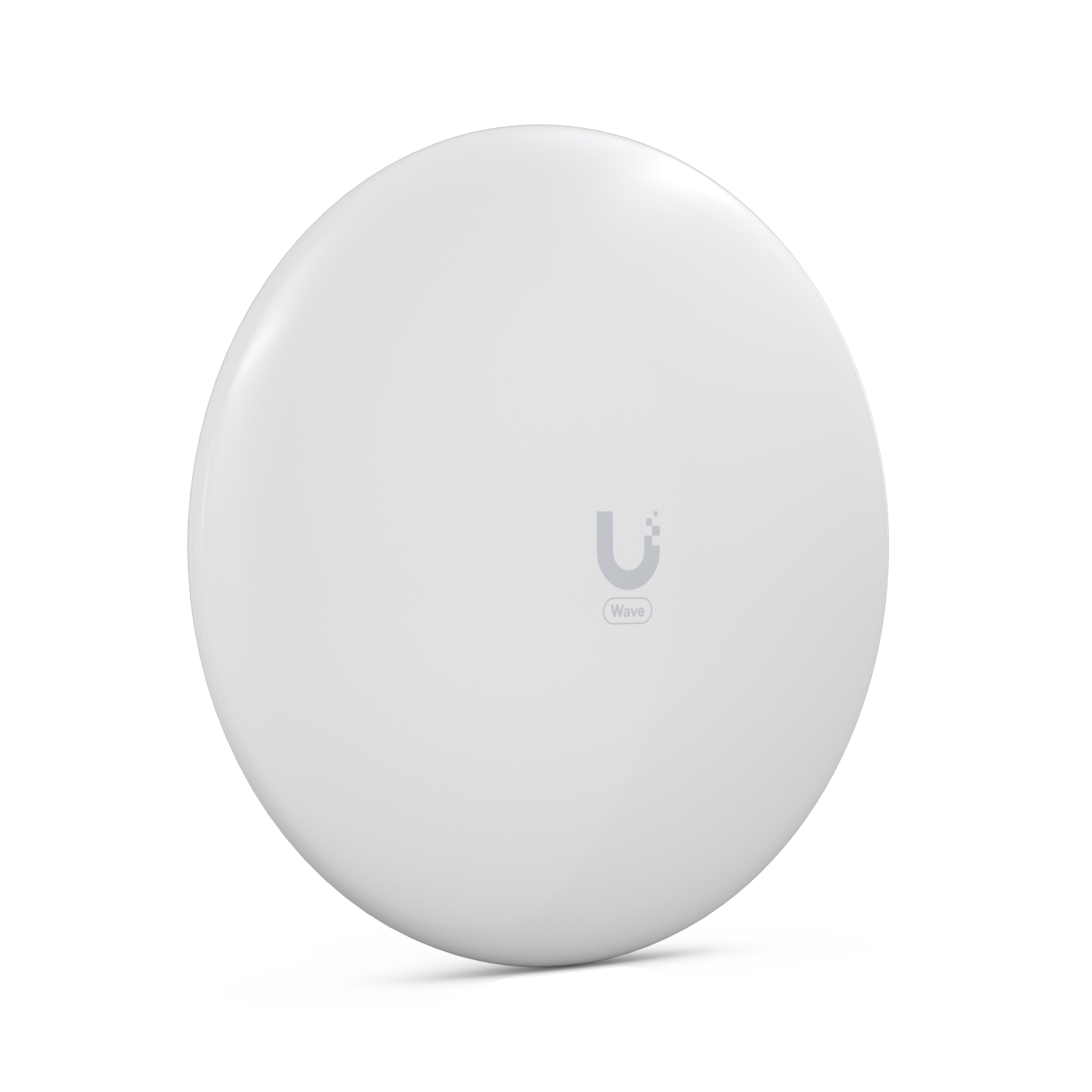

Ubiquiti Wave Nano
Ubiquiti | SKU:
WAVE-NANO-US
Regular price
$279.00
Unit price
Ubiquiti Wave Nano is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
We ship using the Common Carriers in the USA.
Ubiquiti Wave Nano
Regular price
$279.00
Unit price
Ubiquiti Wave Nano is backordered and will ship as soon as it is back in stock.
Description
Description
60 GHz PtMP station powered by Wave Technology.
Key Features
- Max. link range:
- — Wave AP: 5 km
- — Wave AP Micro: 4 km
- Max. total throughput: 2 Gbps
- 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
- (1) GbE RJ45 port
- Integrated GPS & Bluetooth

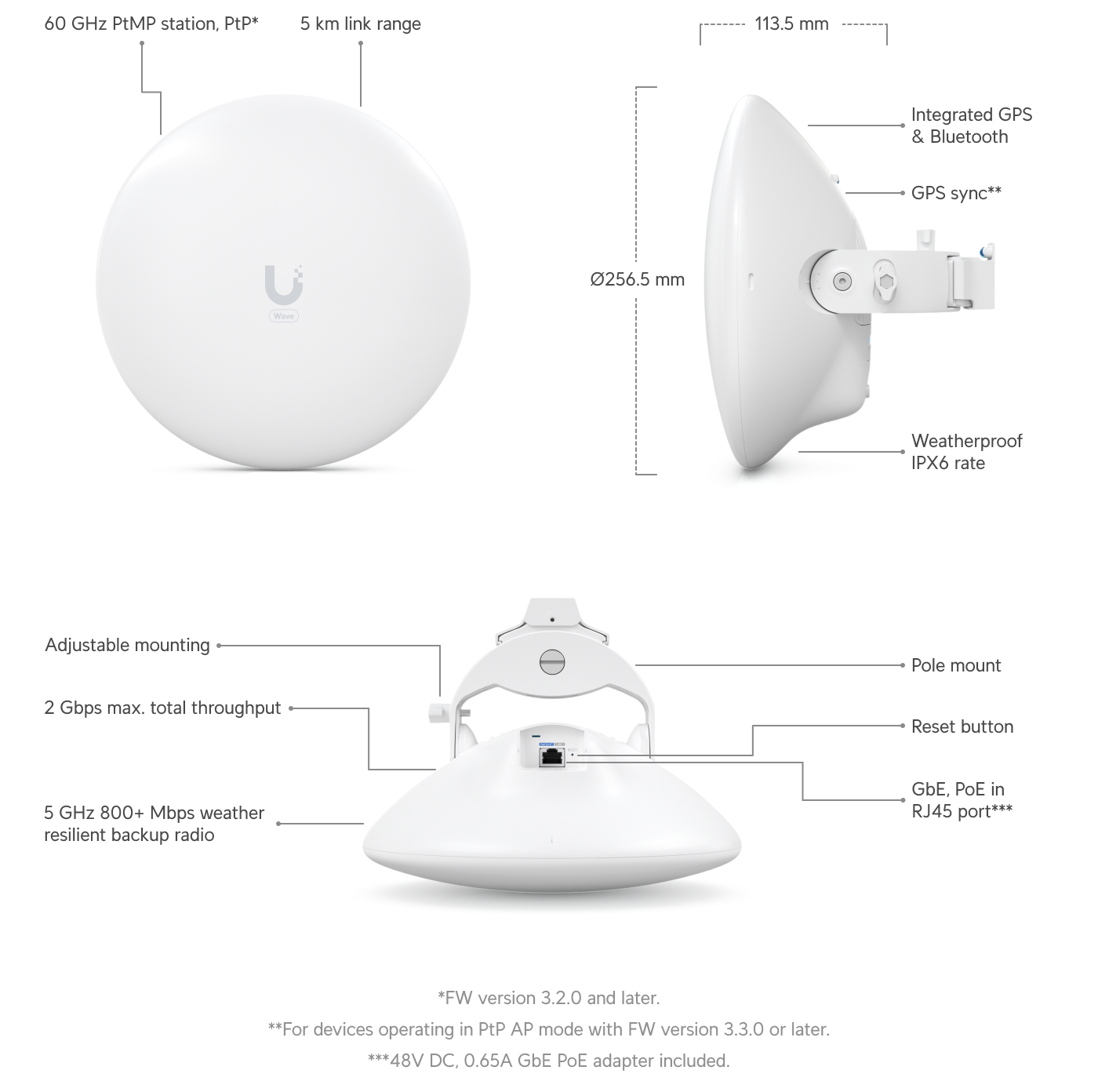

Mechanical
Dimensions
⌀256.5 x 113.5 mm
(⌀10.1 x 4.5")
Weight
Without mount: 932 g (2.1 lb)
With mount: 1.2 kg (2.6 lb)
Enclosure Material
Aluminum alloy, UV stabilized polycarbonate
Mount Material
Aluminum alloy, UV stabilized polycarbonate

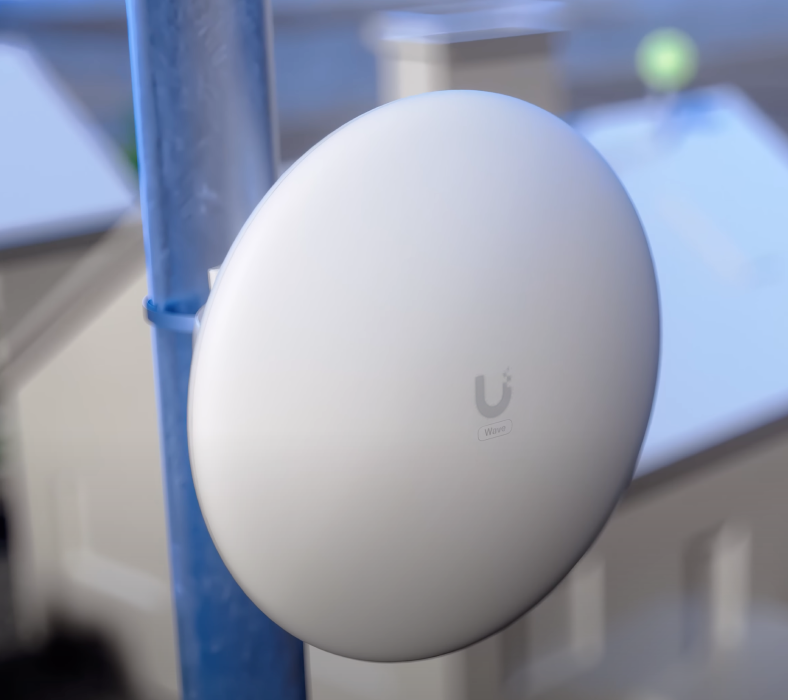

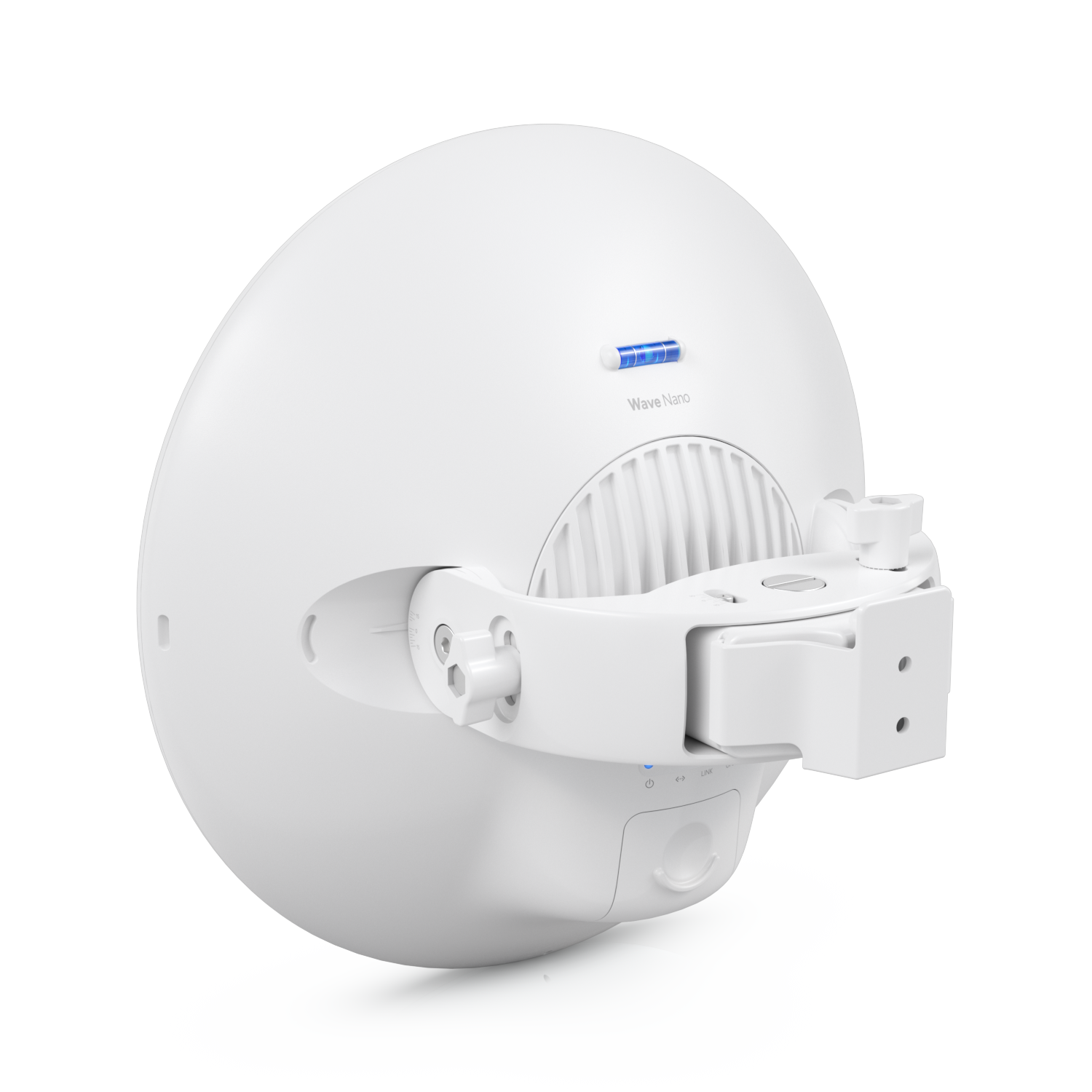

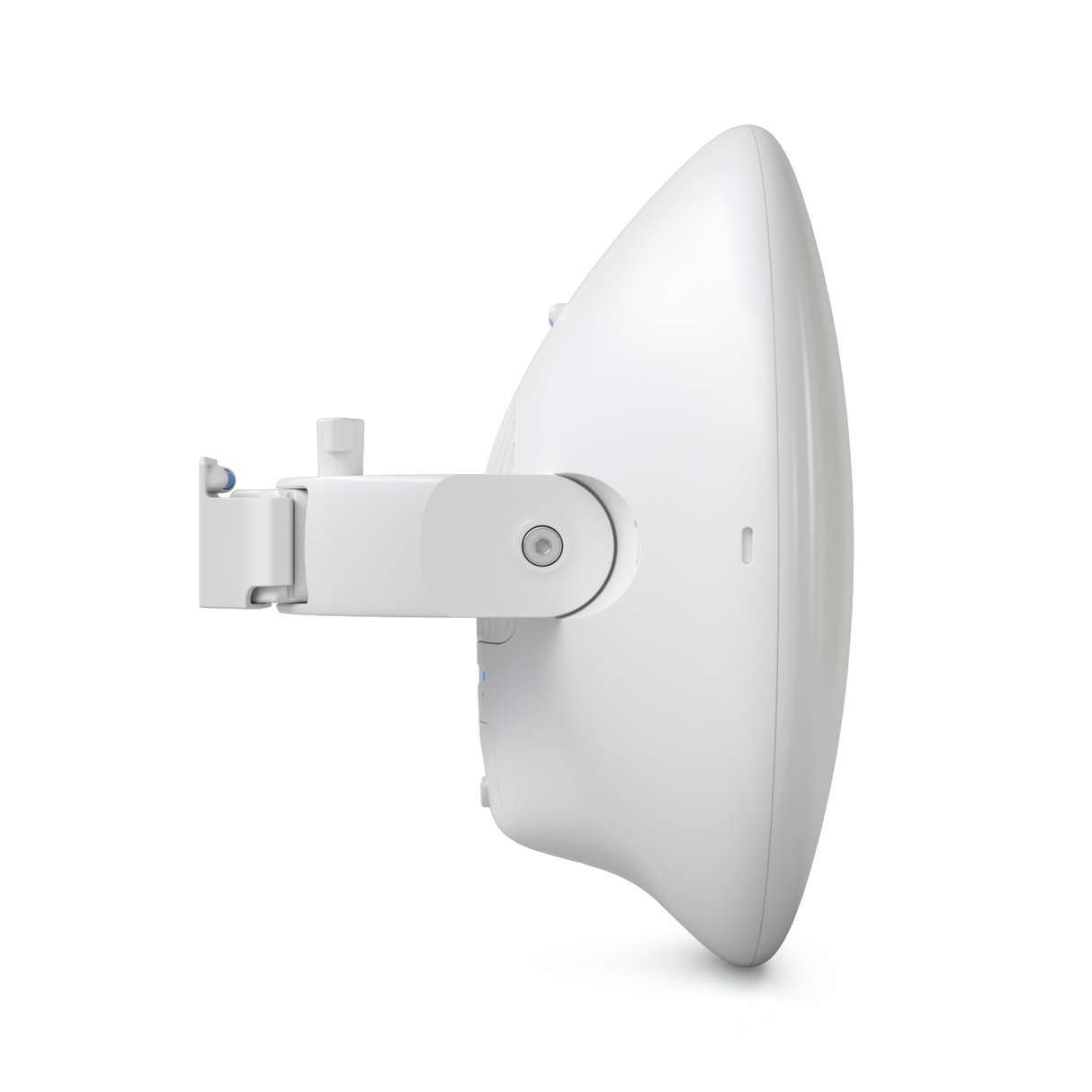

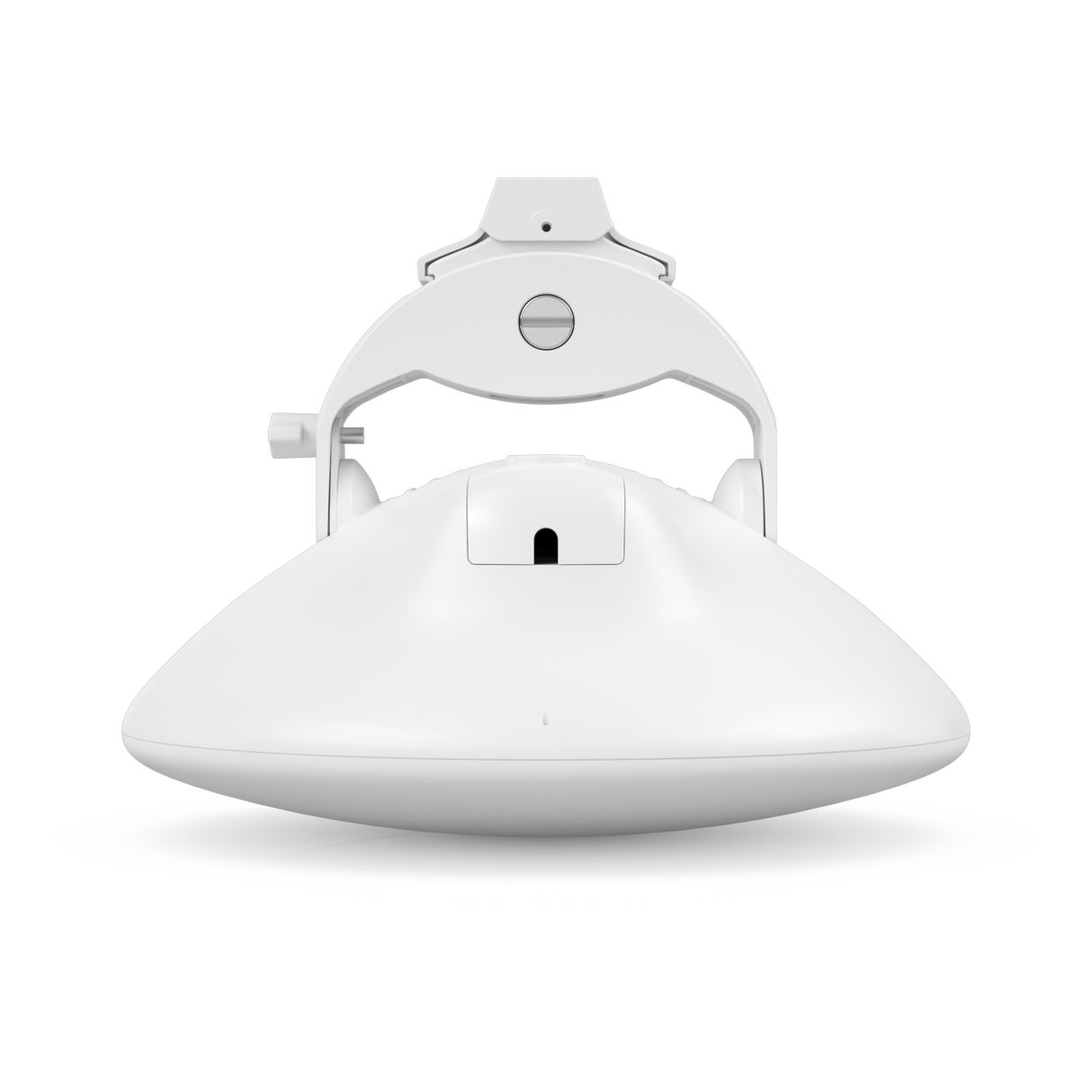

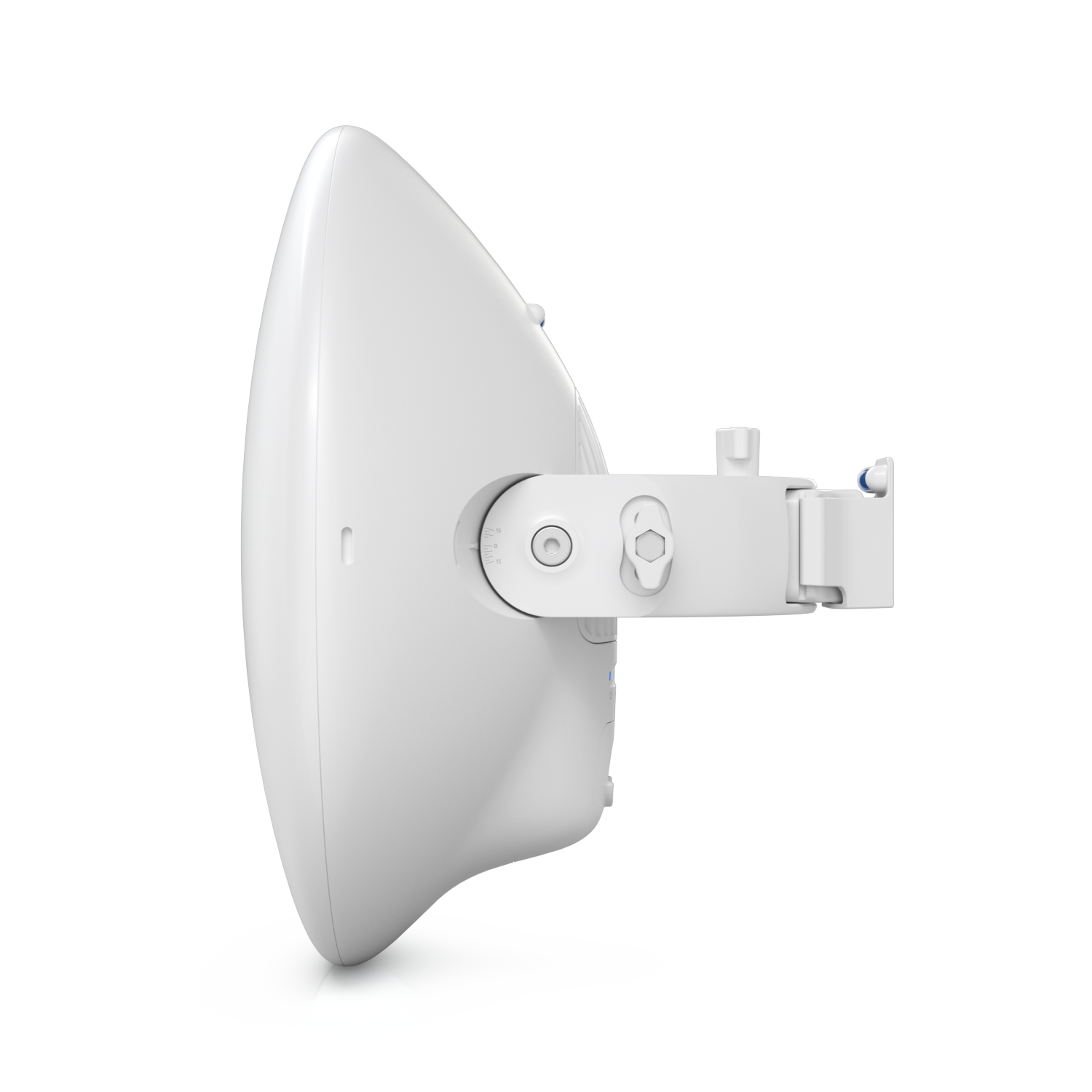

Mounting

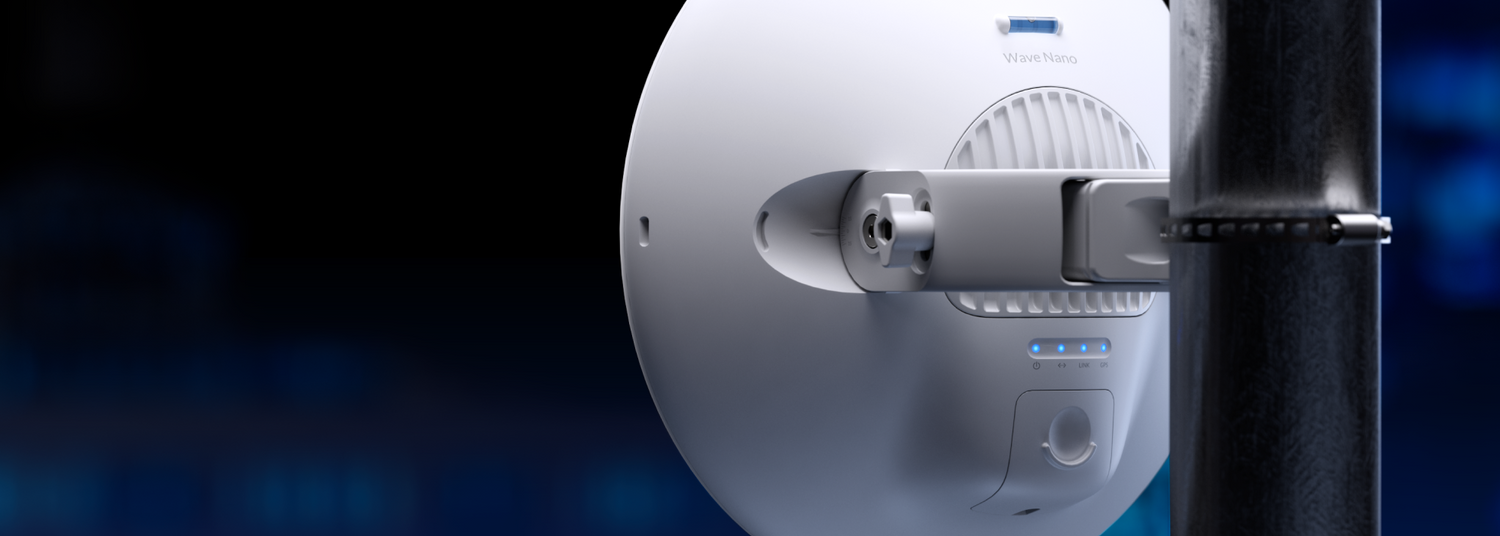

Pole Mount
Pole Mount Diameter
25 to 63.5 mm (1 to 2.5")
Wind Loading
127 N at 200 km/h (28.6 lbf at 125 mph)
Weatherproofing
IPX6
Hardware
Processor
Dual-core ARM® Cortex®-A53 at 1 GHz
Memory
512 MB

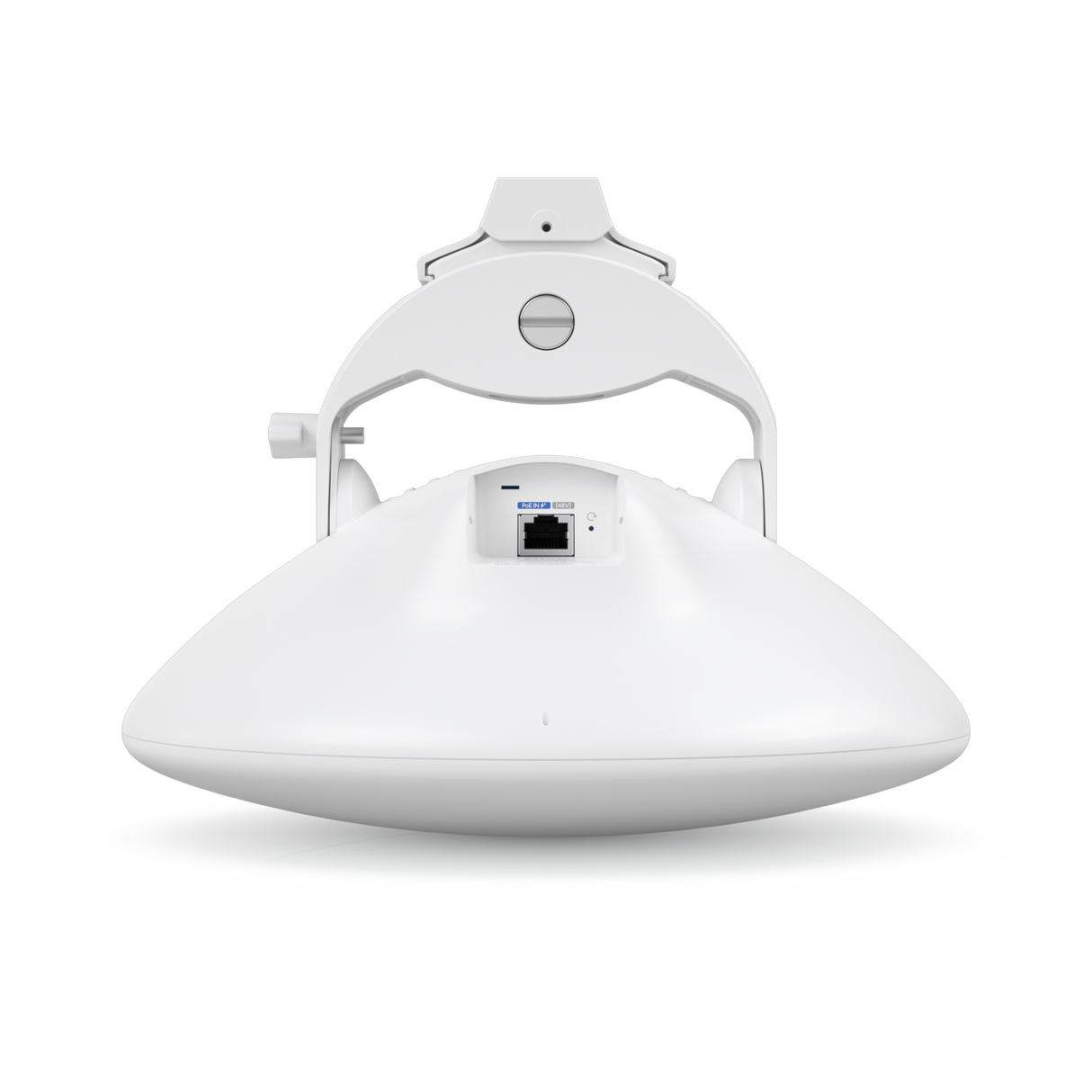

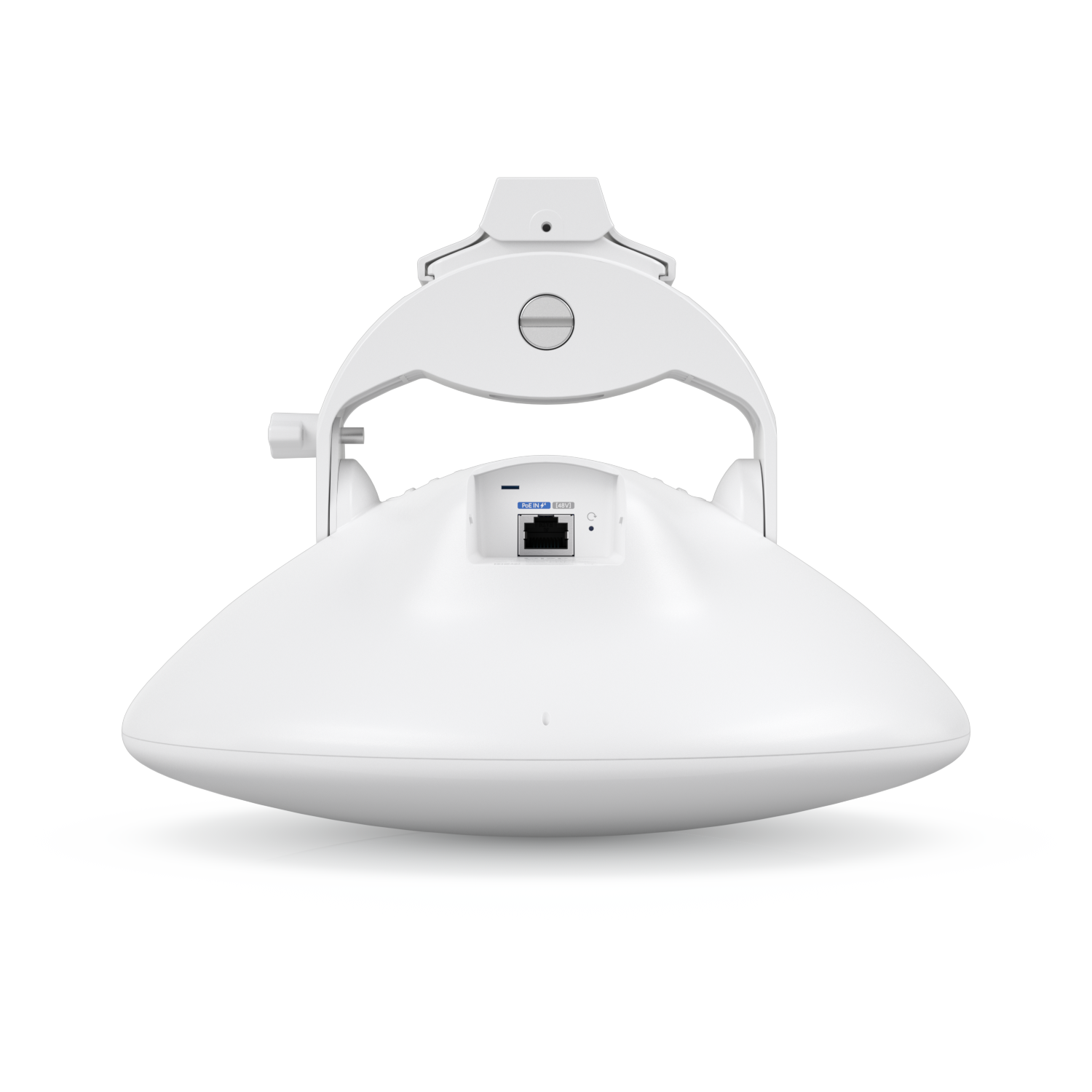

Networking Interface
(1) GbE RJ45 port
Management Interface
Max. Power Consumption
20W
Power Method
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Supported Voltage Range
44–54V DC
22–27V DC
Power Supply

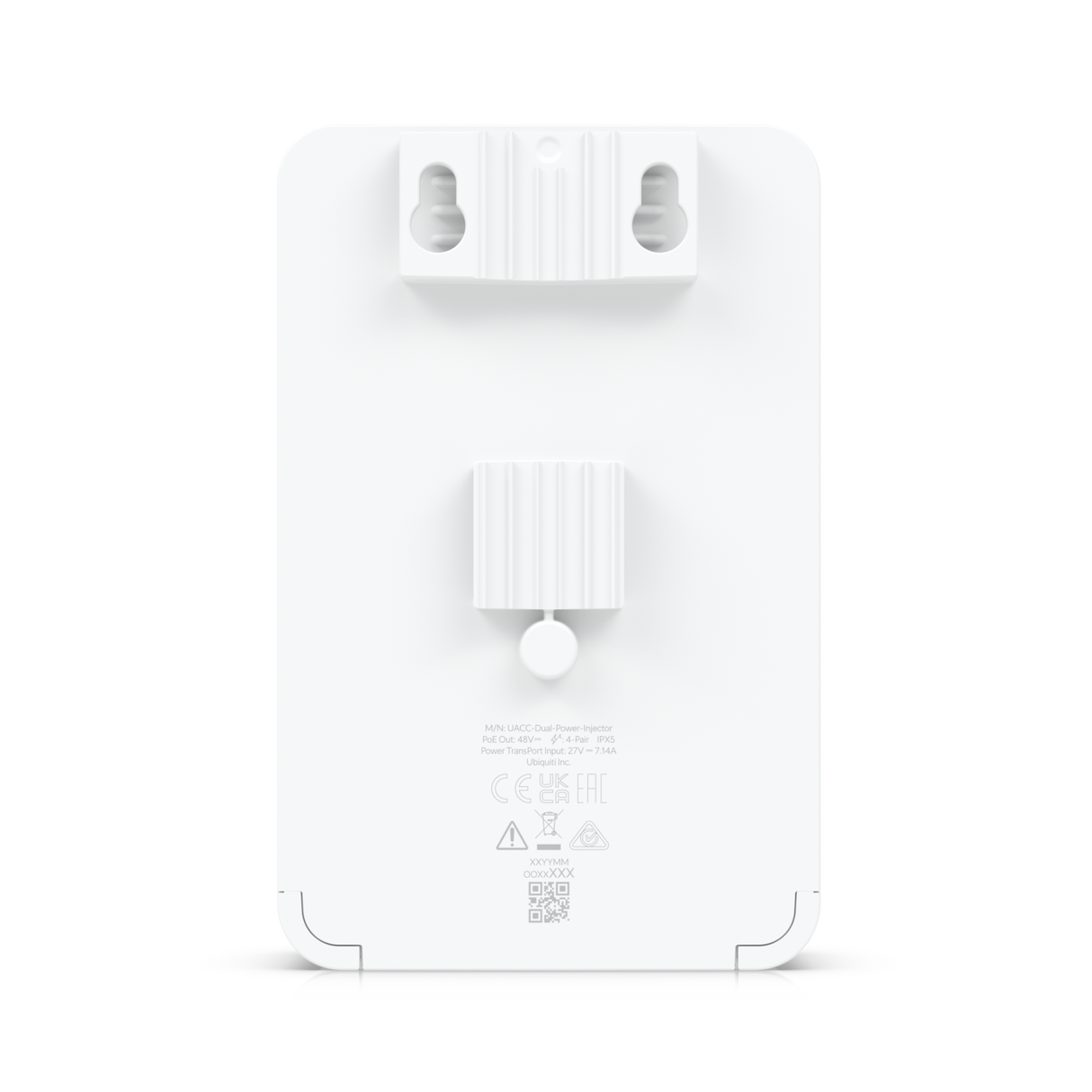

48V DC, 0.65A gigabit PoE adapter (Included)
MIMO
5 GHz
6 GHz
Max. TX Power
5 GHz
6 GHz
GPS
RF Connections
ESD Protection
Buttons
(1) Factory reset

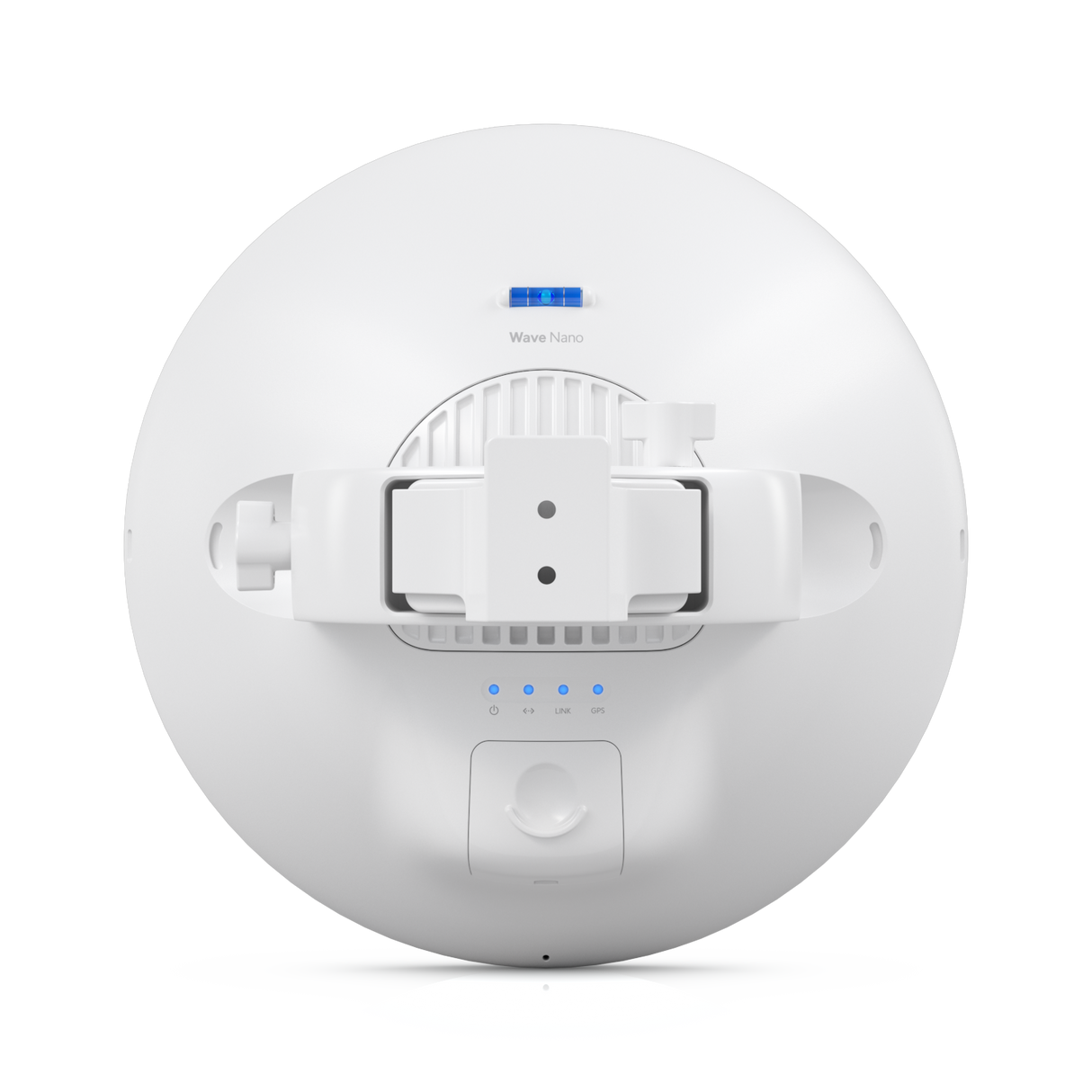

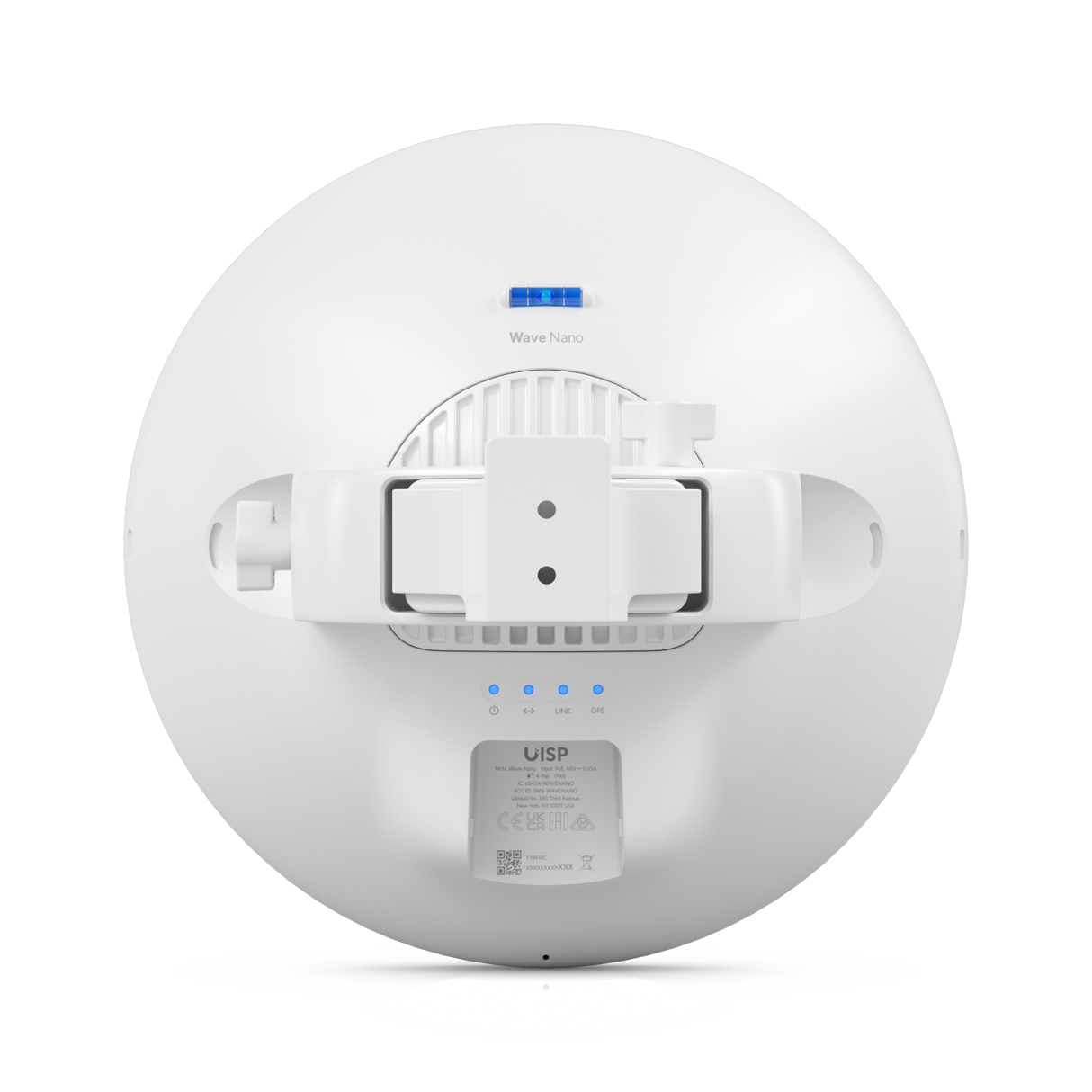

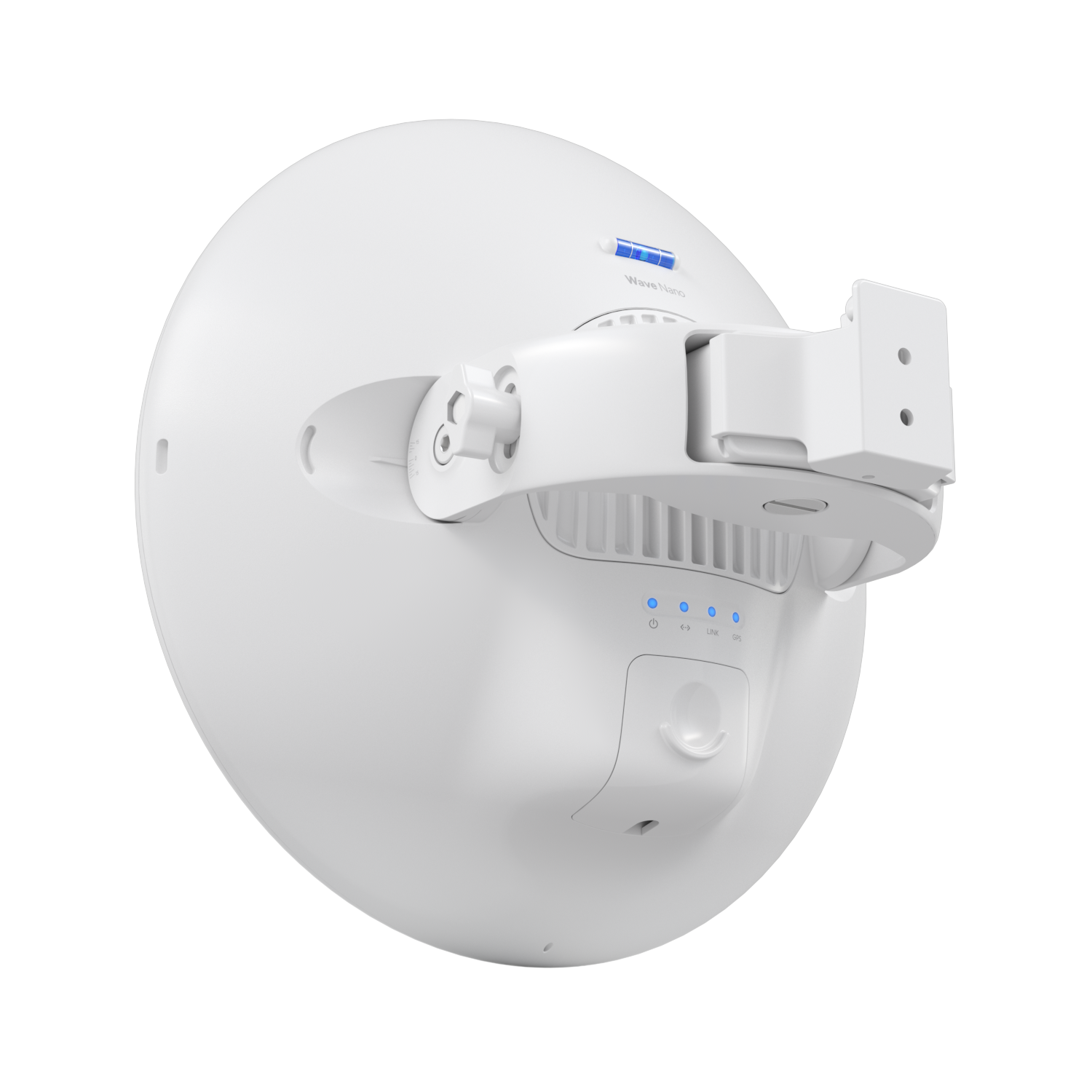

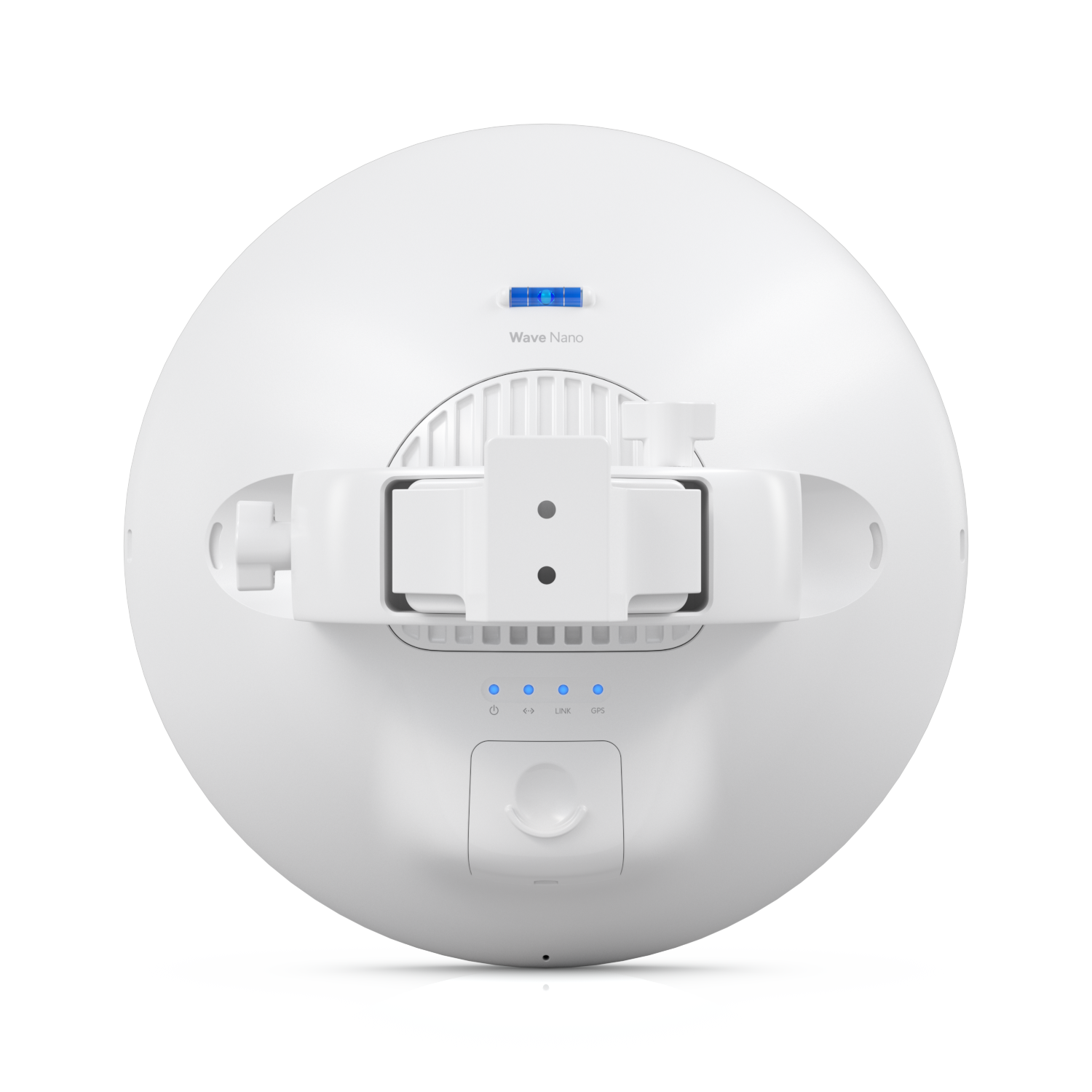

LEDs
Power
Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress
Ethernet
Flashing blue: Ethernet traffic detected
GPS
Blue: receiving at least (4) GPS satellite signal
Link
White: 5 GHz link
Blue: 60 GHz link
60G
SFP+
Light Ring
Signal Strength
Ambient Operating Temperature
-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Certifications
FCC, IC, CE
Software
Operating Modes
PtP
PtMP Station
Ubiquiti Specific Features
airMAX AC Mode
Ackless Mode
Discovery Protocol
Frequency Band Offset
30/50/60 MHz Channels
Traffic Shaping with Burst Support
Services
UISP
Ping Watchdog
NTP Client
System Log
SNMP
Tools
Cable Test
Wave AI
Wave Technology
Utilities
airMagic
airView®
Antenna Alignment
Ping
Site Survey
Speed Test
Traceroute
Discovery Utility
Network
Bridge/Router mode
Application Requirements
UISP
Version 1.4.5 and later
UISP web
UISP mobile iOS™
UISP mobile Android™
System
Total Throughput
2 Gbps
Supported Clients
Max. Range
5+ km (3.1 mi)
Encryption
WPA2-PSK (AES)
Radio Frequency
Operating Frequency
US/CA
Worldwide
57–71 GHz
Channel Bandwidth
2160, 1080, 540 MHz
Operating Channels
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz
Modulation
16QAM, QPSK
Antenna Gain
41 dBi
Polarization
Vertically-Linear
Beamwidth
Azimuth: 3 dB 1.4°
Elevation: 3 dB 1.4°
Cross-Pol Isolation
Electrical Downtilt
Radio Frequency (Back-Up)
WiFi Standard
802.11ax (WiFi 6)
Operating Frequency
US/CA
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
Worldwide
5150 - 5875 MHz
Channel Bandwidth
20, 40, 80 MHz
Modulation
BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna Gain
19 dBi
Polarization
Dual-Linear
Beamwidth
Azimuth: 3 dB 14°
Elevation: 3 dB 14°
Cross-Pol Isolation
20 dB
Electrical Downtilt
