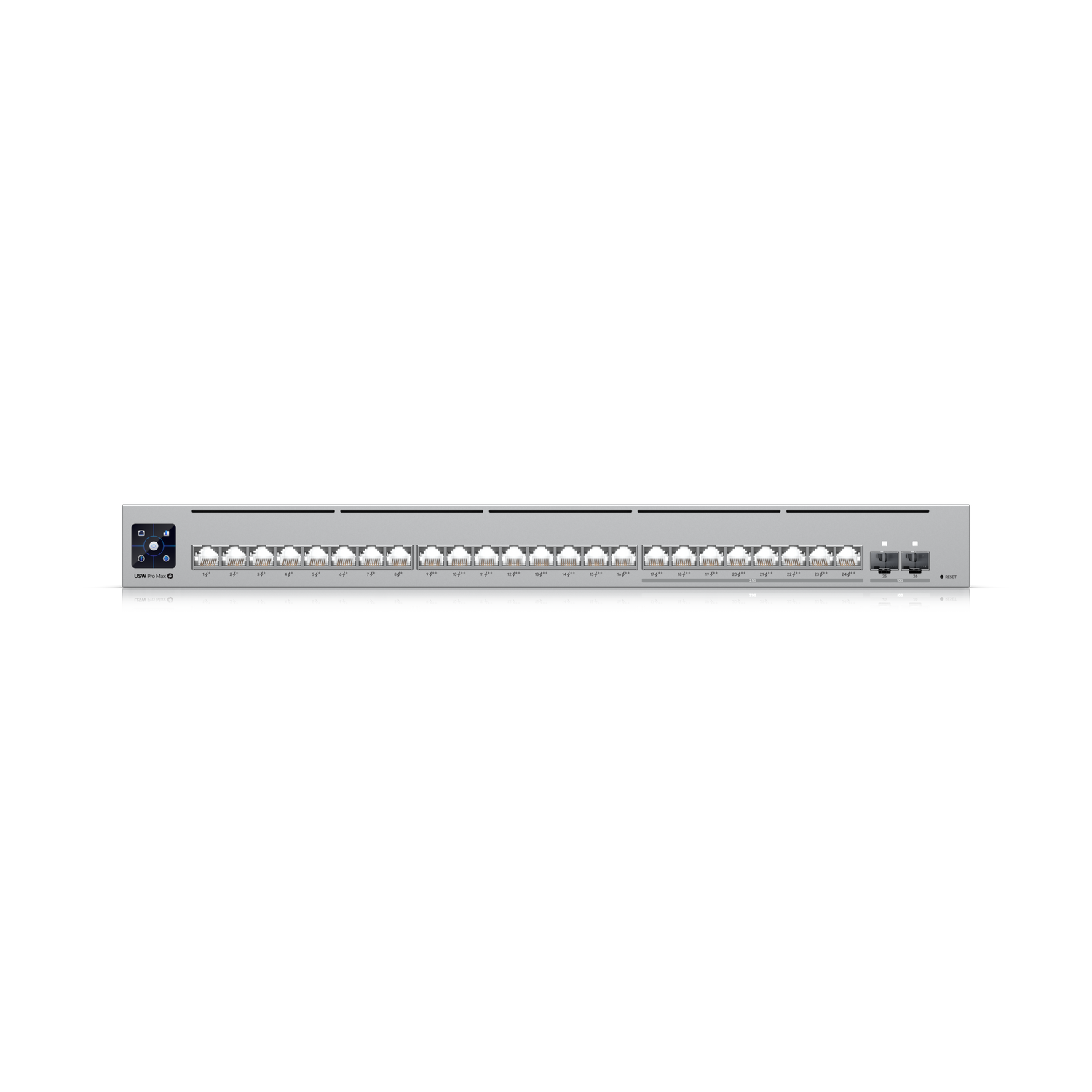

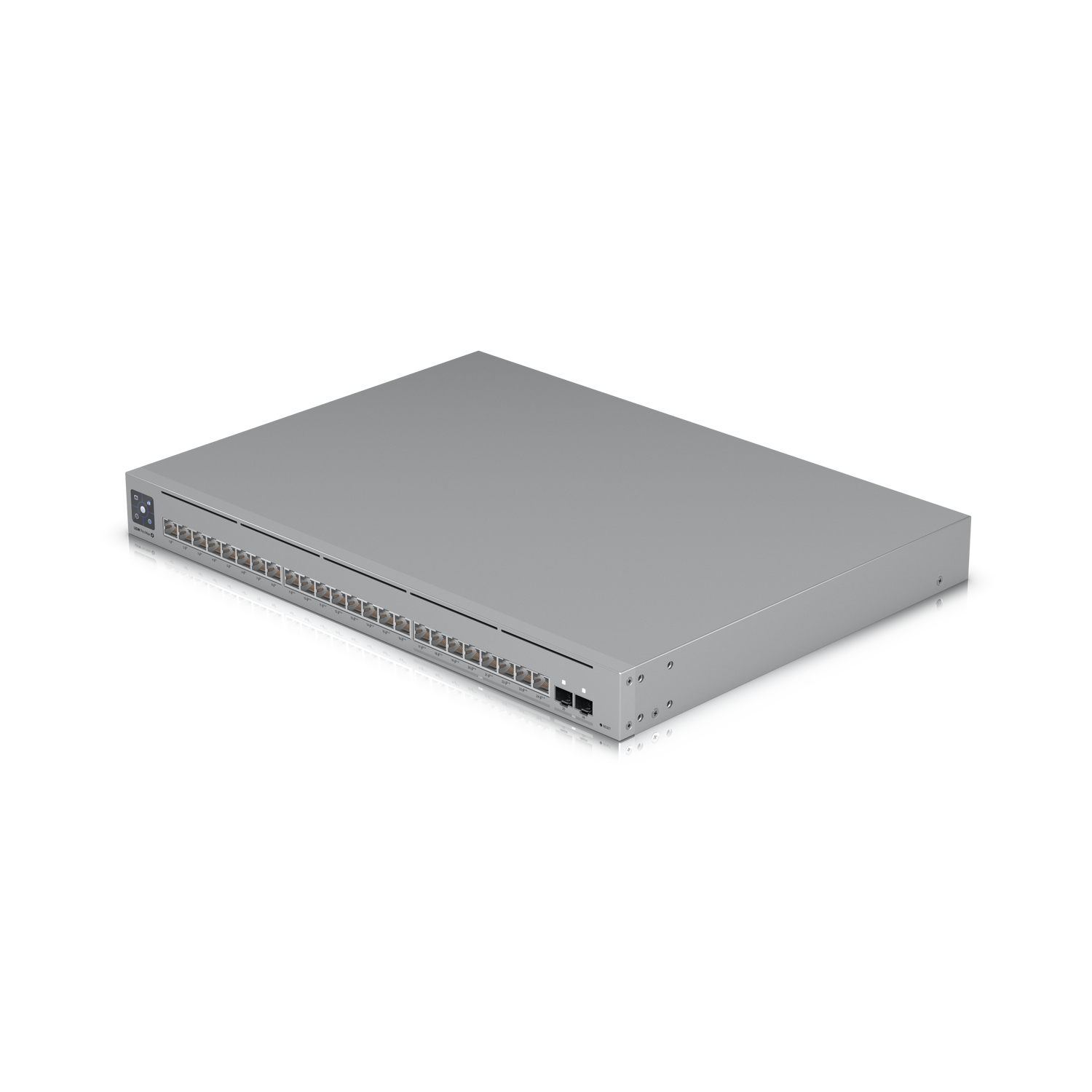

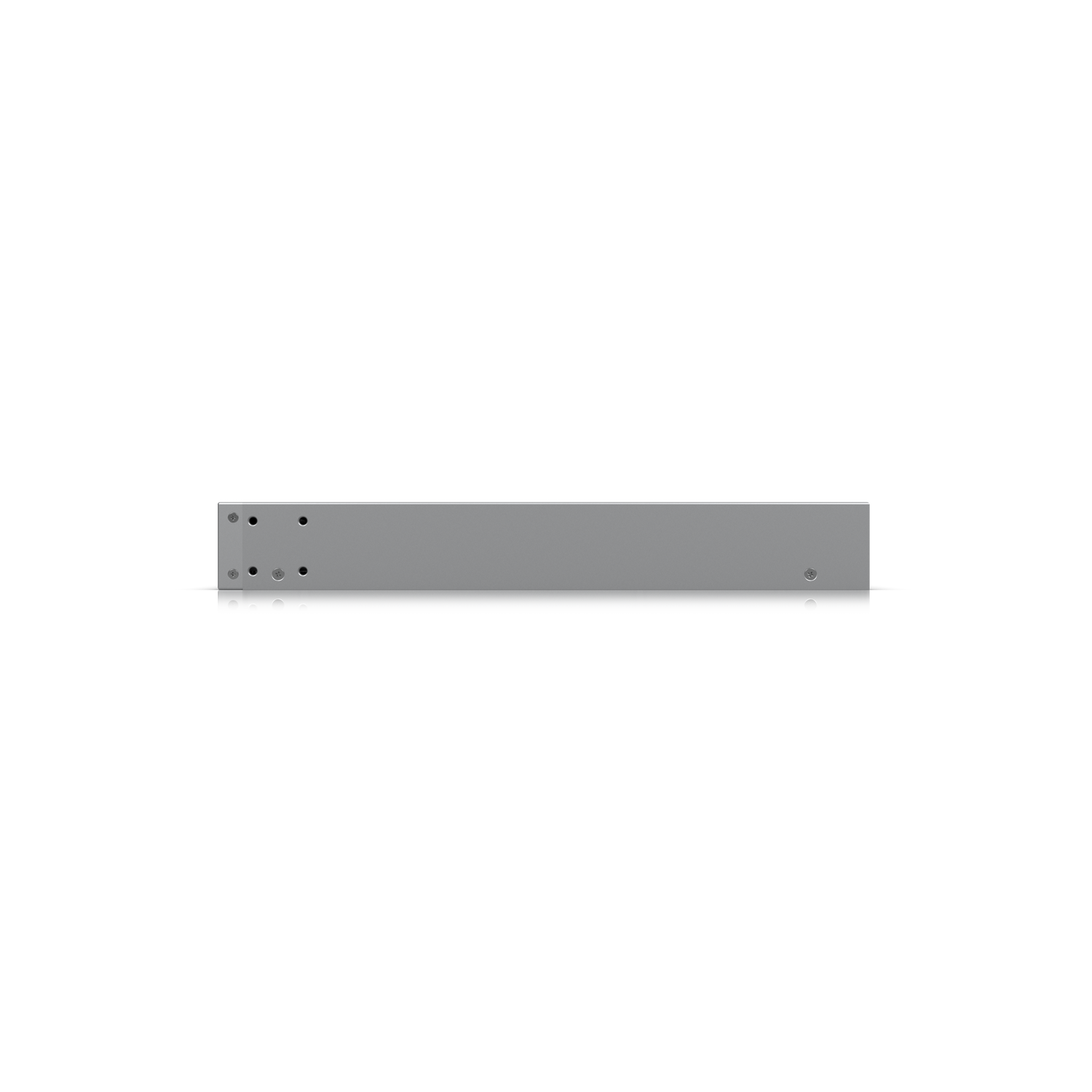

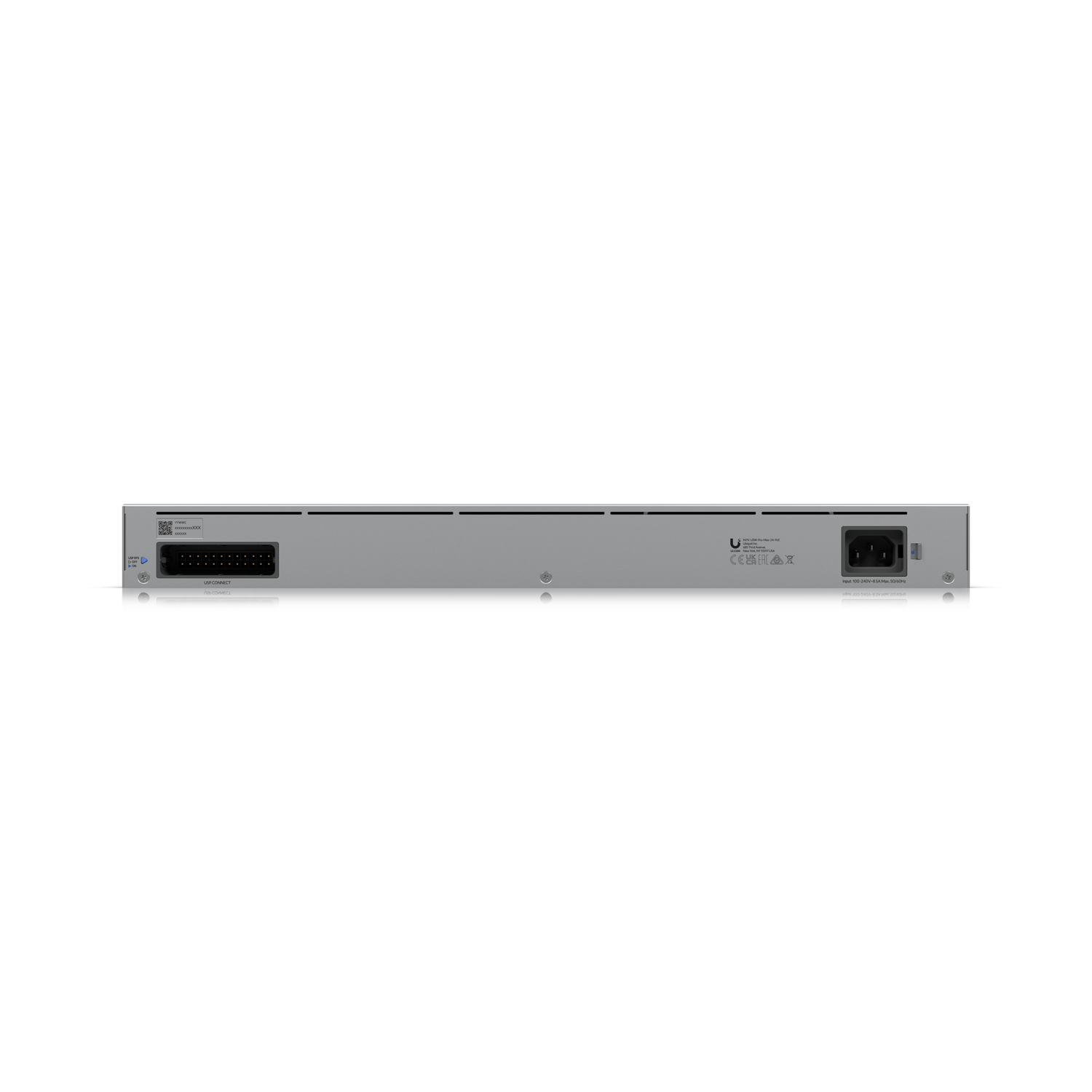

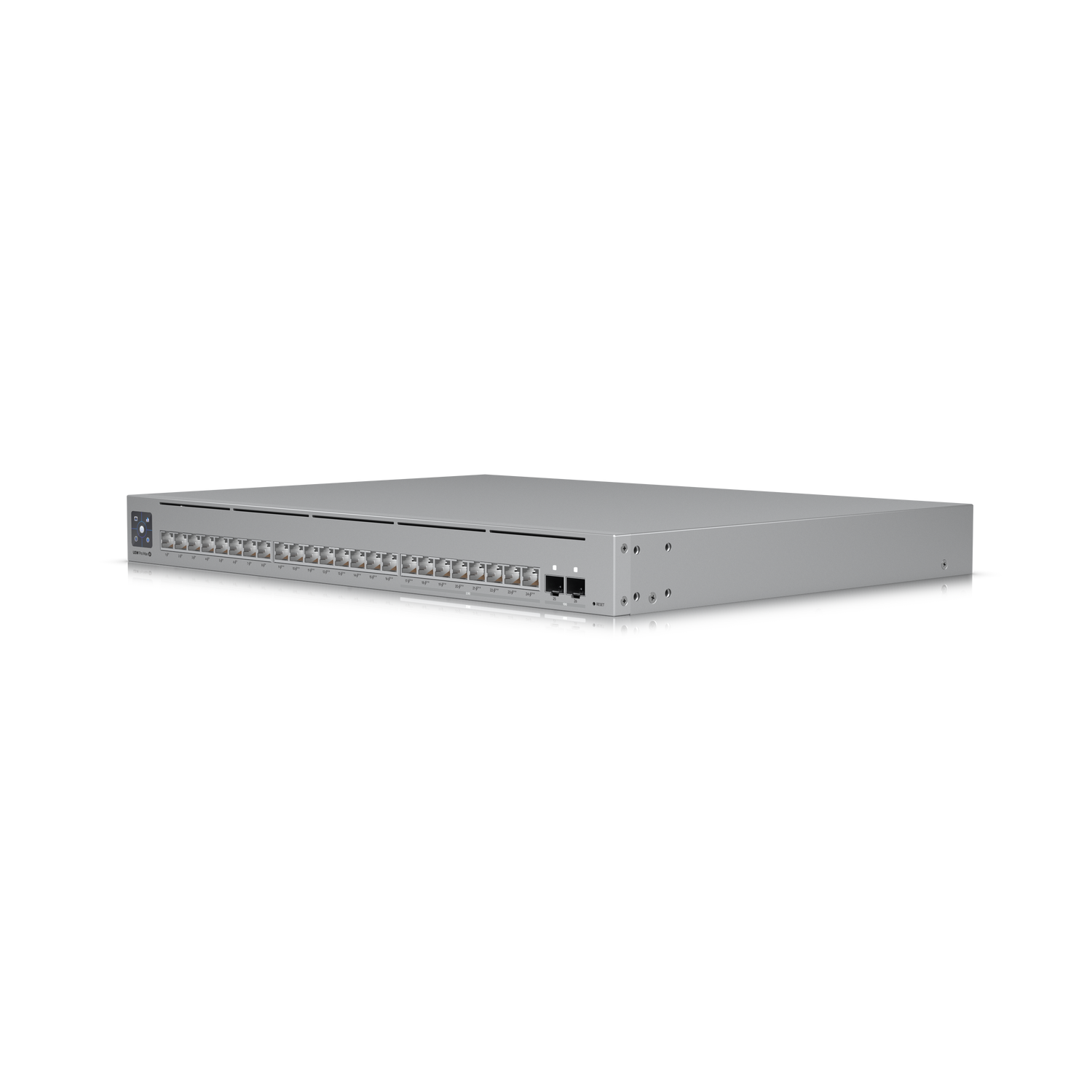

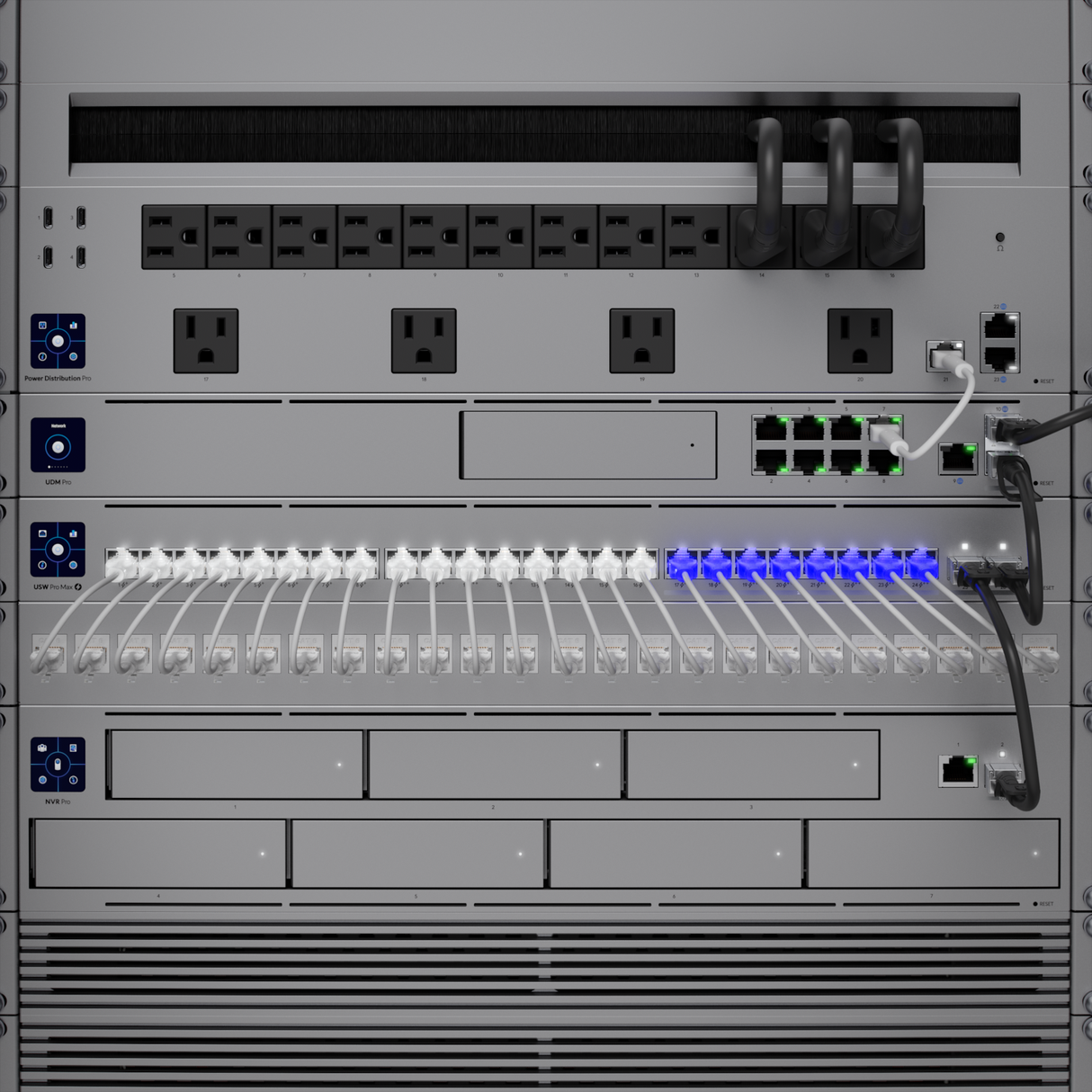

Ubiquiti Switch Pro Max 24 PoE

Ubiquiti  |  SKU: USW-PRO-MAX-24-POE
$799.00

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

We ship using the Common Carriers in the USA.

Have Questions? Contact Us

Description

A 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.

Key Features

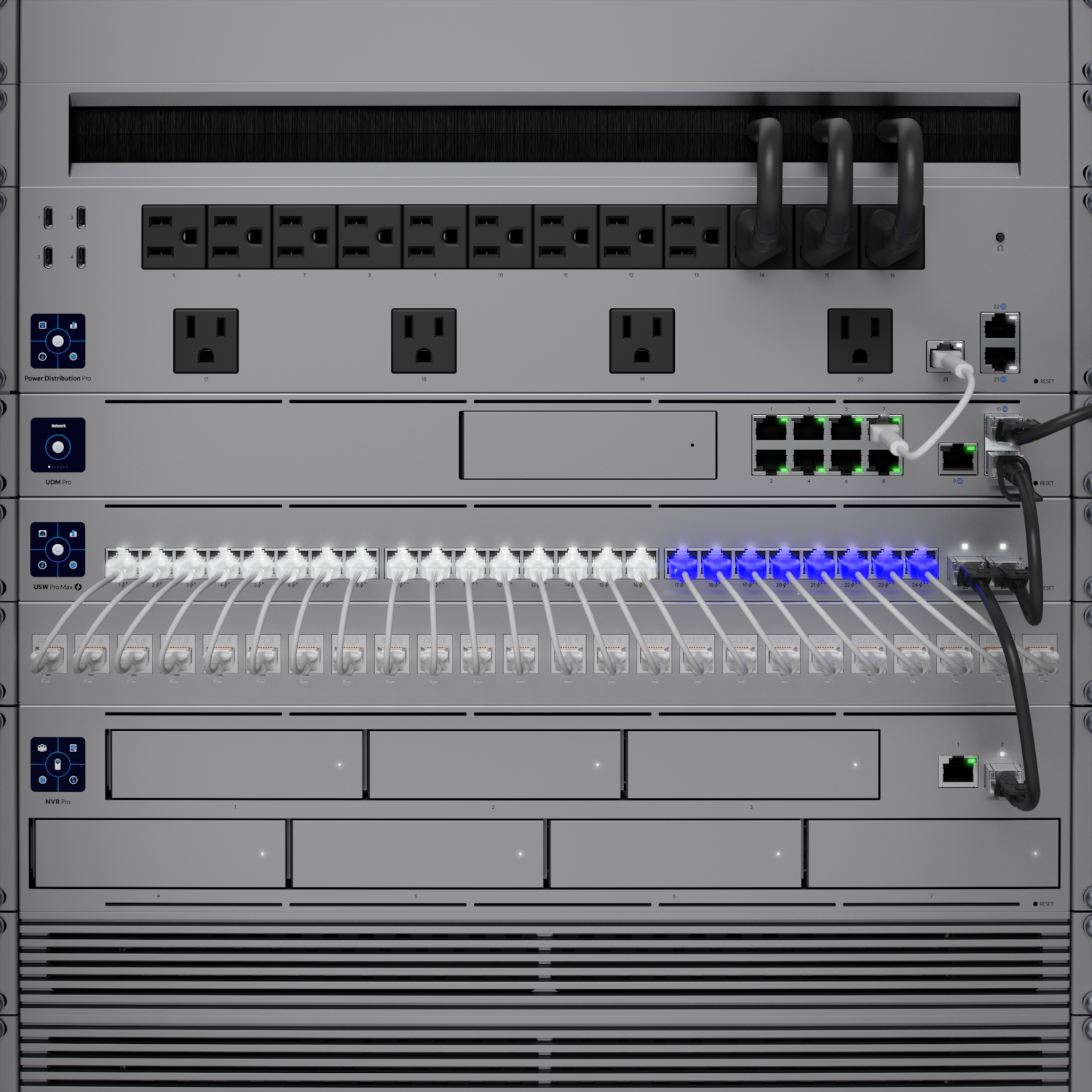

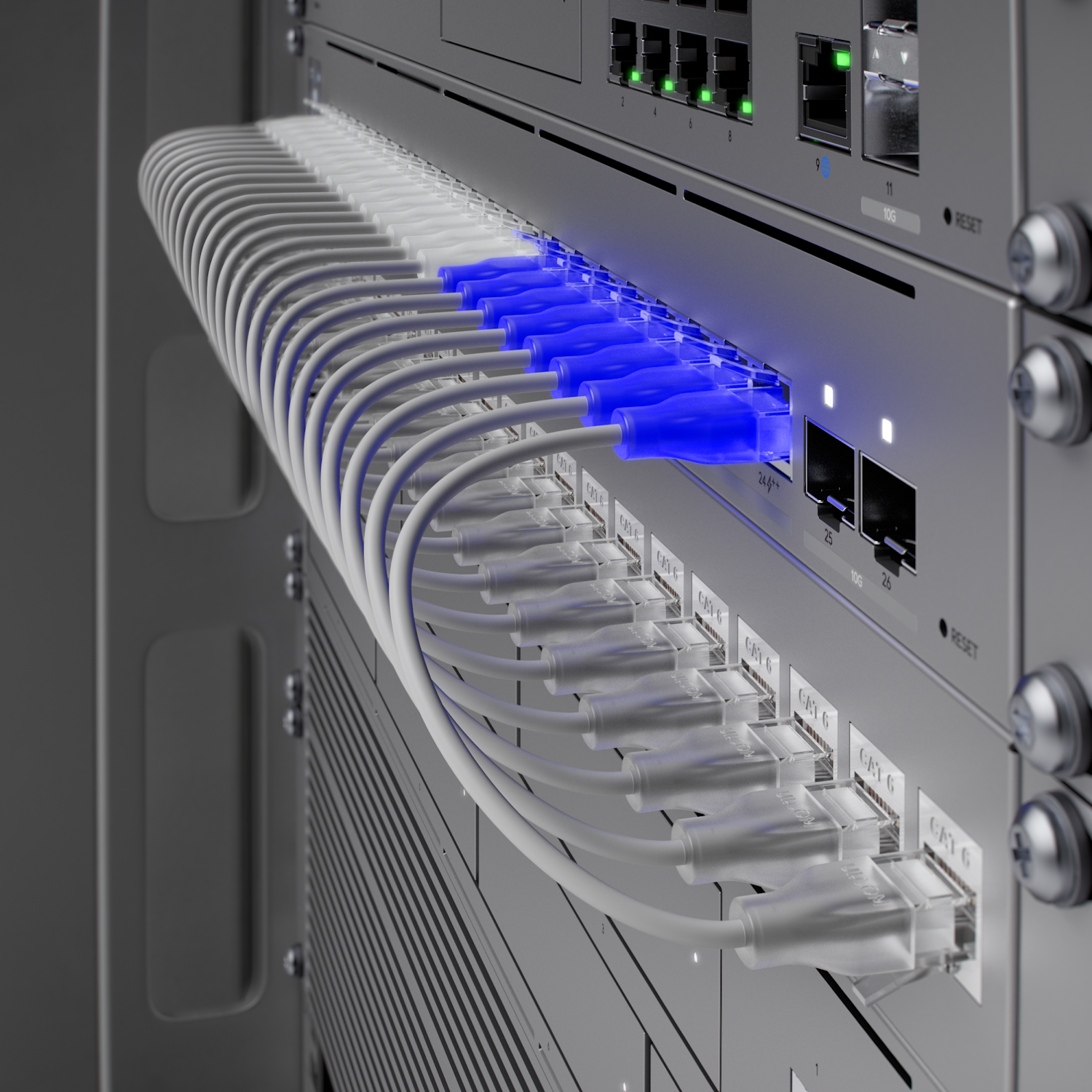

  • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
  • (8) 2.5 GbE PoE++ ports
  • (16) GbE ports including (8) PoE+ and (8) PoE++
  • (2) 10G SFP+ ports
  • DC power backup ready
  • 400W total PoE availability
  • *Pair with UniFi Etherlighting Patch Cables for optimal brightness.

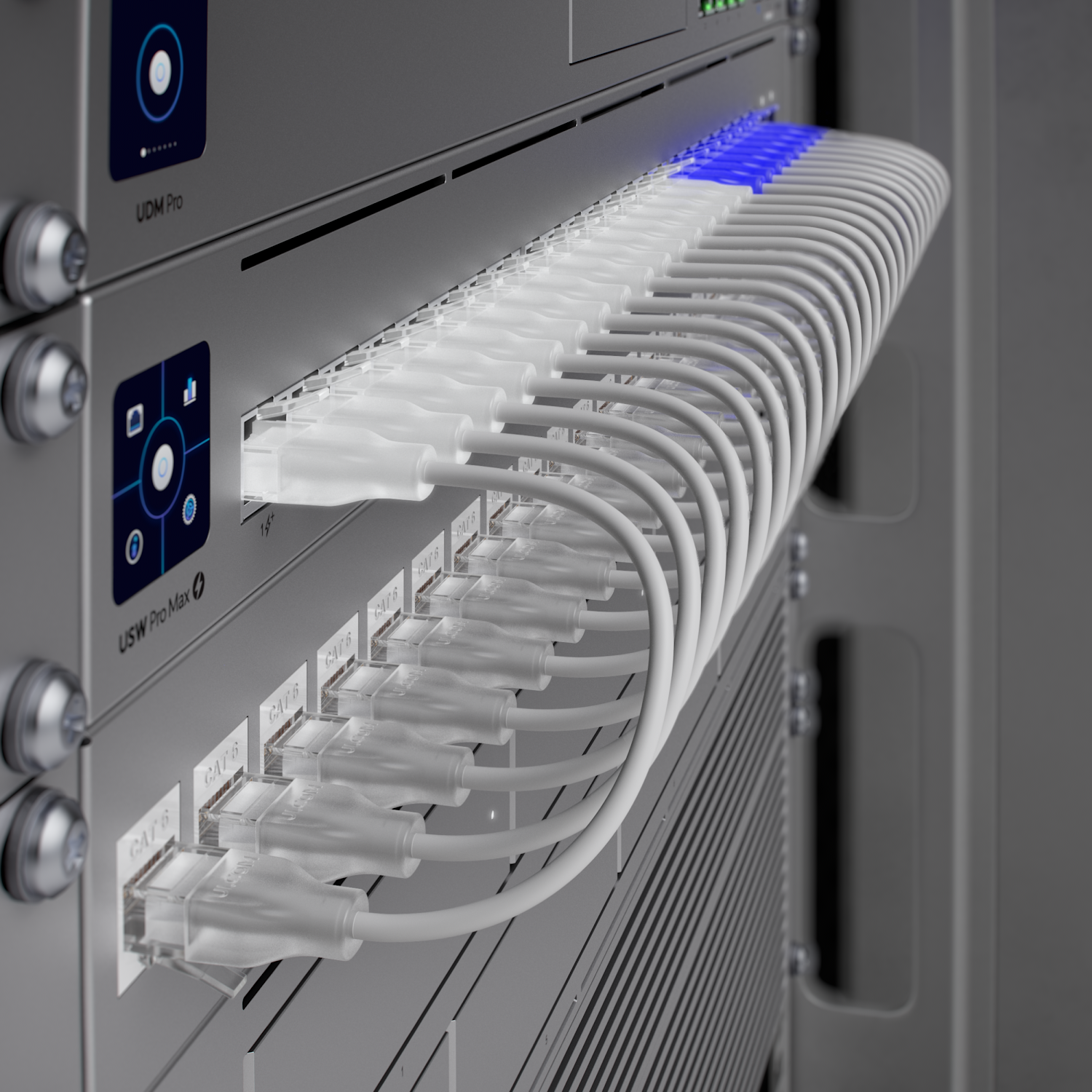

Switch Pro Max 24 PoE overview
Switch Pro Max 24 PoE overview
Switch Pro Max 24 PoE overview
Switch Pro Max 24 PoE
Switch Pro Max 24 PoE
Switch Pro Max 24 PoE
Overview
Dimensions
442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Port Layout
1 GbE RJ45
16 (8 PoE+; 8 PoE++) (1G/100M/10M)
2.5 GbE RJ45
8 (All PoE++) (2.5G/1G/100M/10M)
10G SFP+
2 (10G/1G)
Max. PoE Output
Up to PoE++
Total PoE Availability
400W
Redundancy
DC Power Backup
Layer 3
Form Factor
Rack mount (1U)
Etherlighting™
Performance
Switching Capacity
112 Gbps
Total Non-Blocking Throughput
56 Gbps
Forwarding Rate
83 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
L3 Table Size
ARP Entries
6,000
IPv4 Static Routes
256
Packet Buffer Size
1.5 MB
Access Lists
IPv4
128
MAC
128
Layer 3 Features
DHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)
Layer 2 Features
LACP Port Aggregation
STP & RSTP
QoS (DSCP)
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
Virtual Network Override
Hardware
PoE Ports
PoE+
8
PoE++
16
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
32W
PoE++
64W
Max. Power Consumption
50W (Excluding PoE Output) 450W (Including PoE Output)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 550W
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Heat Dissipation
119 BTU/hr (Excluding PoE Output)
Weight
Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2")
LCM Display
1.3" touchscreen
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
SFP+
NDAA Compliant
Certifications
CE, FCC, IC, Anatel: 06374-24-08356
Software
Application Requirements
UniFi Network
Version 8.0.24 and later
