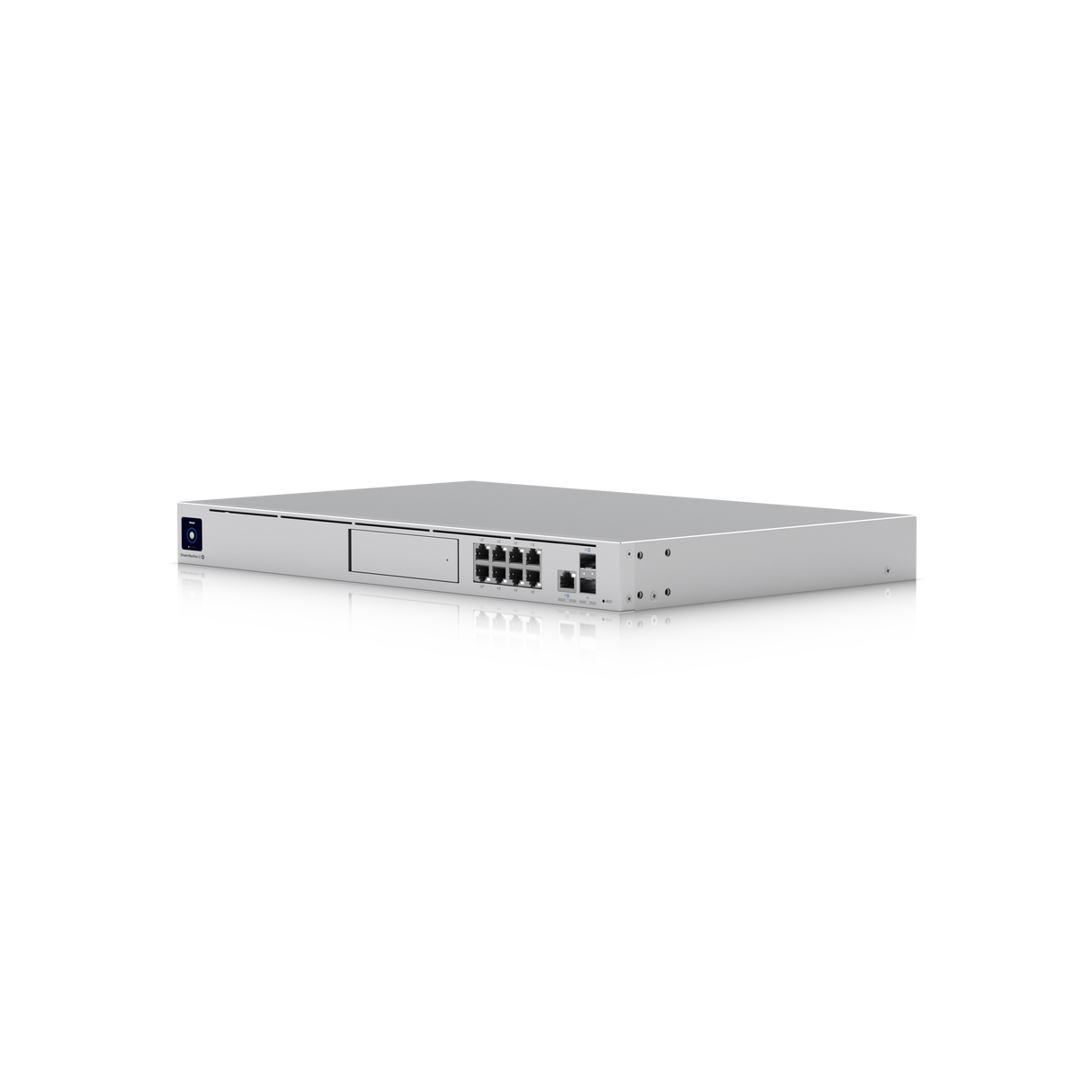

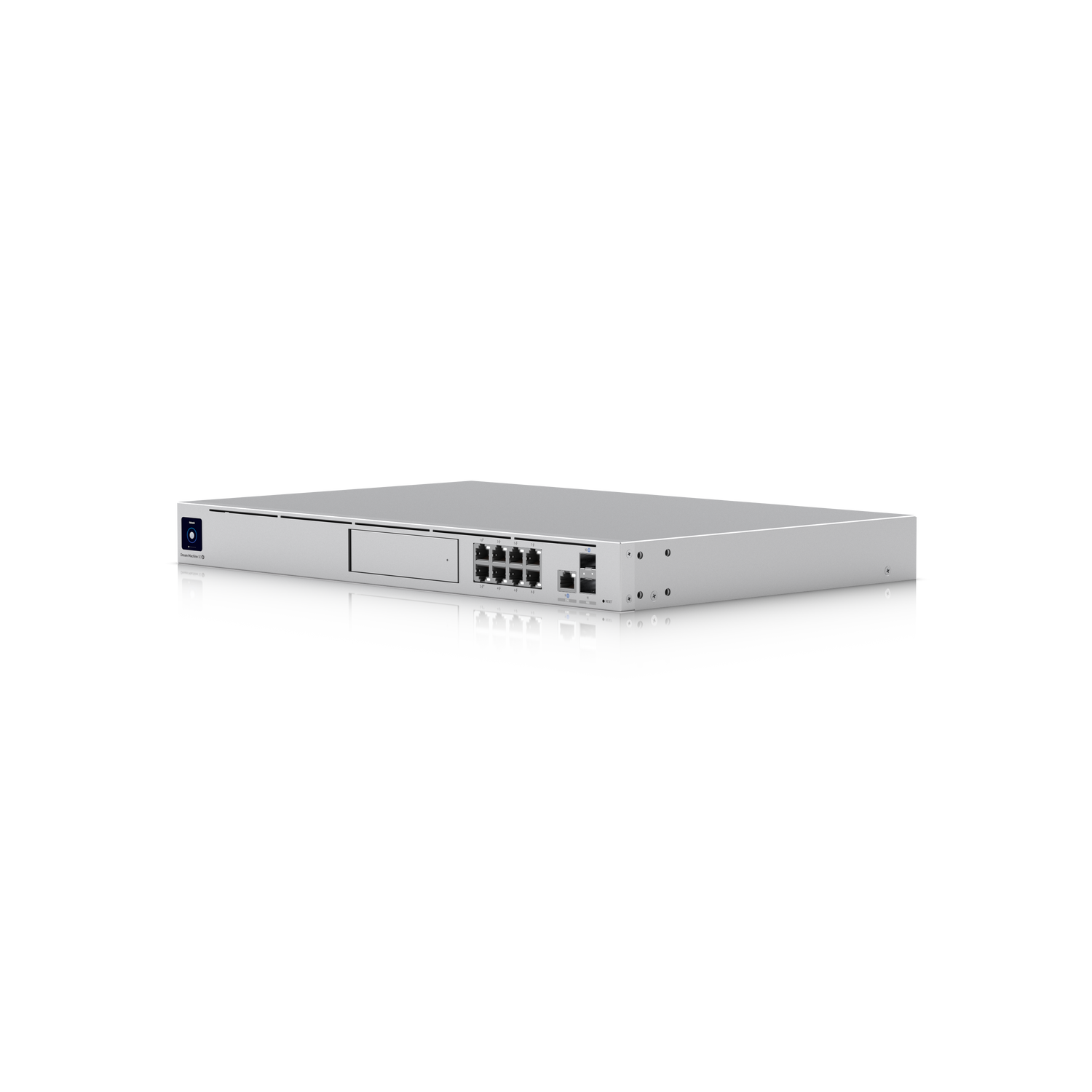

Ubiquiti Dream Machine Special Edition
Ubiquiti | SKU:
UDM-SE
Regular price
$499.00
Unit price
Ubiquiti Dream Machine Special Edition is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
We ship using the Common Carriers in the USA.
Ubiquiti Dream Machine Special Edition
Regular price
$499.00
Unit price
Ubiquiti Dream Machine Special Edition is backordered and will ship as soon as it is back in stock.
Description
Description
10G Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.
Key Features
- Includes full UniFi application suite for device management
- 3.5+ Gbps routing with IDS/IPS
- (1) 10G SFP+*, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE
- (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
- (1) 3.5" NVR HDD bay
- Built-in 128 GB SSD for NVR detection recordings
- UniFi Power Backup ready
- 1.3" touchscreen
- *Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.
Overview
Dimensions
442.4 x 43.7 x 285.6 mm
(17.4 x 1.7 x 11.2")
UniFi Application Suite
Network
Protect
Access
Talk
Connect
Managed UniFi Devices
100+
Managed Cameras
(24) HD
(14) 2K
(8) 4K
Managed Access Hubs
150
Simultaneous Users Connected
1,000+
Max. WAN Port Count
8
Default WAN Ports
(1) 10G SFP+
(1) 2.5 GbE RJ45
Port Layout
1 GbE RJ45
8
(1G/100M/10M)
2.5 GbE RJ45
1
(2.5G/1G/100M/10M)
10G SFP+
2
(10G/1G)
IDS/IPS Throughput
3.5 Gbps
Form Factor
Rack mount (1U)
Redundancy
Shadow Mode (VRRP) Gateway Failover
DC Power Backup
Security
Stateful Firewall
Application-Aware Layer 7 Firewall
DPI & Traffic Identification
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Content Filtering
Intrusion Prevention (IPS/IDS)
Ad Blocking
IDS/IPS Signatures
55,000+
with CyberSecure
VLAN/Subnet-based Traffic Segmentation
VPN & SD-WAN
License-Free SD-WAN
Site-to-Site VPN
Site Magic
IPsec
OpenVPN
VPN Server
Identity Endpoint One-Click VPN
Teleport Zero-Configuration VPN
WireGuard
OpenVPN
L2TP
VPN Client
OpenVPN
WireGuard
Networking
Multi-WAN Load Balancing
Shadow Mode (VRRP) High Availability
LACP Port Aggregation
Dynamic Routing
OSPF
BGP
Advanced QoS
Multicast DNS (mDNS)
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Integrated RADIUS Server
RADIUS over TLS (RadSec)
Additional Internet Failover with UniFi LTE Backup
Internet Quality and Outage Reporting
MAC Address Table Size
4,000
Policy-based WAN and VPN Routing
Customizable DHCP Server
IPv6 ISP Support
IGMP Proxy
Virtual Network Override
Hardware
NVR Storage
(1) 3.5" NVR HDD bay
Built-in 128 GB SSD for Faster Experience
PoE Budget
180W
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
Voltage Range PoE Mode
PoE: 44-57V
PoE+: 50-57V
Max. Power Consumption
50W (Excluding PoE Output)
Power Method
(1) Universal AC input, 100–240V AC, 4.4A Max., 50/60 Hz
(1) USP-RPS DC input, 52V DC, 3.94A
Power Supply
AC/DC, internal, 240W
Supported Voltage Range
100–240V AC
Heat Dissipation
170 BTU/hr (Excluding PoE Output)
Processor
Quad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory
4 GB
On-board Storage
16 GB eMMC
128 GB SSD (Integrated)
Weight
5 kg (10.9 lb)
Enclosure Material
Aluminium CNC, SGCC steel
Mount Material
SGCC steel
LCM Display
1.3" touchscreen
Management
Ethernet
Bluetooth
LEDs
Ethernet
SFP+
RPS
PSU
HDD
Button
(1) Factory reset
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Certifications
CE, FCC, IC, Anatel: 07309-22-08356, SRRC
