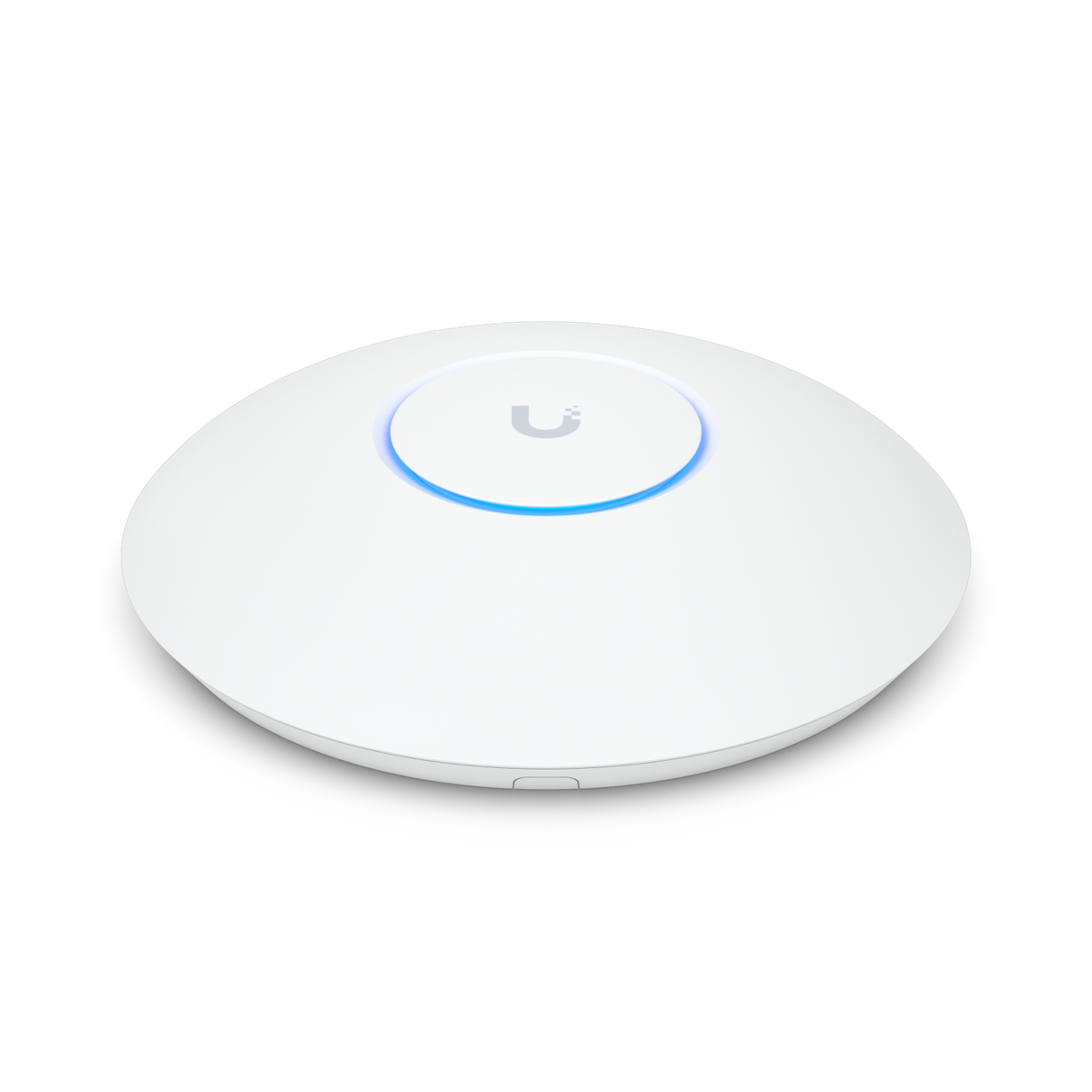

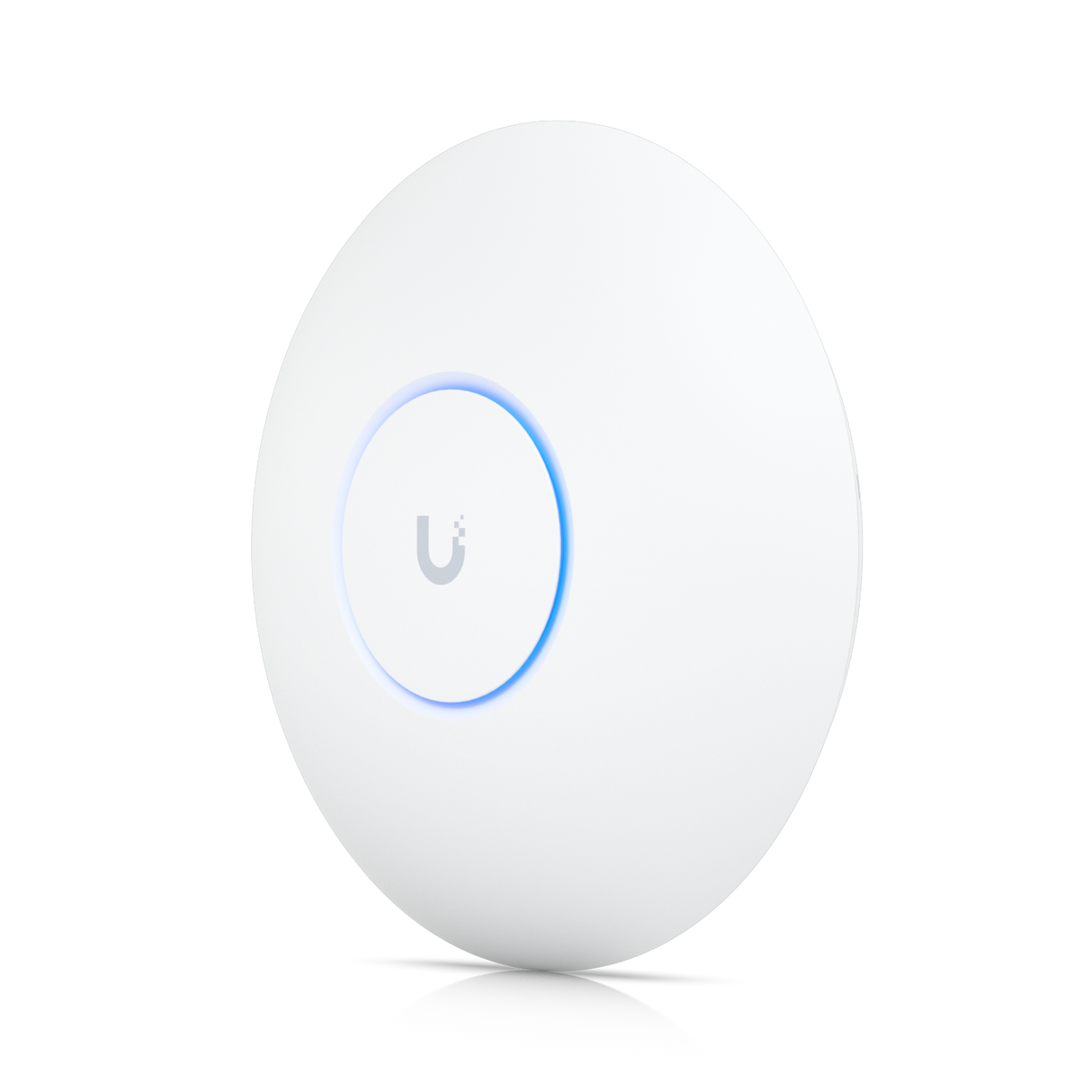

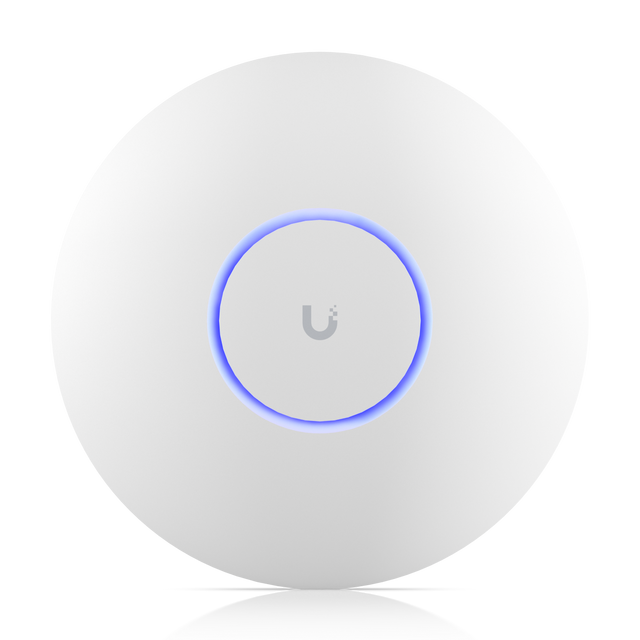

Ubiquiti Access Point U7 Pro
Ubiquiti | SKU:
U7-PRO-US
Regular price
$189.00
Unit price
Ubiquiti Access Point U7 Pro is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
We ship using the Common Carriers in the USA.
Ubiquiti Access Point U7 Pro
Regular price
$189.00
Unit price
Ubiquiti Access Point U7 Pro is backordered and will ship as soon as it is back in stock.
Description
Description

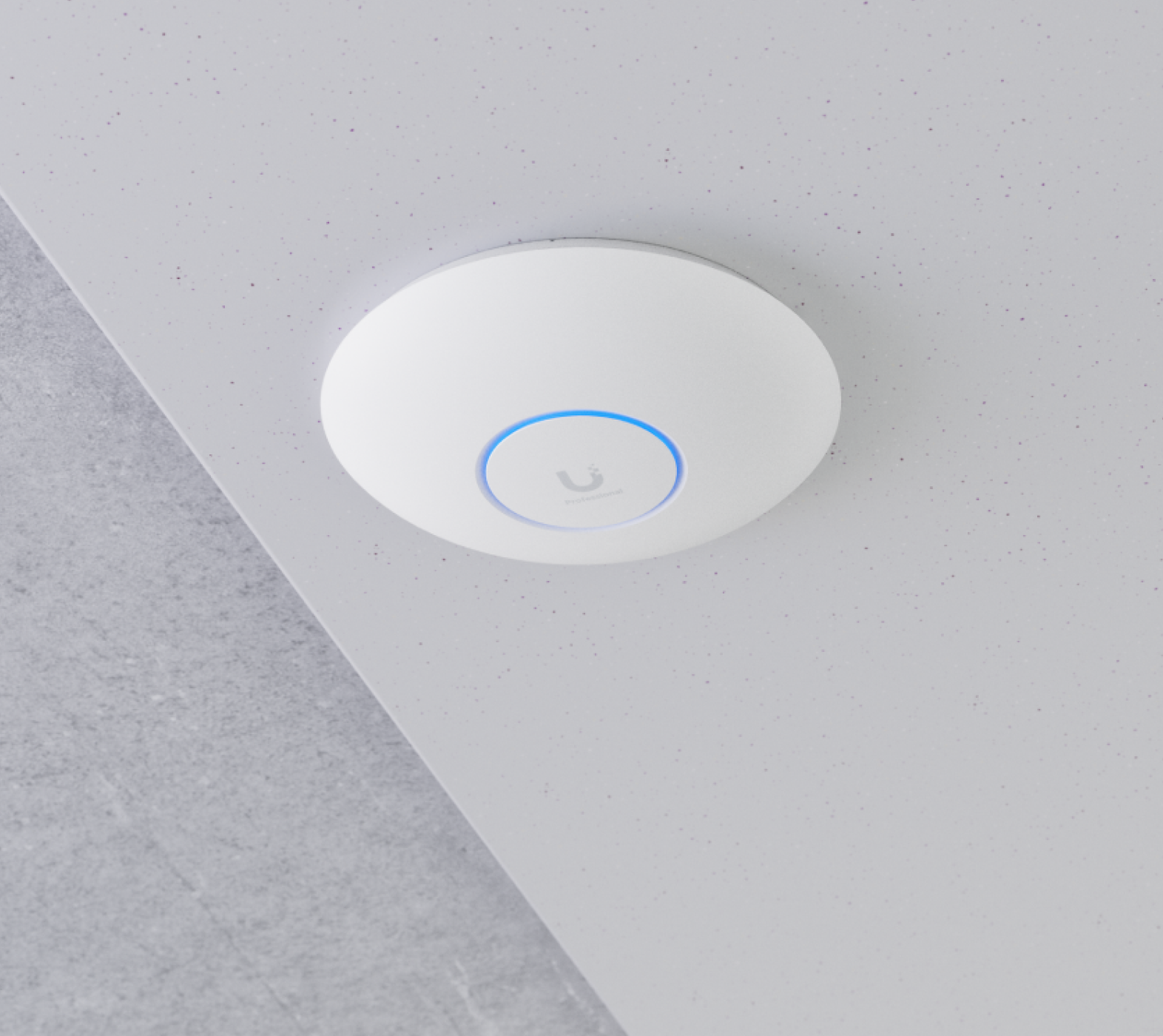

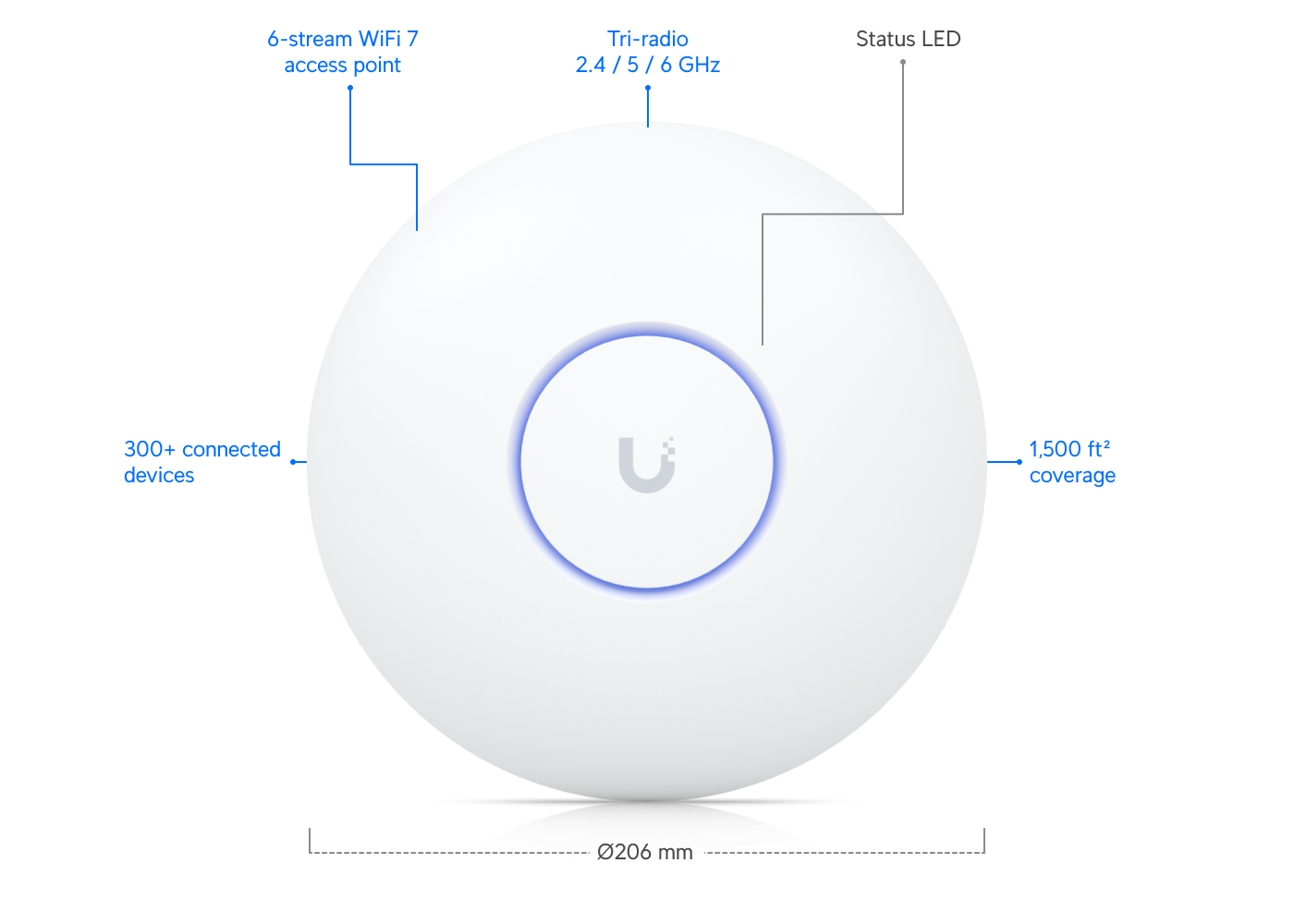

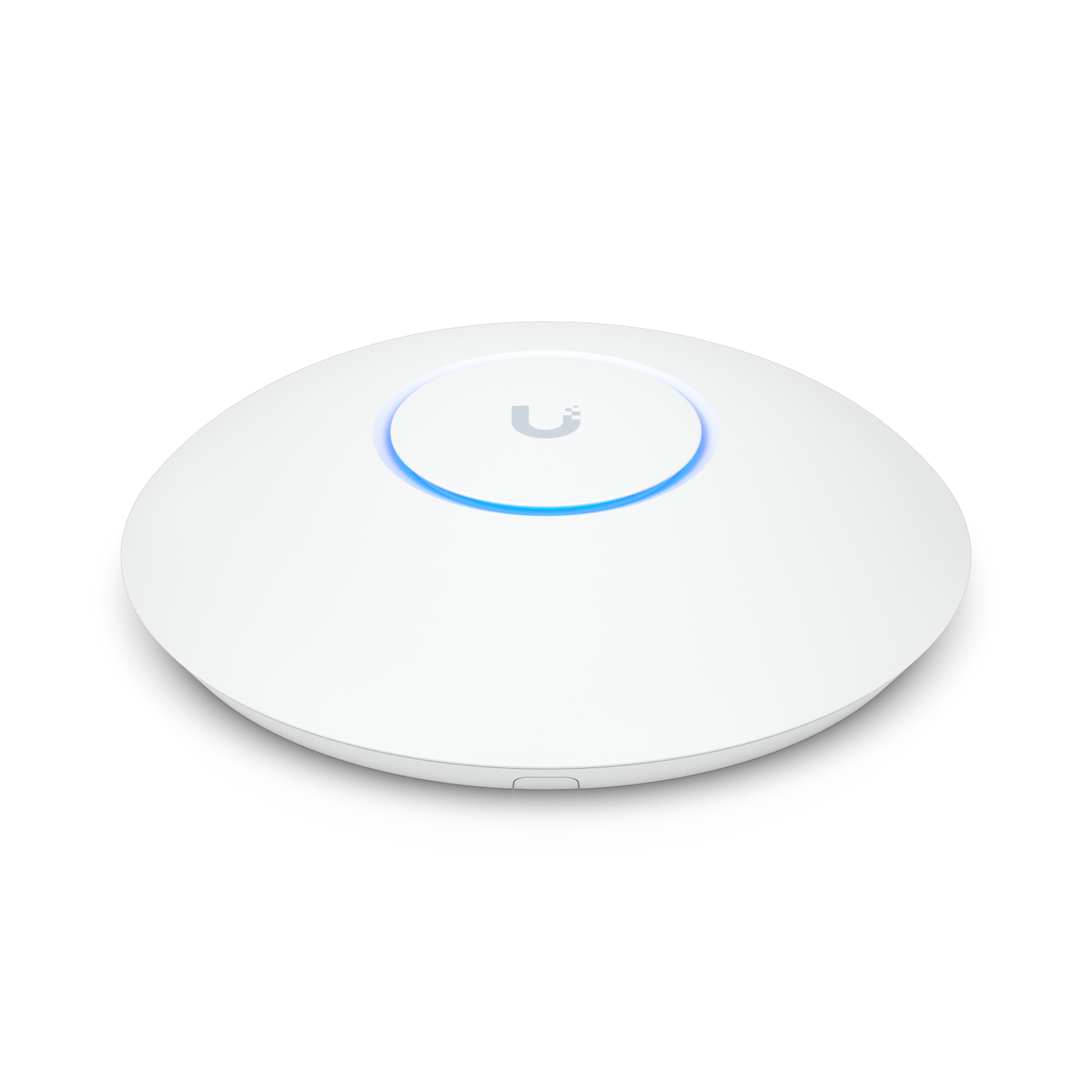

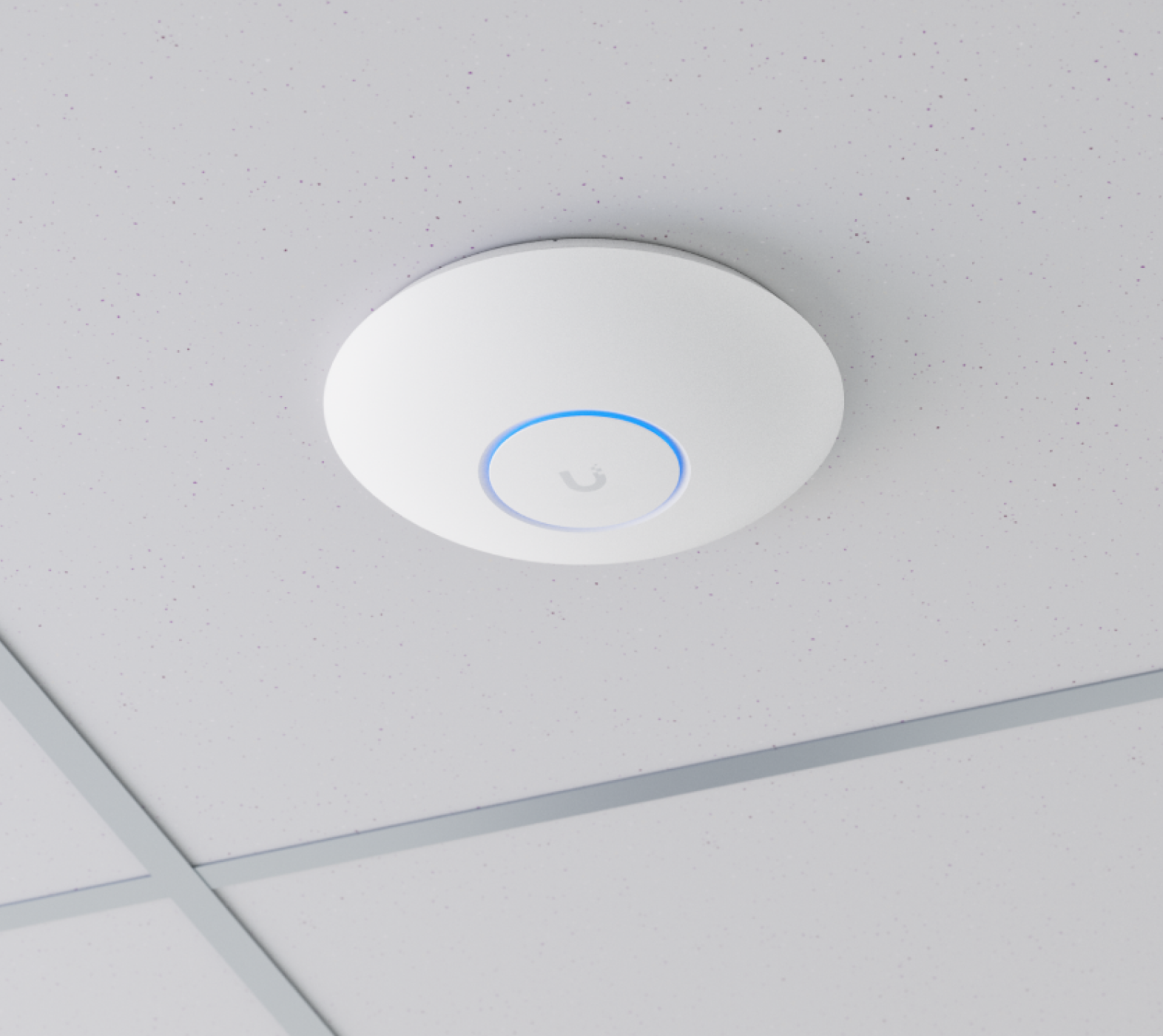

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.
Key Features
- WiFi 7 with 6 GHz support
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- 300+ connected devices

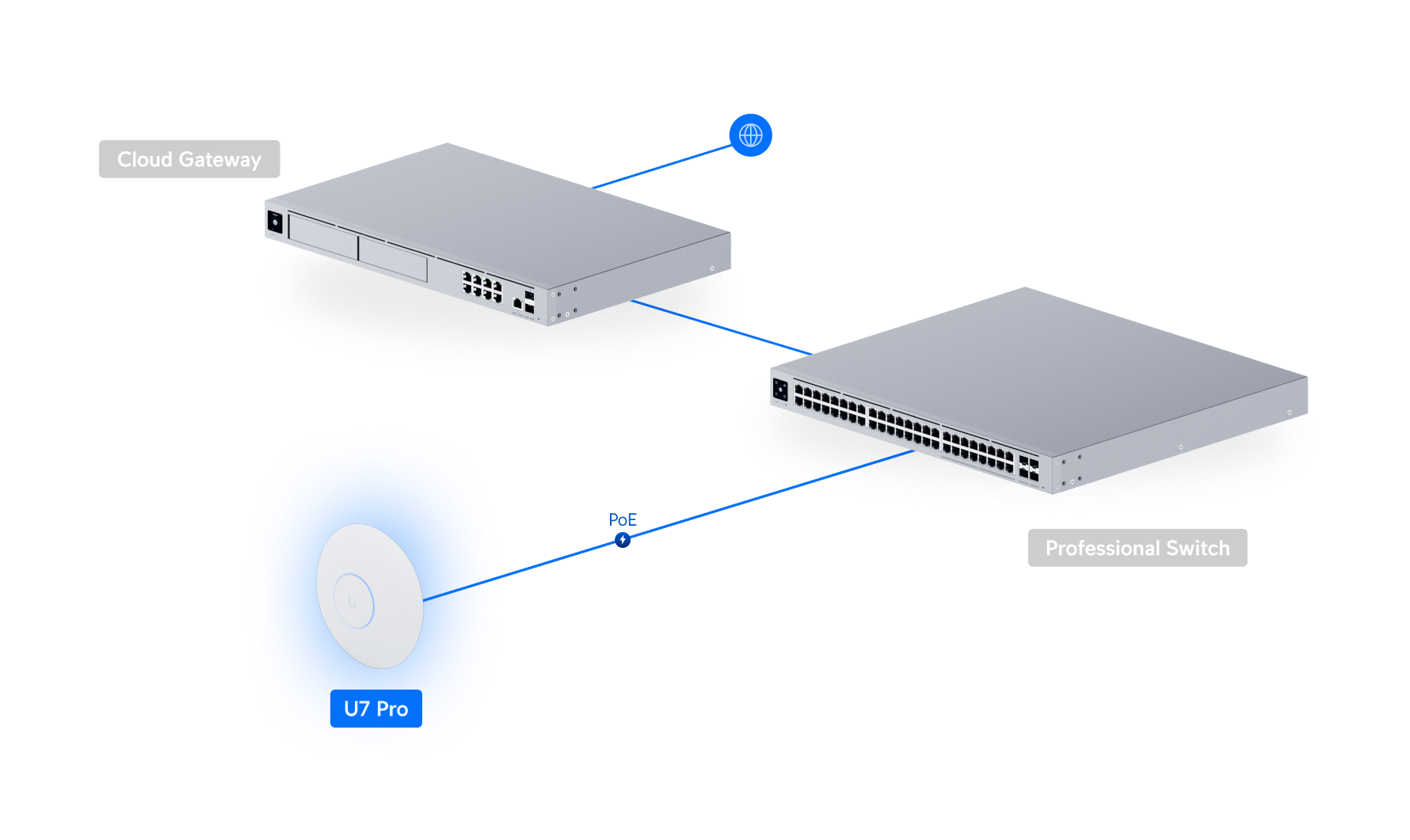

- Powered using PoE+
- 2.5 GbE uplink
- Note. 6 GHz operation is supported in these countries.
- Multi-Link Operation (MLO) capability is coming soon and will be provided via software update.
Overview
Dimensions
⌀206 x 46 mm
(⌀8.1 x 1.8")
WiFi Standard
WiFi 7
Spatial Streams
6
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
300+
Uplink
2.5 GbE

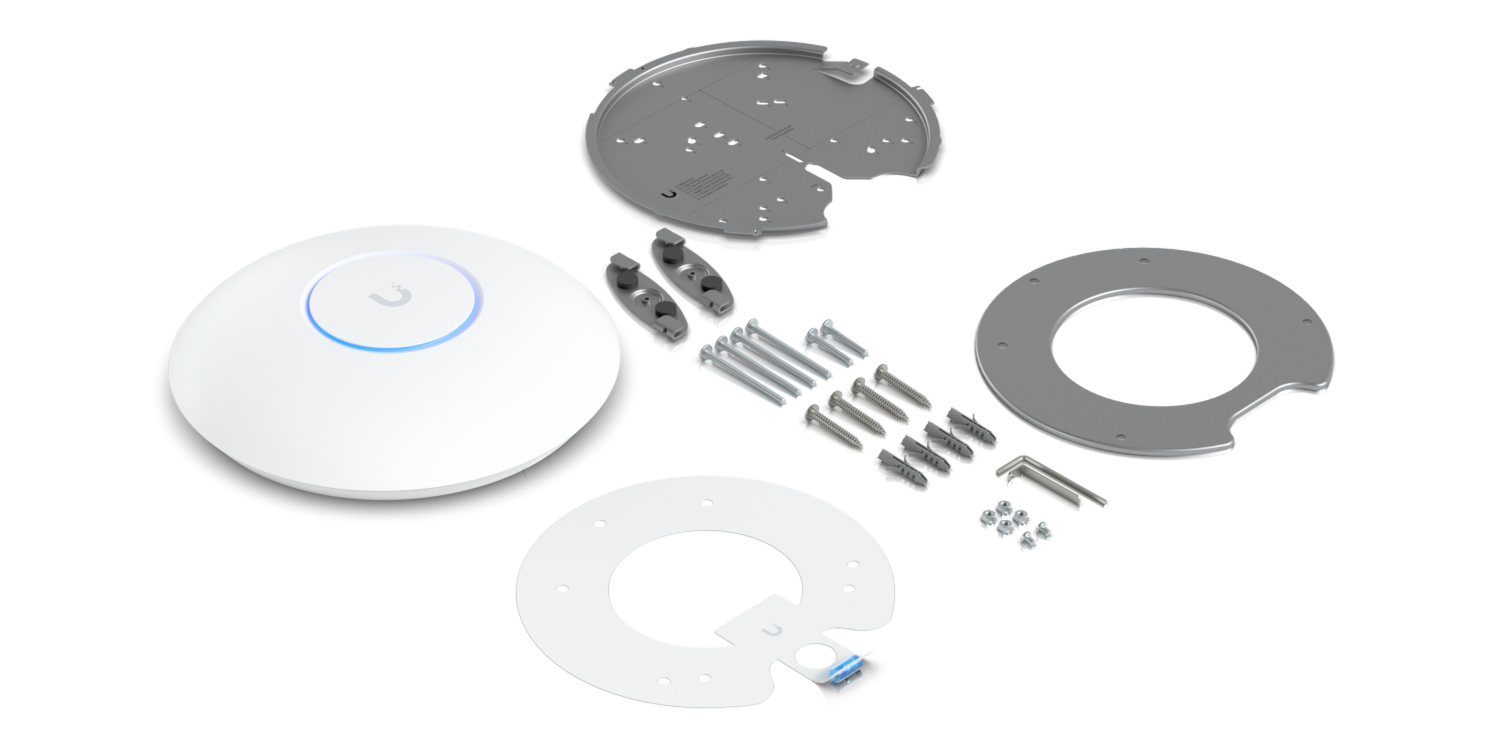

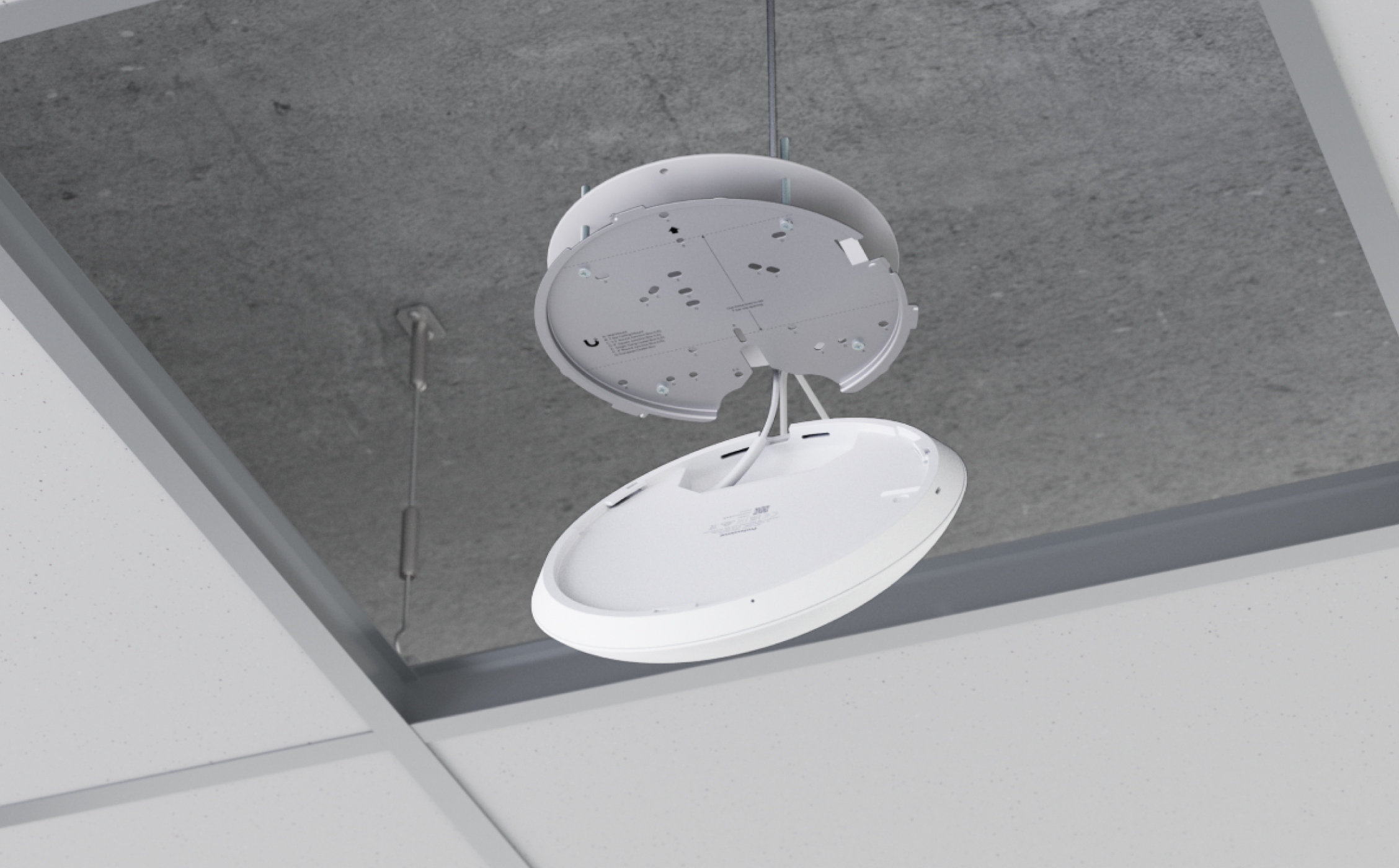

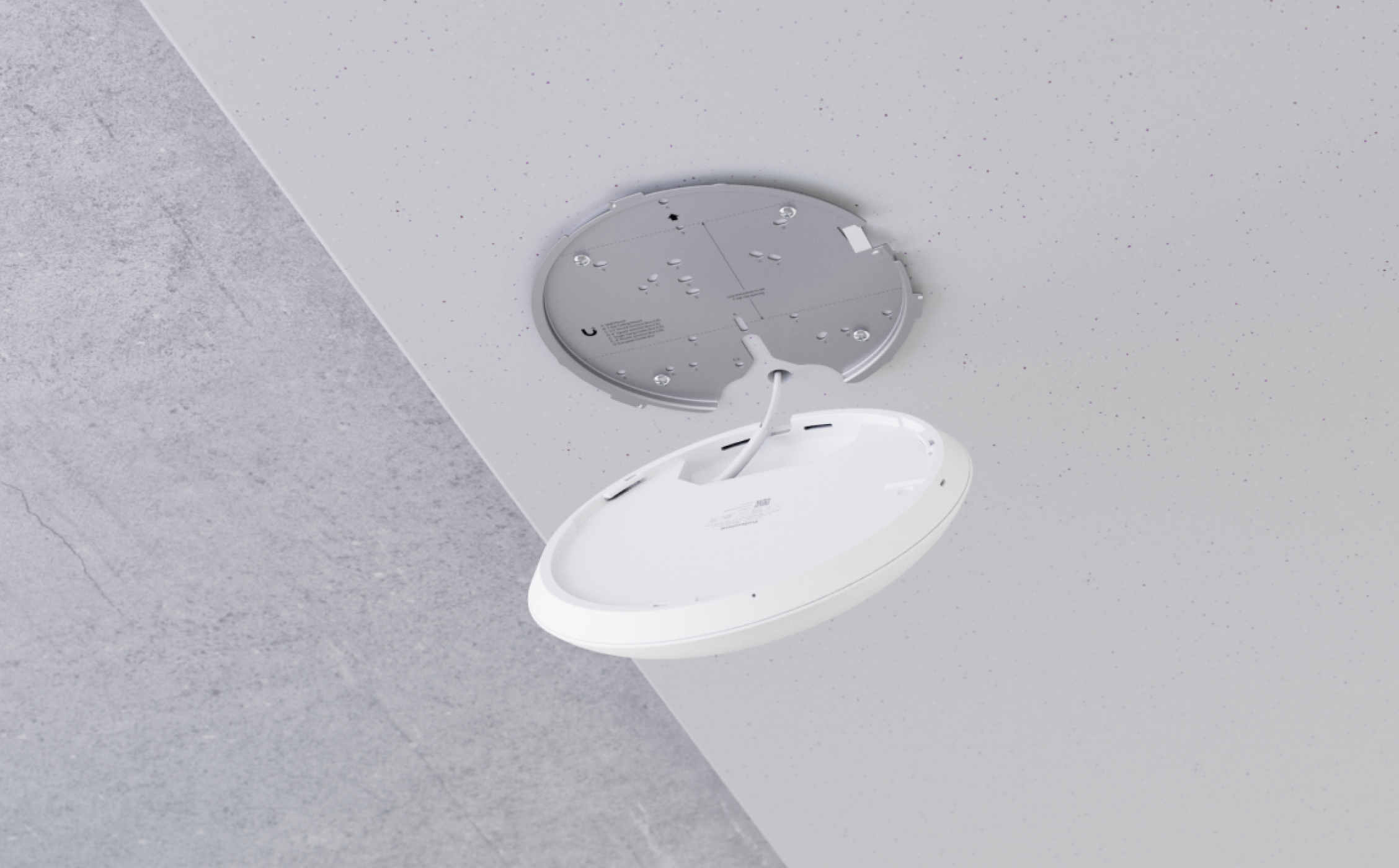

Mounting
Ceiling, Wall
(Pro Mount Included)
Power Method
PoE+
Performance
MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz
5.8 Gbps (BW320)
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
6 GHz
5.8 dBi
5 GHz
6 dBi
2.4 GHz
4 dBi
Max. TX Power
6 GHz
23 dBm
5 GHz
26 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Captive Hotspot Portal
Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
Hardware
Max. Power Consumption
21W
Supported Voltage Range
44–57V DC

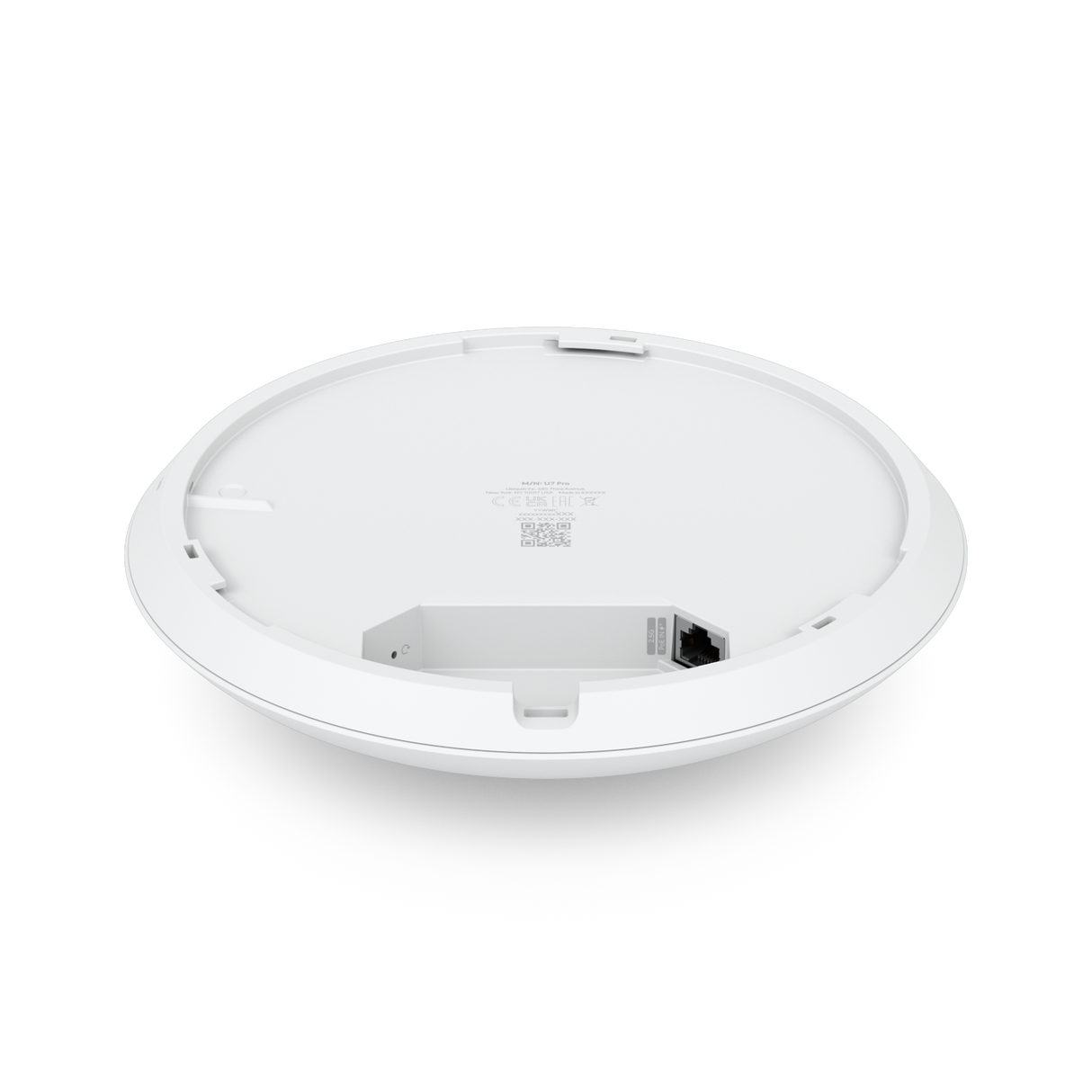

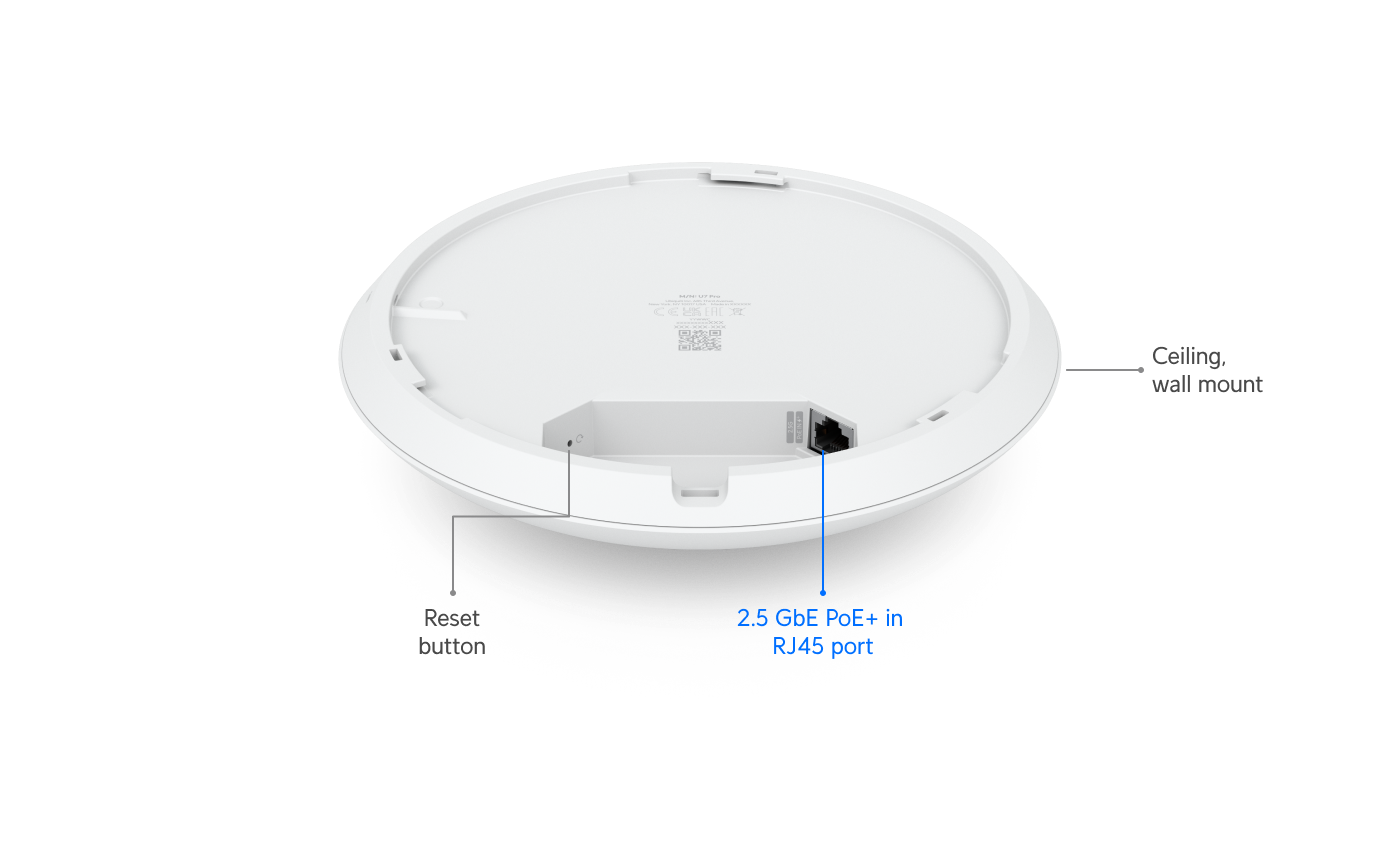

Networking Interface
(1) 1/2.5 GbE RJ45 port
Weight
680 g (1.5 lb)
Management
Ethernet
Enclosure Material
Polycarbonate, metal
Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant
Certifications
CE, FCC, IC, Anatel: 06370-24-08356
Operating Frequency
US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 to U-NII-8: 5925 - 7125 MHz
Worldwide:
2400 - 2483.5 MHz
5150 - 5850 MHz
5925 - 7125 MHz
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 8.0.28 and later
