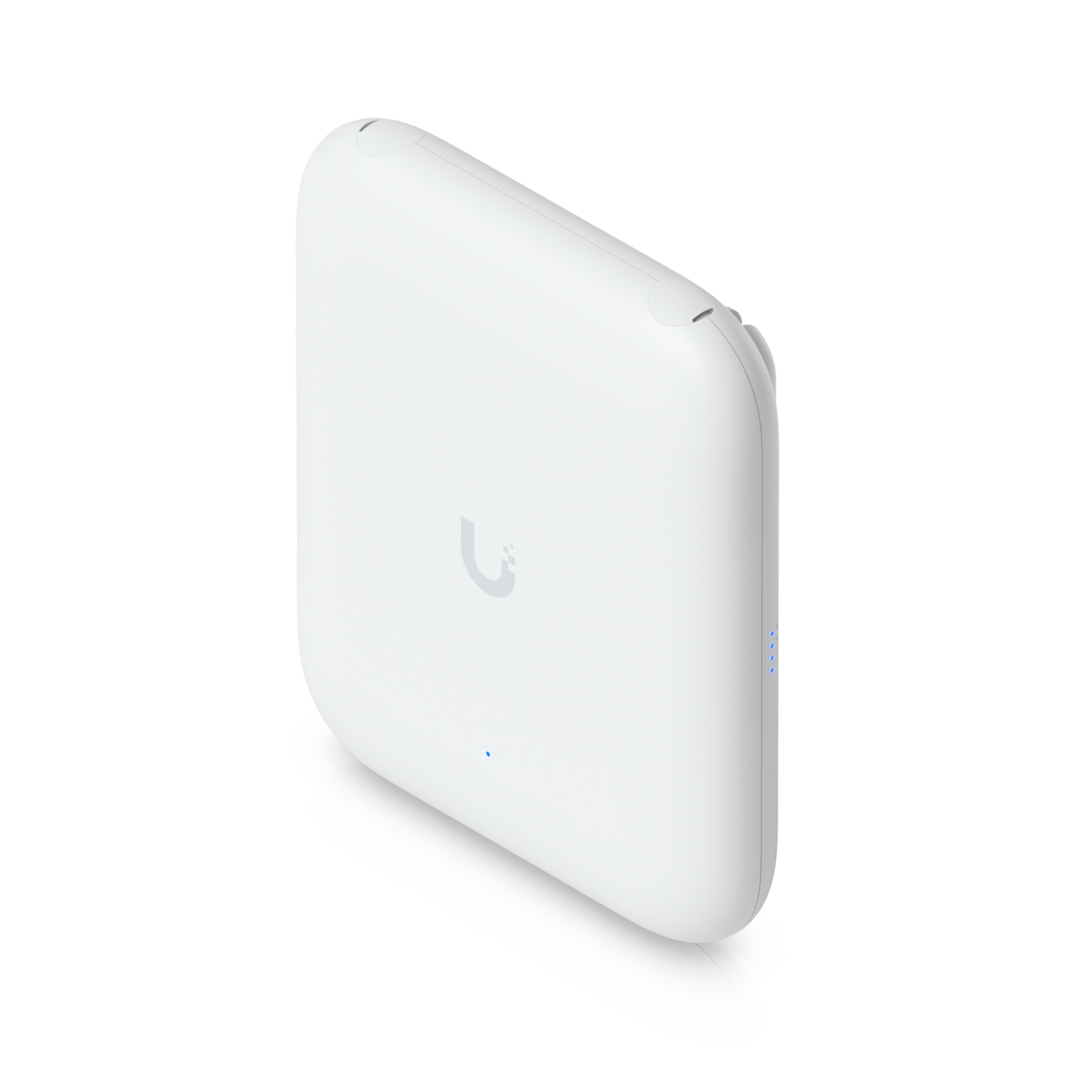

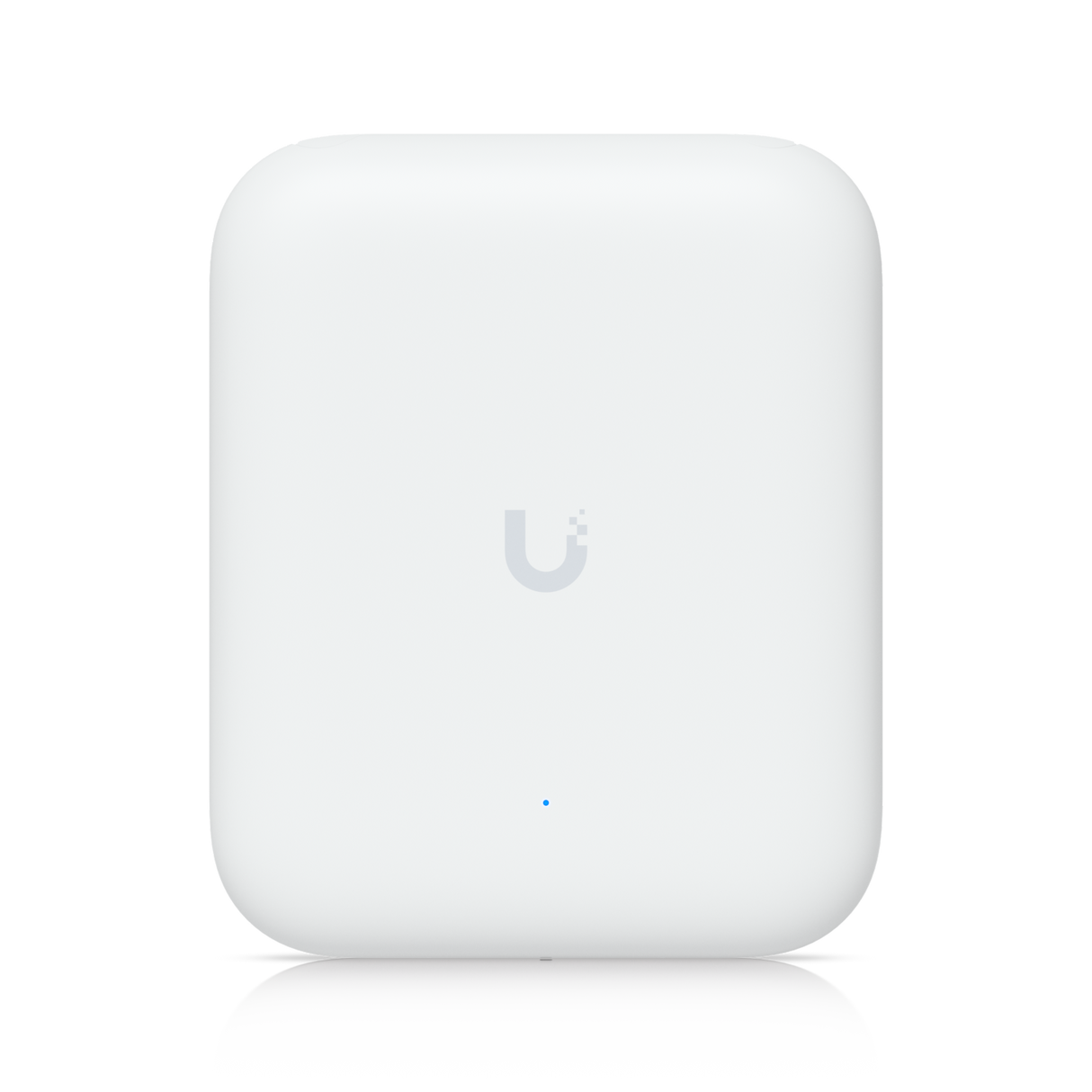

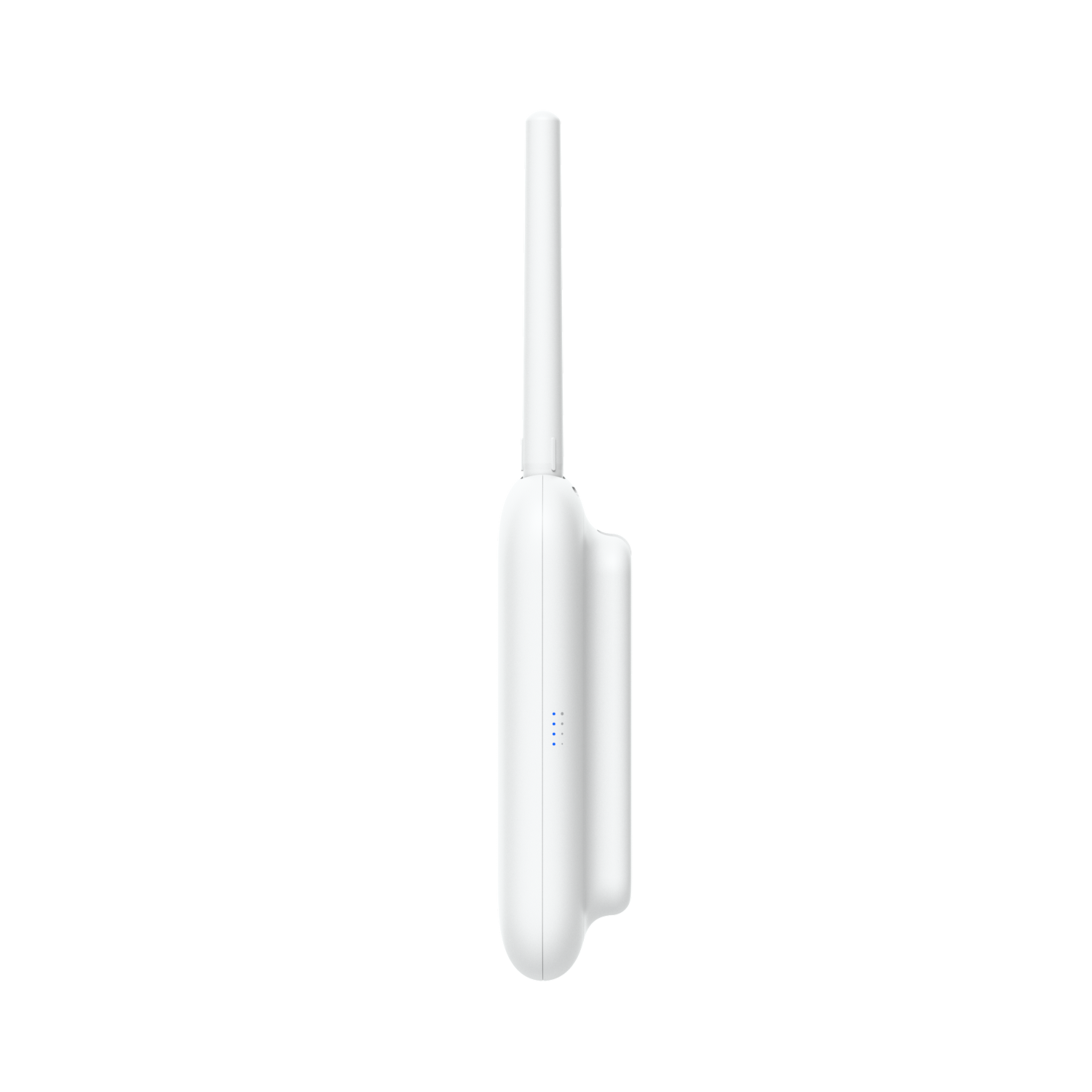

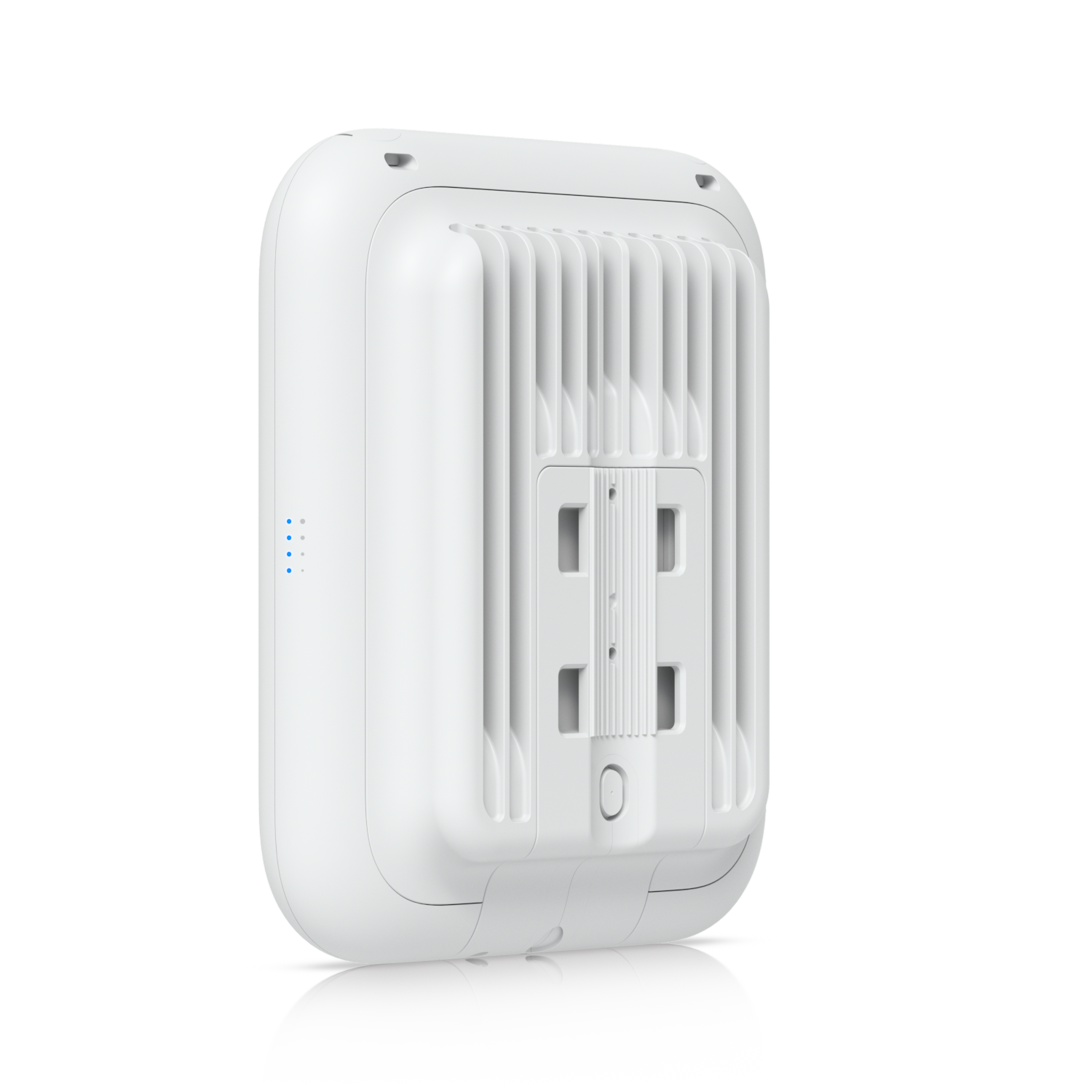

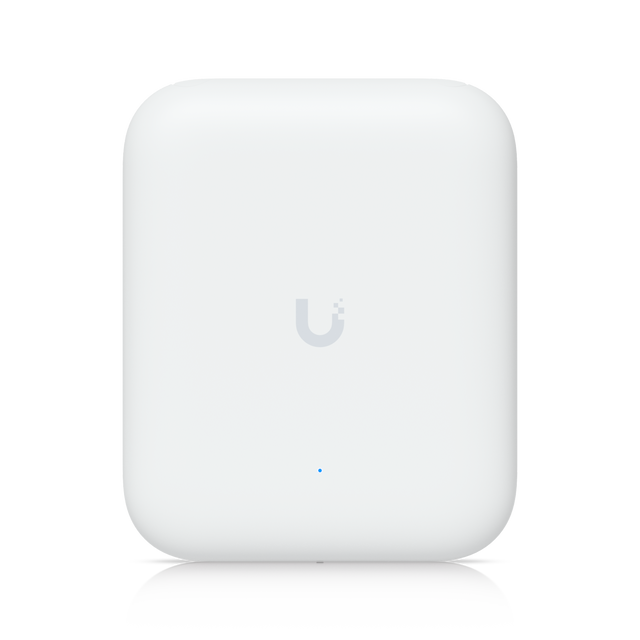

Ubiquiti Access Point U7 Outdoor
Ubiquiti | SKU:
U7-OUTDOOR-US
Regular price
$199.00
Unit price
Ubiquiti Access Point U7 Outdoor is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
We ship using the Common Carriers in the USA.
Ubiquiti Access Point U7 Outdoor
Regular price
$199.00
Unit price
Ubiquiti Access Point U7 Outdoor is backordered and will ship as soon as it is back in stock.
Description
Description
All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
Key Features
- WiFi 7
- 4 spatial streams
- 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna

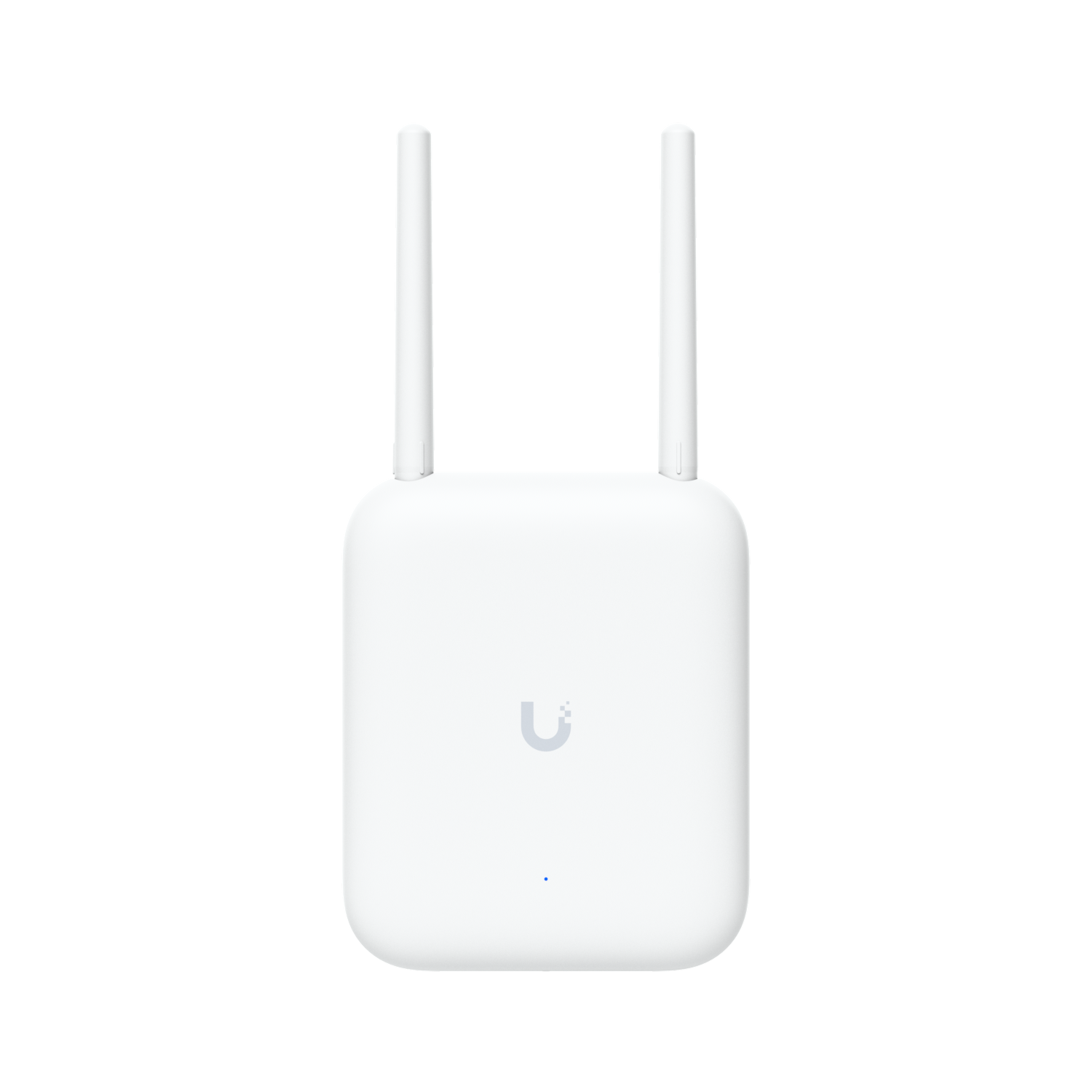

- Software-switchable from internal directional to included external omni antennas
- 250+ connected devices
- Powered using PoE+
- 2.5 GbE uplink

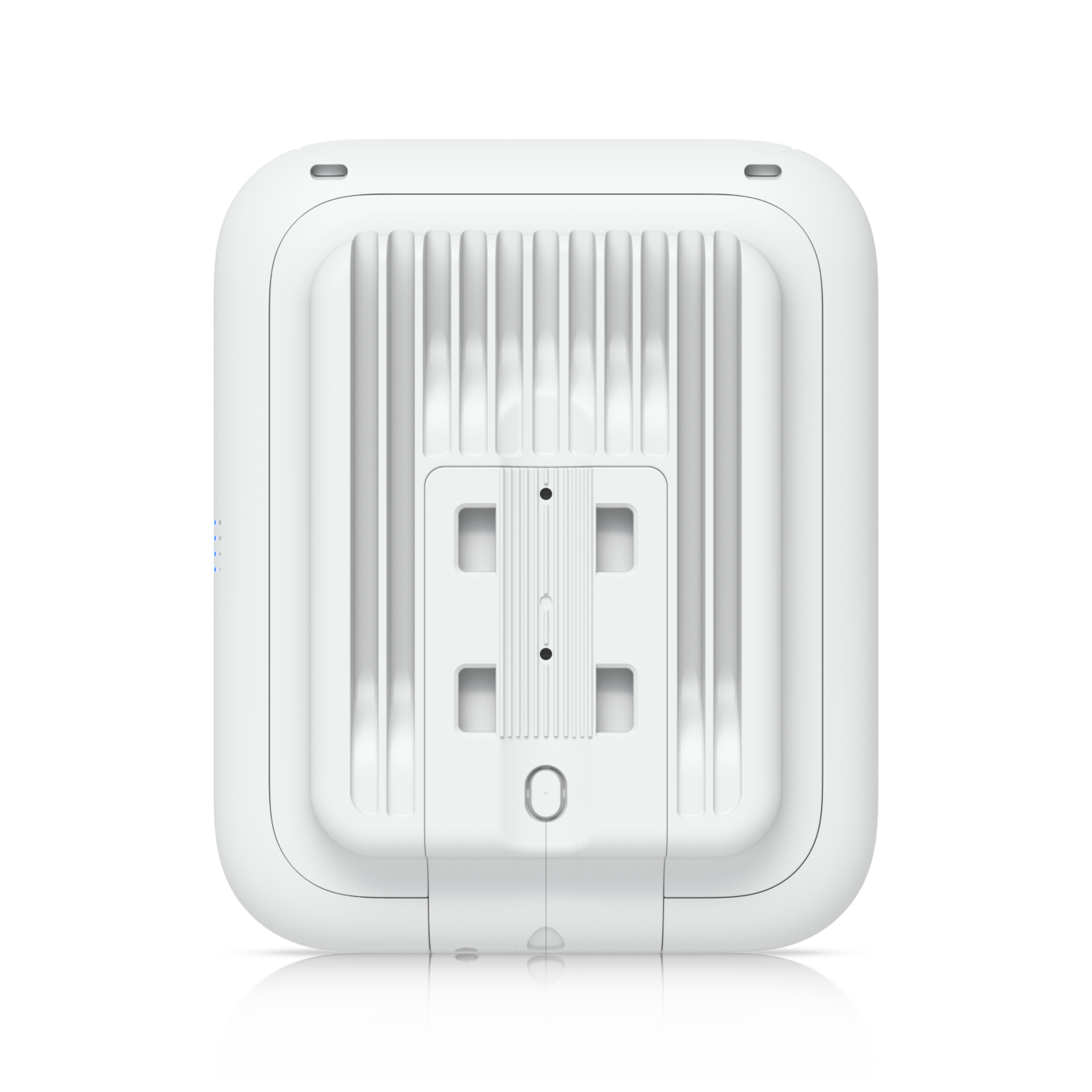

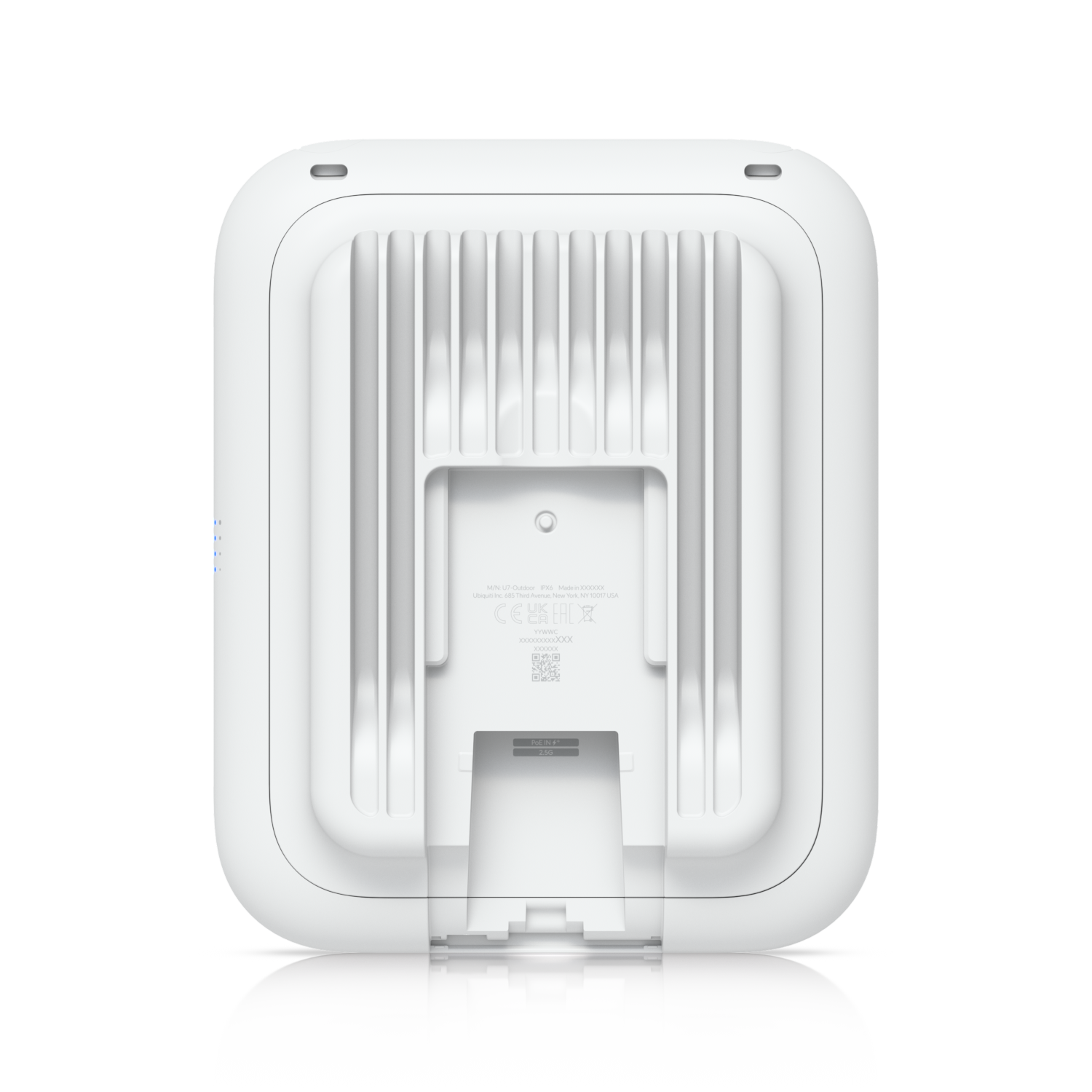

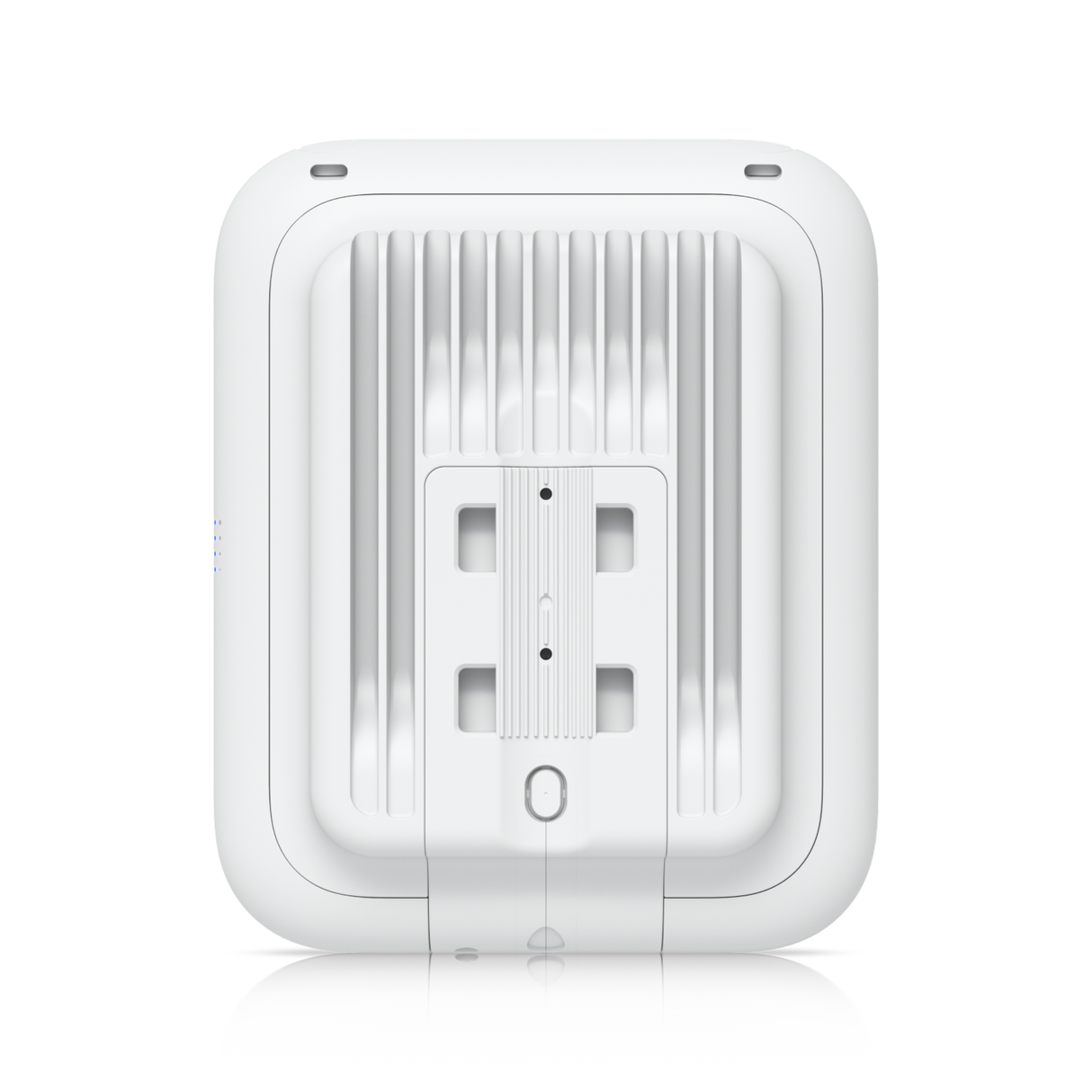

- Versatile wall and pole mounting
- Weatherproof (outdoor exposed)
Overview
Dimensions
170 x 208 x 54.5 mm
(6.7 x 8.2 x 2.1")
WiFi Standard
WiFi 7
Spatial Streams
4
Coverage Area
465 m² (5,000 ft²)
Max. Client Count
250+
Uplink
2.5 GbE
Mounting
Wall, Pole
(Mounts Included)
Weatherproofing
IPX6
Power Method
PoE+
Performance
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
Directional internal: 12.5 dBi, 45° x 45°
External omni: 4 dBi, 360° x 30°
2.4 GHz
Directional internal: 8 dBi, 90° x 90°
External omni: 3 dBi, 360° x 30°
Max. TX Power
5 GHz
26 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Captive Hotspot Portal
Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
Hardware
Max. Power Consumption
19W
Supported Voltage Range
42.5–57V DC
Networking Interface

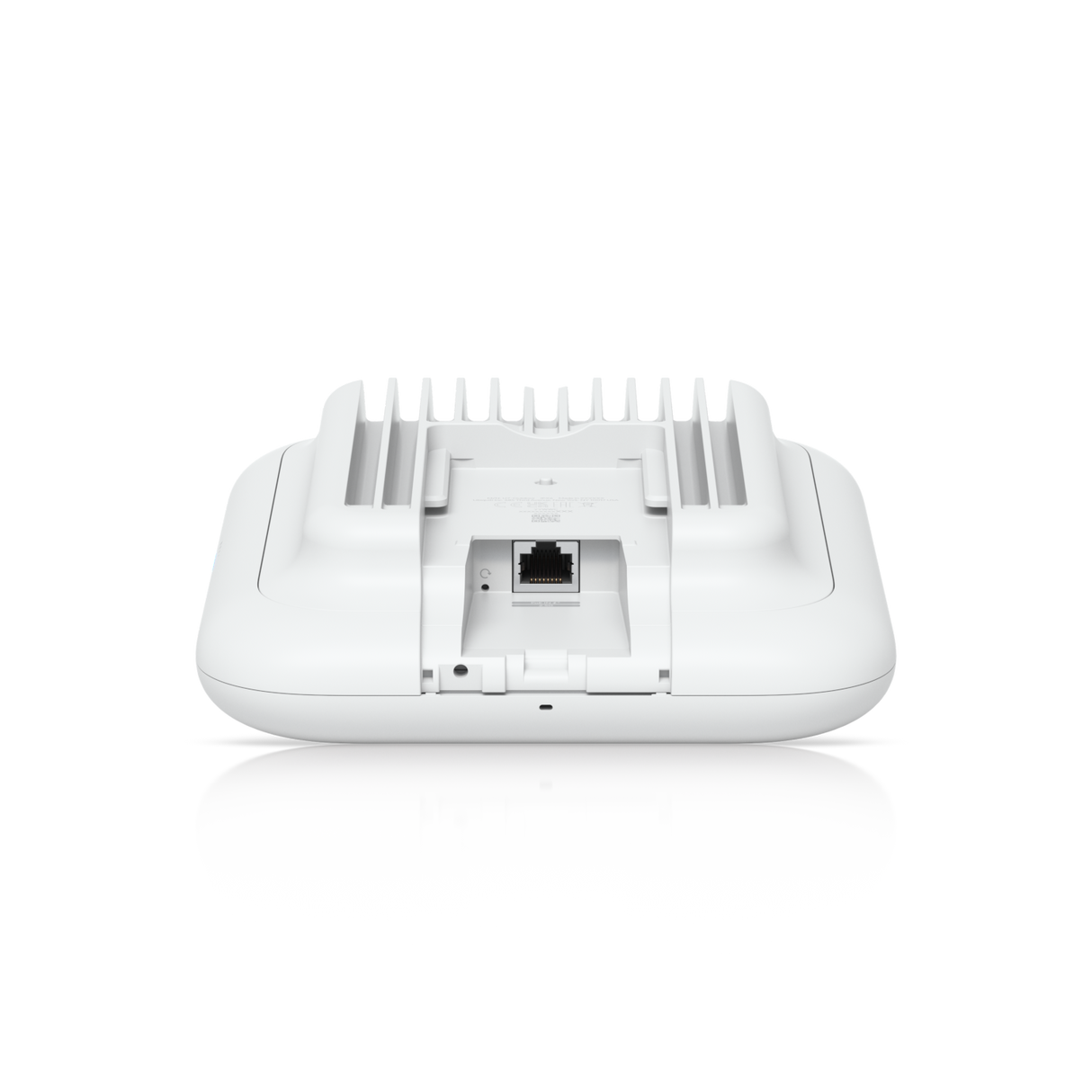

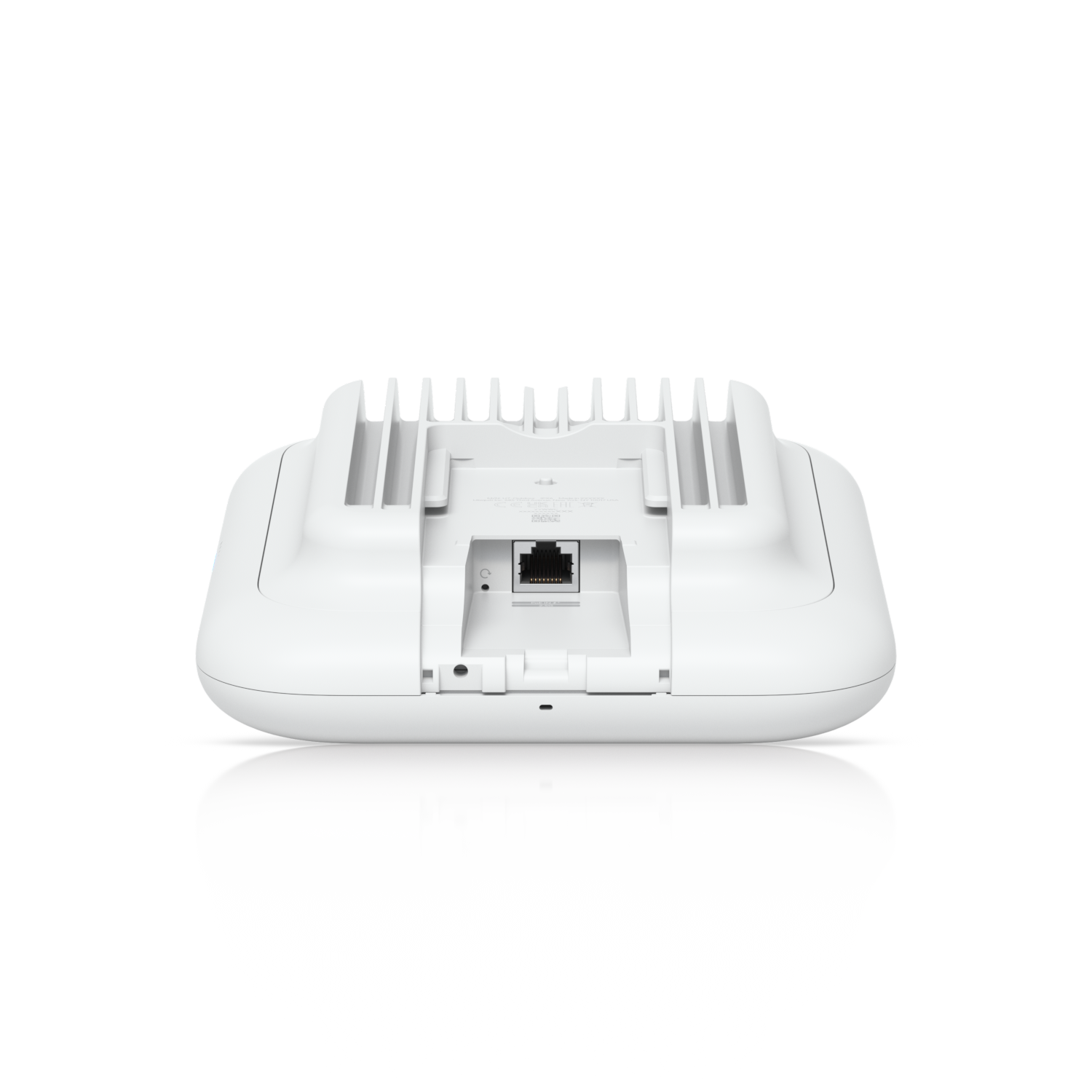

(1) 1/2.5 GbE RJ45 port
Weight
1.2 kg (2.6 lb)
Wind Loading
74.6 N at 200 km/h (16.8 lbf at 125 mph)
Pole Mount Diameter
1–2.36" (25–60 mm)
Antennas
(1) Directional internal antenna
(2) External omni antennas

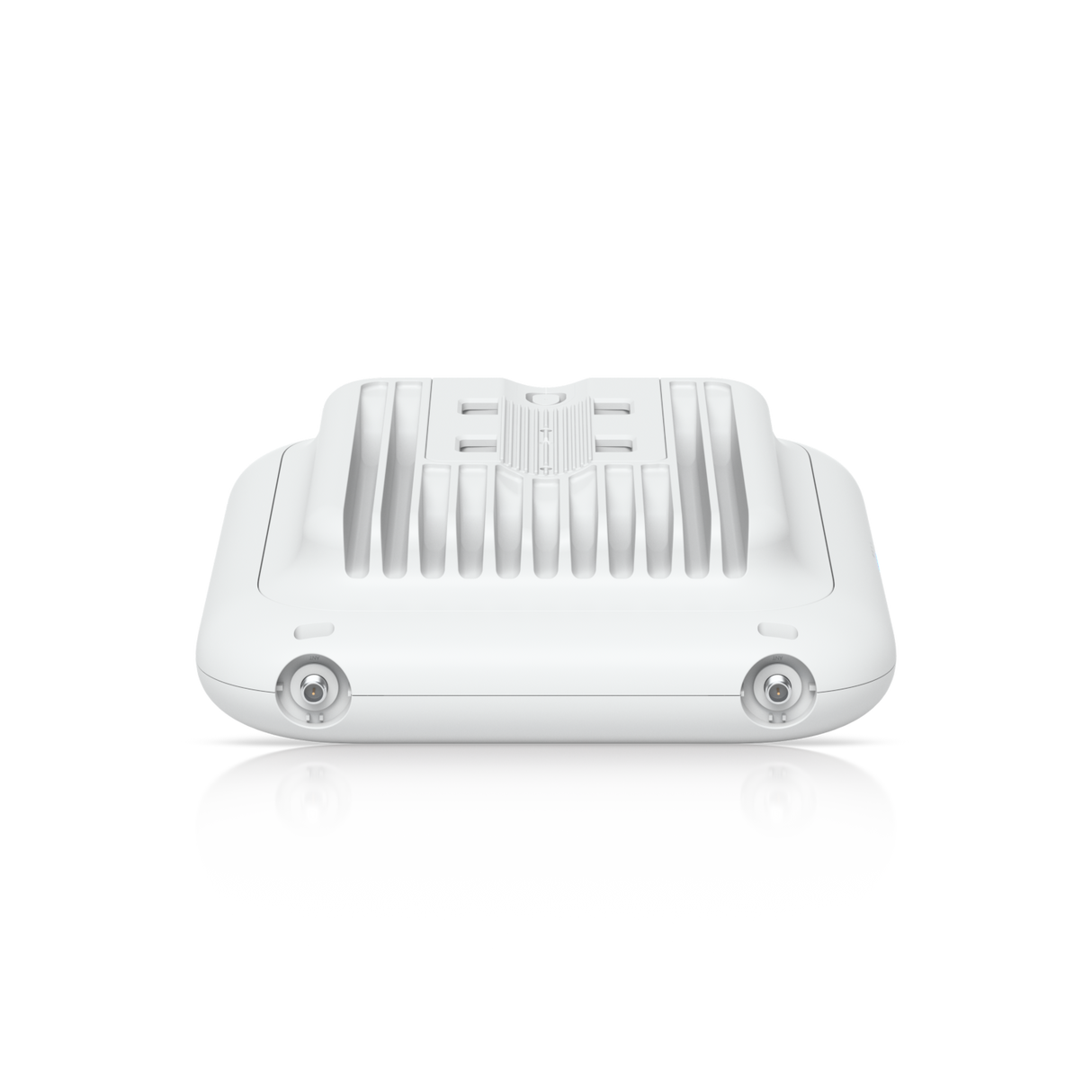

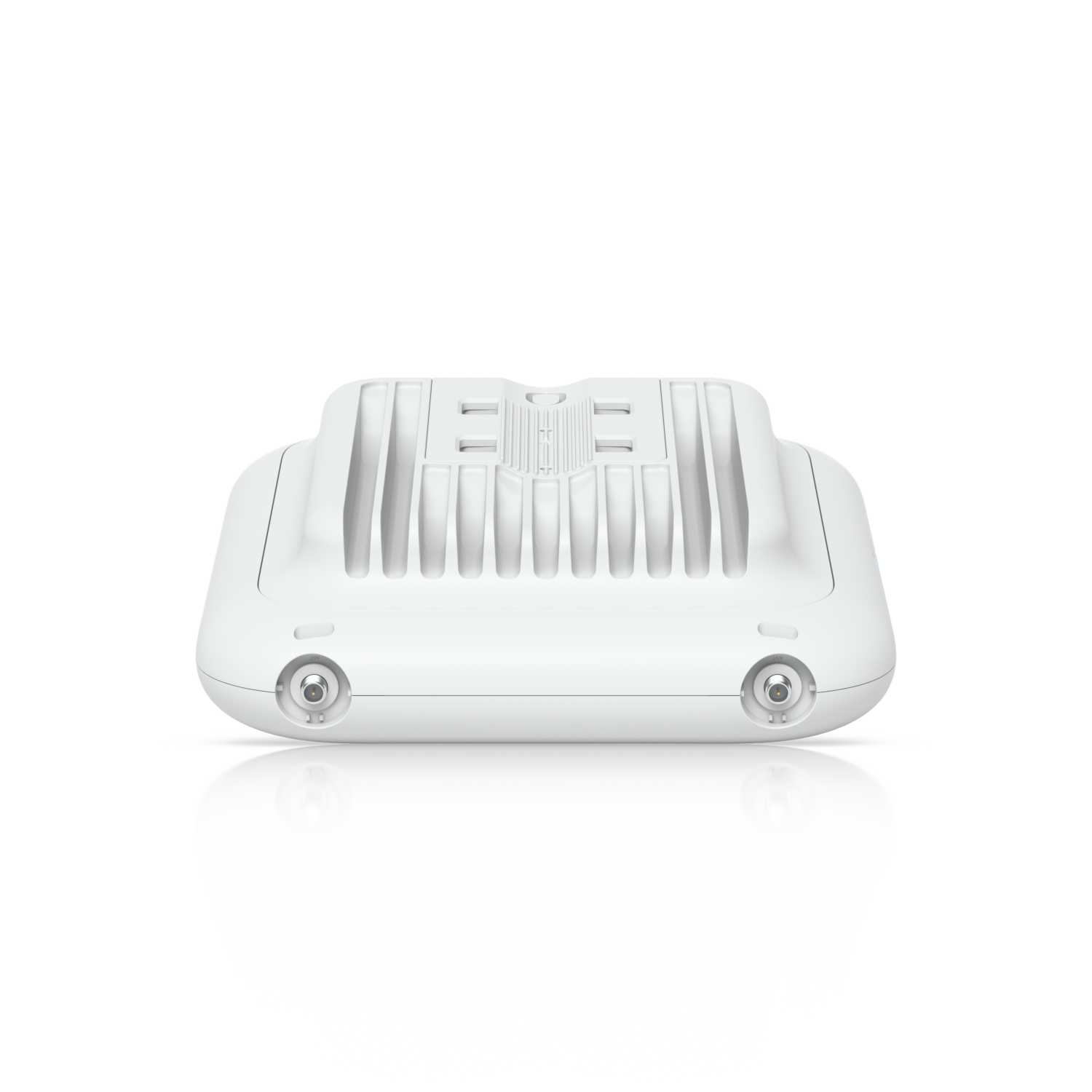

(2) RP-SMA connectors for external antenna
Antenna beamwidth
5 GHz
45°
2.4 GHz
90°
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Polycarbonate, SGCC steel

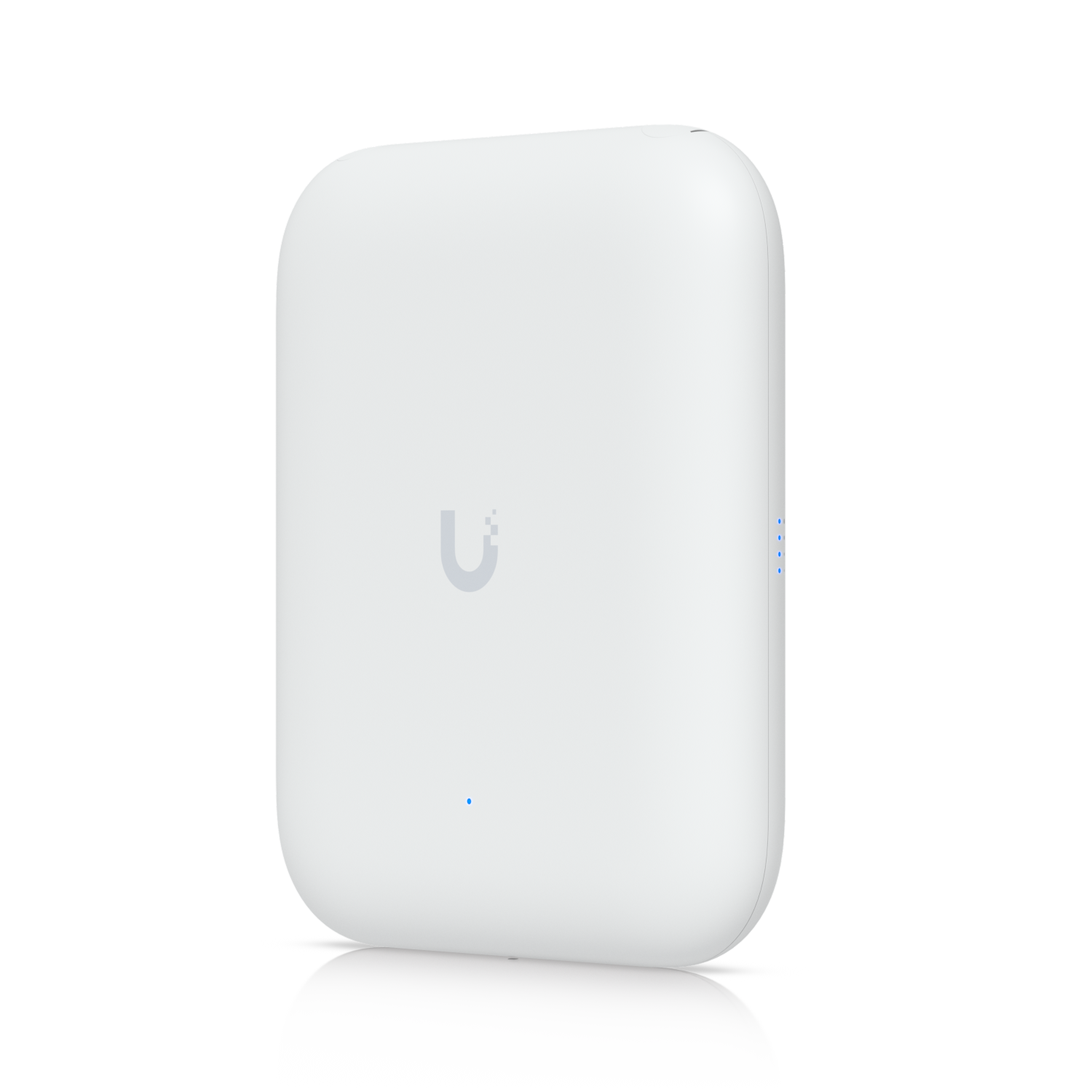

LEDs
System
(1) Power: White/Blue
(1) System: White/Blue

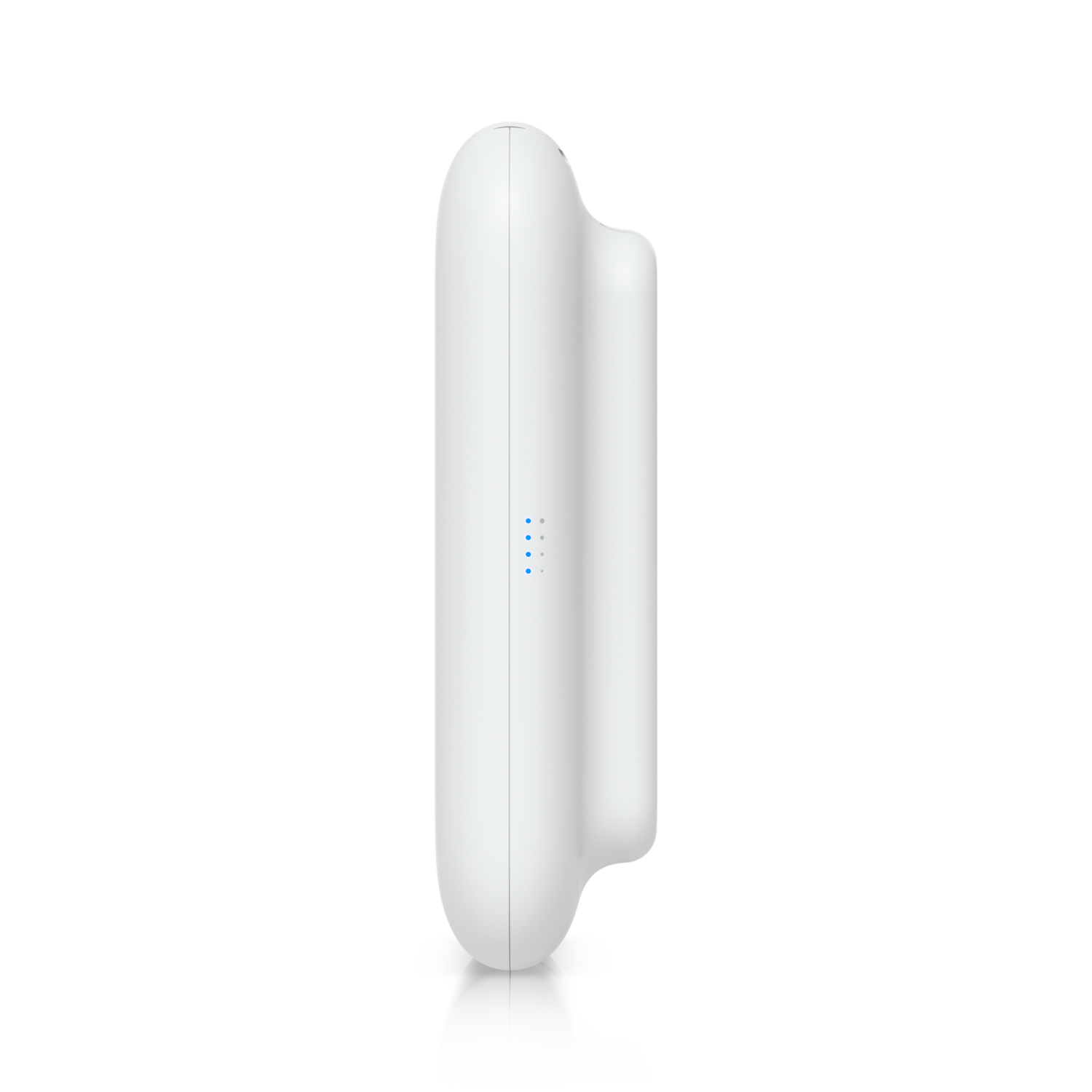

(4) Mesh Signal: Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
NDAA Compliant
Certifications
CE, FCC, IC, Anatel: 08999-24-08356
Operating Frequency
US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
Worldwide:
2400 - 2483.5 MHz
5150 - 5850 MHz
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 8.2.93 and later
