Ubiquiti Access Point U7 Long-Range

Ubiquiti  |  SKU: U7-LR-US
$159.00

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

We ship using the Common Carriers in the USA.

Have Questions? Contact Us

Description

Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.

Access Point U7 Long-Range overview
Access Point U7 Long-Range overview
Access Point U7 Long-Range overview

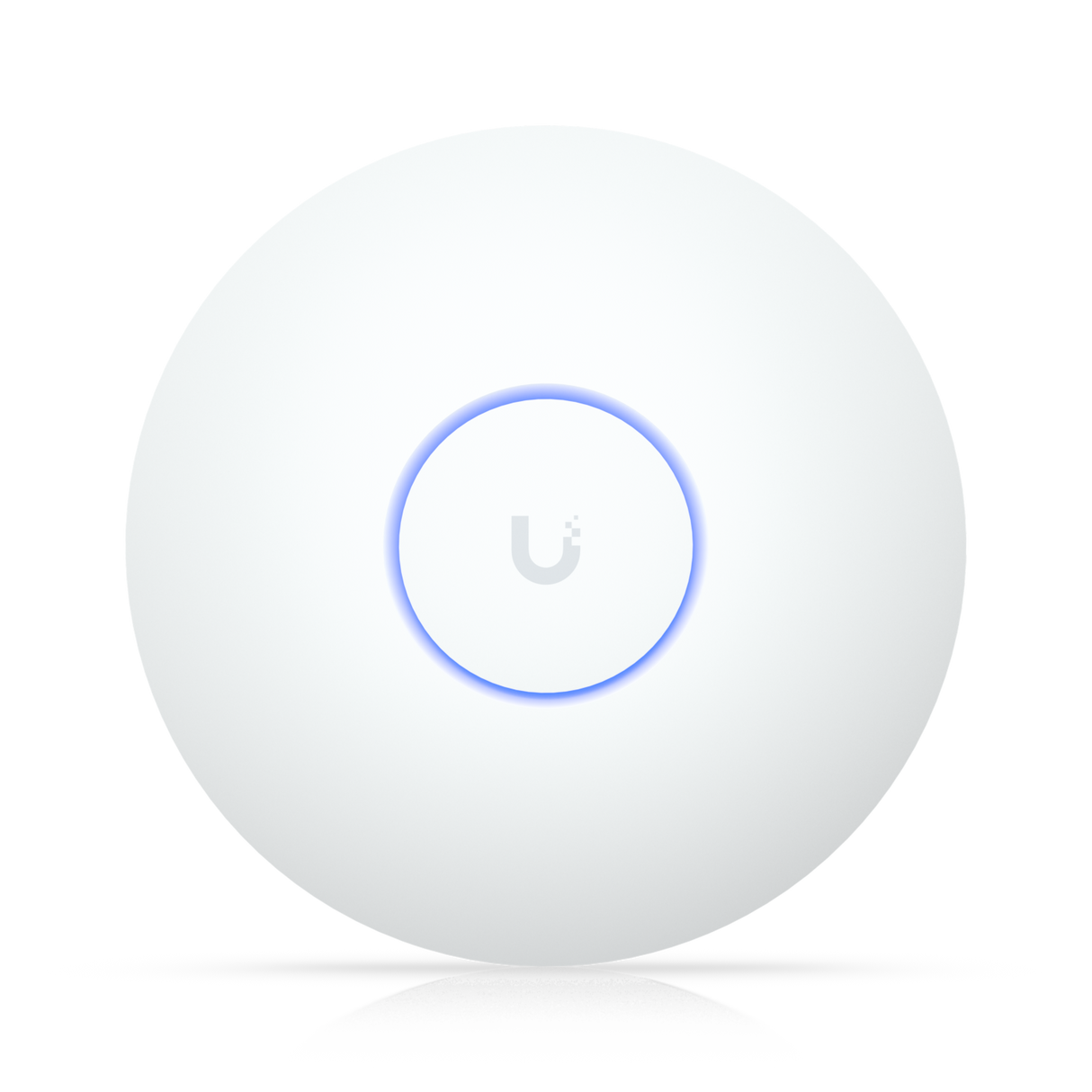

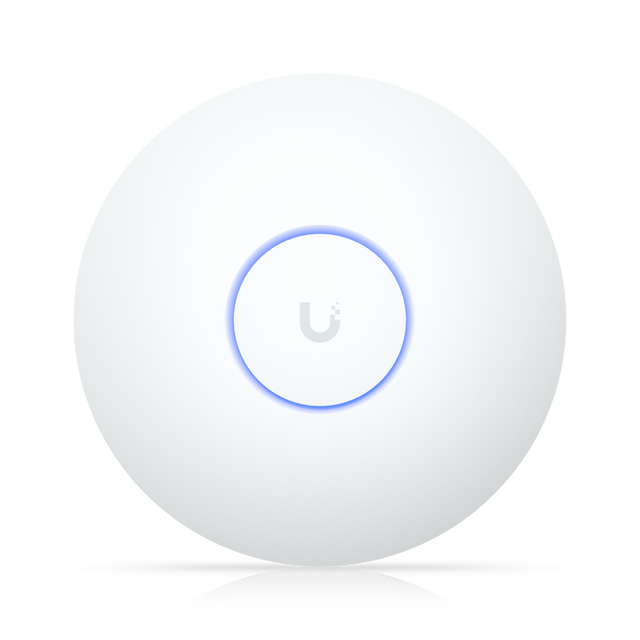

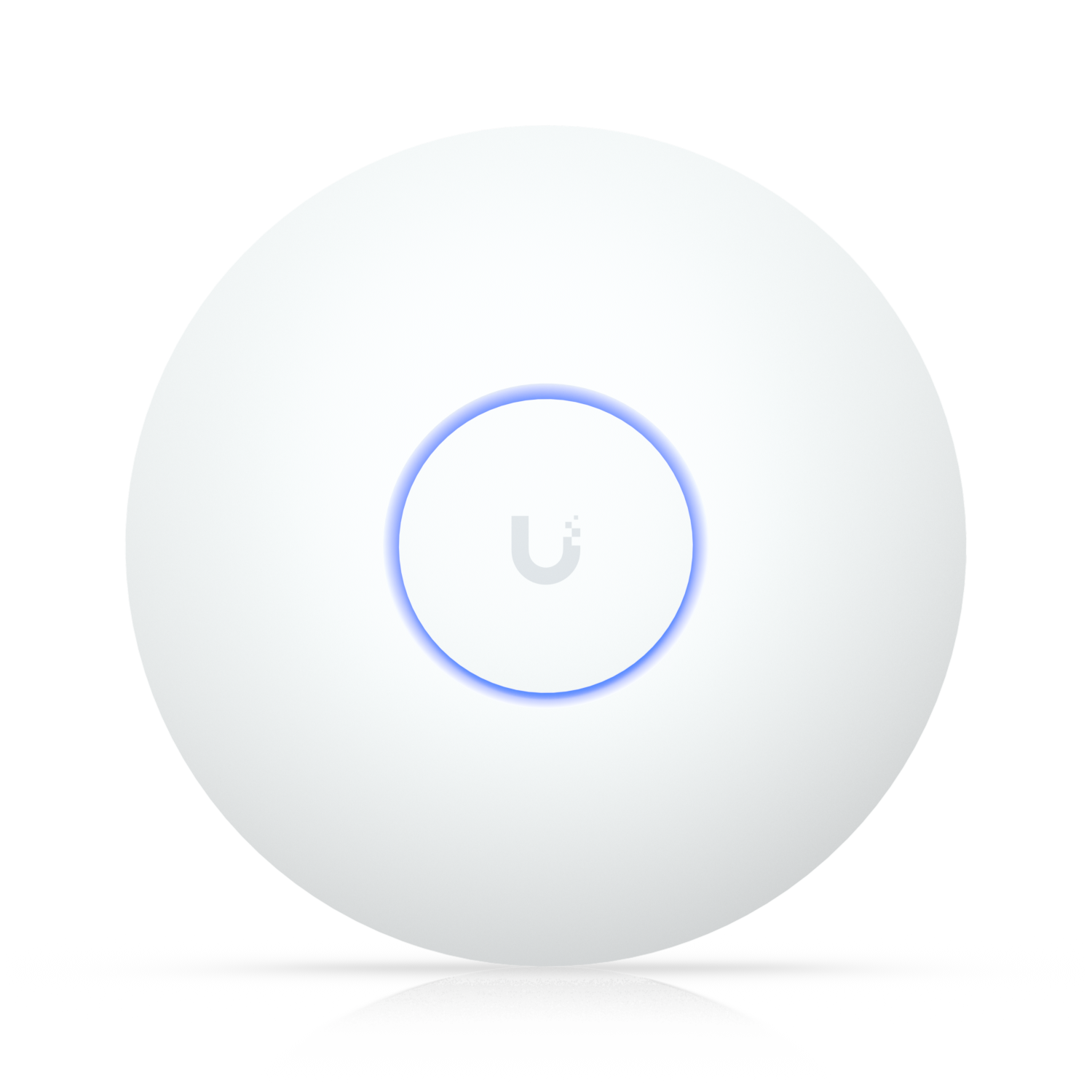

Access Point U7 Long-Range
Access Point U7 Long-Range
Access Point U7 Long-Range
Access Point U7 Long-Range
Overview
Dimensions
⌀175.7 x 43 mm (⌀6.9 x 1.7")
WiFi Standard
WiFi 7
Spatial Streams
5
Coverage Area
160 m² (1,750 ft²)
Max. Client Count
300+
Uplink
2.5 GbE
Mounting
Ceiling, Wall (Plastic Mounting Plate included)
Power Method
PoE
Performance
MIMO
5 GHz
3 x 3 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW160)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
6 dBi
2.4 GHz
4 dBi
Max. TX Power
5 GHz
27 dBm
2.4 GHz
26 dBm
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)
Features
Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Captive Hotspot Portal
Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
Hardware
Max. Power Consumption
14W
Supported Voltage Range
42.5–57V DC
Networking Interface
(1) 2.5 GbE RJ45 port
Weight
448 g (15.8 oz)
Management
Ethernet
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Polycarbonate, galvanized steel (SGCC)
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
NDAA Compliant
Certifications
CE, FCC, IC, SRRC, Anatel: 04071-25-08356
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 9.1.120 and later
Mobile App
iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
In the box
